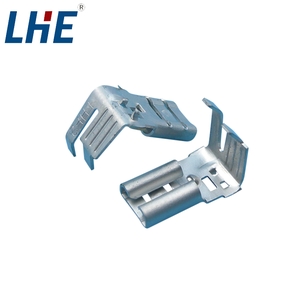

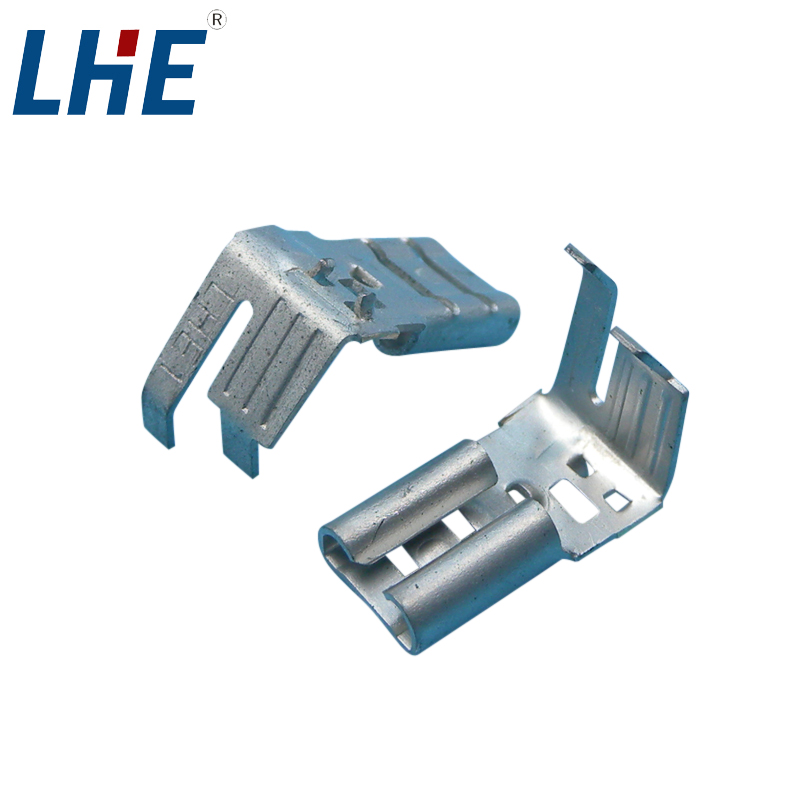

D480Q Faston 187 flag terminals provide a right-angle cable exit with a 4.8 mm quick-disconnect tab. Choose the 0.5 or 0.8 mm tab thickness for the mating interface.
| Product role | Flag crimp terminal |
|---|---|
| Faston interface | 187; 4.8 mm tab |
| Tab thickness | 0.5 or 0.8 mm by model |
| Wire range | 22–18 AWG |
| Contact material and finish | Brass, tin plating |
| Packaging | Reel |
| UL file | E364711 |
