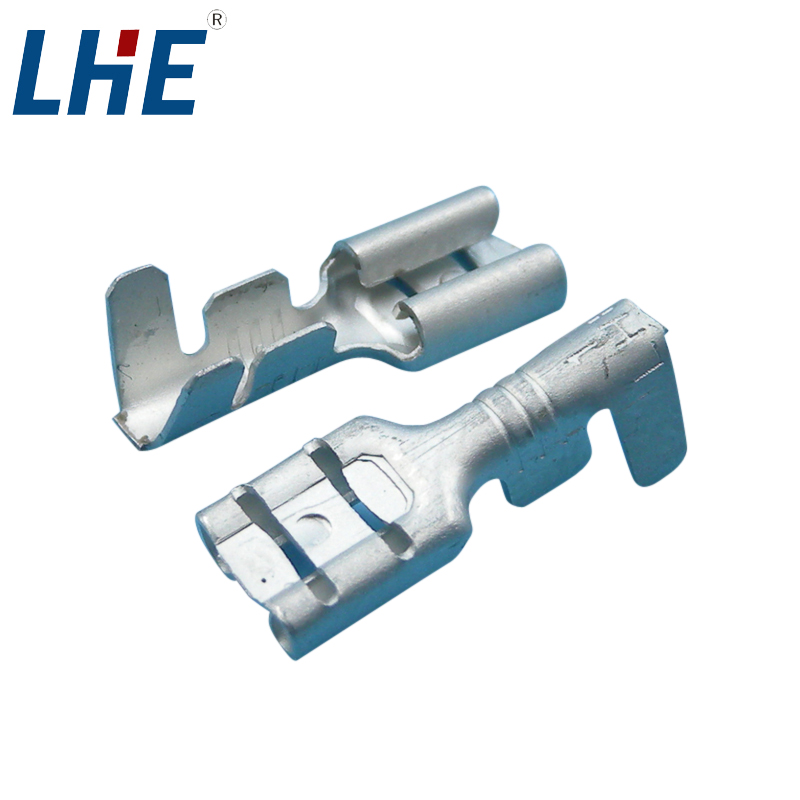

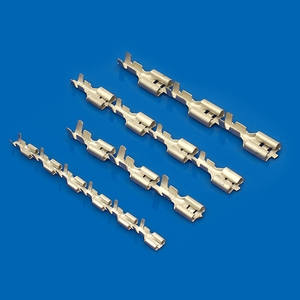

D480N Faston 187 terminals provide 4.8 mm quick-disconnect tabs for crimped cable assemblies. Select the 0.5 or 0.8 mm tab version and terminal reference for the required conductor.
| Product role | Crimp terminal |
|---|---|
| Faston interface | 187; 4.8 mm tab |
| Tab thickness | 0.5 or 0.8 mm by model |
| Wire range | 24–16 AWG overall |
| Maximum current | 10 A |
| Maximum voltage | 250 VAC/DC |
| Contact material and finish | Brass, tin plating |
| Operating temperature | -25 °C to 85 °C |
| Packaging | Reel |
| UL file | E364711 |
