CTM70 Multifunction LED Signal Towers with Adjustable Supply

Description

CTM70 multifunction signal towers combine a nominal 70mm light body with selectable flashing/steady operation and an adjustable supply configuration. Choose one to five color layers, a silent version or intermittent beep or police-siren sound, and a disc, side-nut or square-folding mount.

SMD LEDs illuminate prism-pattern PC lenses above an ABS base and heat-resistant ABS reflector. The typical life reference above 50,000 hours applies to high-brightness LED components rather than the complete assembly. Color combinations can be specified beyond the five common stacks below.

Ordering Options

FieldCodeSelection
SeriesCTMMultifunction multilayer warning light
Size70Nominal Ø70mm body
Layer colorsRRed; one layer
RGRed / green; two layers
RYGRed / yellow / green; three layers
RYGBRed / yellow / green / blue; four layers
RYGBWRed / yellow / green / blue / white; five layers
SoundOmittedNo sound
AIntermittent beep
CPolice-siren sound
Light modeSSelectable flashing / steady; factory setting is steady
SupplyDAdjustable configuration for 12VAC/DC, 24VAC/DC or 220VAC
FunctionOmittedRegular version; IP43 single-light protection
FIP65 version
KAnti-interference version
BaseADisc mount; default mounting style
BSide-nut mount
C90° square folding mount
Rod10100mm
15150mm
26260mm
Other numberCustom length for the mounting configuration
Cable lengthL060.6m
L1–L5L1 indicates1m; length is not limited to L5
ConnectionOmittedFree cable ends
M…M-type connector; specify its complete configuration
D…DT-type connector; specify its complete configuration
A…AMP-type connector; specify its complete configuration
S…SM-type connector; specify its complete configuration
Cable materialOmittedPVC
UPUR sheathed cable
VPShielded PVC sheathed cable
UPShielded PUR sheathed cable

The D supply configuration covers the three stated supply settings. Configure the unit for the intended supply before energizing it. CTM70-RYG/CSD-C10L06 selects three red/yellow/green layers, police-siren sound, selectable light, adjustable supply, a square-folding base, 100mm rod and 0.6m cable.

CTM70 ordering-code layout
Twelve ordering fields identify the color stack, sound, operation, supply, function, mount and cable.

Common Model Configurations

All 45 models below use S selectable flashing/steady light, initially steady, D adjustable supply for 12VAC/DC, 24VAC/DC or 220VAC, and a 0.6m cable. SD is silent, ASD adds an intermittent beep, and CSD adds police-siren sound.

Silent modelIntermittent-beep modelPolice-siren modelColors / layersMountRod
CTM70-R/SD-A10L06CTM70-R/ASD-A10L06CTM70-R/CSD-A10L06R / 1Disc100mm
CTM70-R/SD-B26L06CTM70-R/ASD-B26L06CTM70-R/CSD-B26L06Side nut260mm
CTM70-R/SD-C10L06CTM70-R/ASD-C10L06CTM70-R/CSD-C10L06Square folding100mm
CTM70-RG/SD-A10L06CTM70-RG/ASD-A10L06CTM70-RG/CSD-A10L06RG / 2Disc100mm
CTM70-RG/SD-B26L06CTM70-RG/ASD-B26L06CTM70-RG/CSD-B26L06Side nut260mm
CTM70-RG/SD-C10L06CTM70-RG/ASD-C10L06CTM70-RG/CSD-C10L06Square folding100mm
CTM70-RYG/SD-A10L06CTM70-RYG/ASD-A10L06CTM70-RYG/CSD-A10L06RYG / 3Disc100mm
CTM70-RYG/SD-B26L06CTM70-RYG/ASD-B26L06CTM70-RYG/CSD-B26L06Side nut260mm
CTM70-RYG/SD-C10L06CTM70-RYG/ASD-C10L06CTM70-RYG/CSD-C10L06Square folding100mm
CTM70-RYGB/SD-A10L06CTM70-RYGB/ASD-A10L06CTM70-RYGB/CSD-A10L06RYGB / 4Disc100mm
CTM70-RYGB/SD-B26L06CTM70-RYGB/ASD-B26L06CTM70-RYGB/CSD-B26L06Side nut260mm
CTM70-RYGB/SD-C10L06CTM70-RYGB/ASD-C10L06CTM70-RYGB/CSD-C10L06Square folding100mm
CTM70-RYGBW/SD-A10L06CTM70-RYGBW/ASD-A10L06CTM70-RYGBW/CSD-A10L06RYGBW / 5Disc100mm
CTM70-RYGBW/SD-B26L06CTM70-RYGBW/ASD-B26L06CTM70-RYGBW/CSD-B26L06Side nut260mm
CTM70-RYGBW/SD-C10L06CTM70-RYGBW/ASD-C10L06CTM70-RYGBW/CSD-C10L06Square folding100mm

Color-Channel Electrical References

Color12VDC24VDC220VAC
Maximum currentRounded DC powerMaximum currentRounded DC powerMaximum currentPower
Red8mA0.10W37mA0.89W50mA0.49W
Yellow53mA0.55W
Green5mA0.06W32mA0.77W0.65W
Blue
White

DC power references are rounded calculations from nominal voltage and maximum channel current. AC current and power are separate specifications. Channel figures do not establish the total consumption of every stack and sound combination.

LED bead colorBead voltage
Red1.8–2.2V
Yellow
Green2.8–3.4V
Blue
White

Bead voltages describe LED components, separately from the complete tower's supply.

Operating Characteristics

ParameterSpecification
Maximum sound levelCTM70-A intermittent-beep version: 95dB; test distance unspecified
Flashing frequency55–65 flashes/min; nominal60 flashes/min
LensPC
BaseABS
ReflectorHeat-resistant ABS
Cord specificationUL1007
Ambient temperature−30°C to +50°C
Relative humidity≤85%
ProtectionRegular single light: IP43; F option: IP65
Altitude≤2000m
Compliance referenceStandardDocument reference
CEEN61058Document number not specified

Stack and Bracket Dimensions

Layers / common colorsLight-body heightNominal diameter
1 / R120mm70mm
2 / RG174mm
3 / RYG228mm
4 / RYGB282mm
5 / RYGBW336mm

Light-body heights exclude the rod and mounting base. The following drawings show each layer count with all three mounting arrangements; dimensions are in mm.

CTM70 one-layer mounting outlines
One-layer side-nut, disc and square-folding configurations.

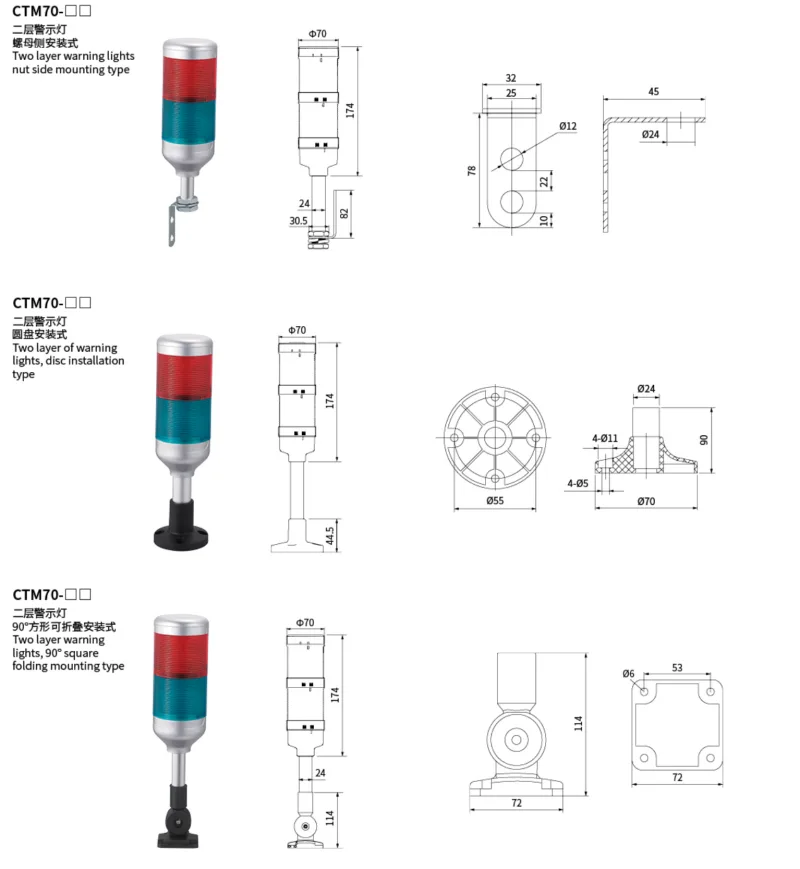

CTM70 two-layer mounting outlines
Two-layer light with the three mounting arrangements.
CTM70 three-layer mounting outlines
Three-layer light with the three mounting arrangements.
CTM70 four-layer mounting outlines
Four-layer light with the three mounting arrangements.
CTM70 five-layer mounting outlines
Five-layer light with the three mounting arrangements.
Mount / bracketDimensions in mm
A / CTL70-MA discBaseØ70; mounting circleØ55; four Ø5 holes withØ11 counterbores; rodØ24; full bracket section90; installed base projection44.5
B / CTL70-MB side nutBracket32×78, inner width25; two Ø12 holes with22 center spacing and10 lower-edge reference; projection45; rod openingØ24; illustrated installed extension82
C / CTL70-MC square foldingBase72×72; four Ø6 holes on53×53 centers; height114; rodØ24

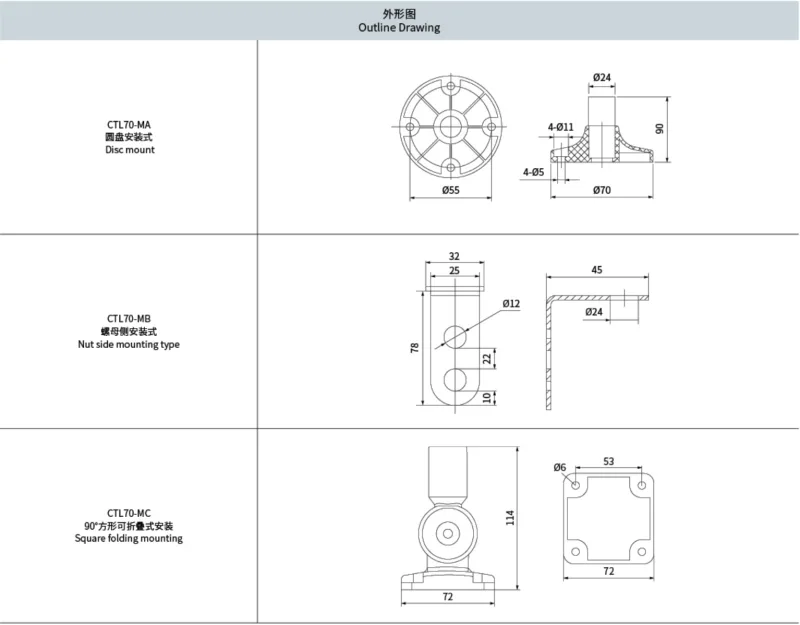

CTL70-MA MB MC mounting brackets for CTM70
Disc, side-nut and square-folding bracket dimensions and fixing patterns.

Wiring and Light Selection

WireFunction in the five-layer wiring arrangement
R / redLayer1
Y / yellowLayer2
G / greenLayer3
B / blueLayer4
W / whiteLayer5
P / purpleBuzzer
GY / grayCommon line

External contacts control the light and sound circuits. Use the supply and polarity arrangement for the configured unit. An open mode jumper selects flashing; fitting the link selects steady light.

CTM70 layer and buzzer wiring with light-mode jumper
Individual light circuits, buzzer, common line and flashing/steady jumper positions.

Assembly and Installation

Turn a lens module counterclockwise until its marks align, then lift it off. For assembly, align the marks, press downward and turn clockwise until the triangular mark reaches the index.

CTM70 lens-module release and locking directions
Lens alignment, counterclockwise release and clockwise locking.

Keep the cable outlet from facing upward. Regular IP43 configurations require upright vertical mounting because their water protection is below IPX4. Use the fixing pattern for the selected bracket and tighten the mounting hardware.

CTM70 mounting orientation and inverted-installation restriction
Orientation reference; regular IP43 versions require upright vertical installation.

Disconnect power before installation, wiring, operation on the assembly or maintenance. Check the selected configuration and rated supply, secure the installation, exclude conductive dust and liquid, and protect wires against impact and abrasion. Seek qualified service for complex faults and high-voltage components.

These lights are intended for industrial signaling. High-reliability infrastructure, personal-safety functions, harsh environments, fire or explosion hazards, military uses and aerospace projects require a specifically designed and expressly confirmed configuration.
