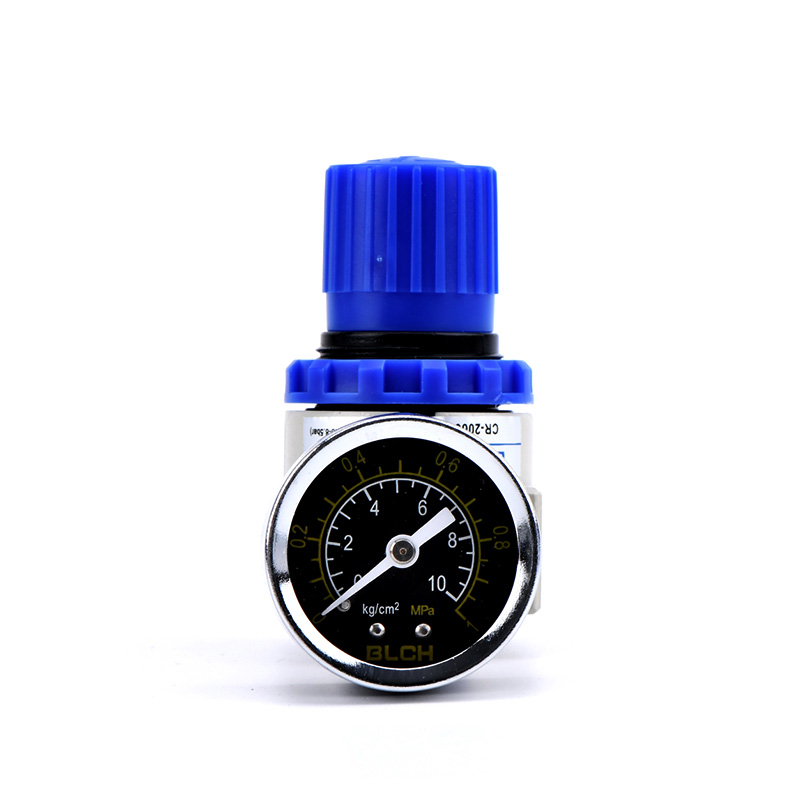

CR2000 is a manually adjusted air pressure regulator with a 1/4″ main connection and a separate 1/8″ pressure gauge port. Its aluminum alloy body supports a working pressure range of 0.15-0.85MPa and a maximum flow of 650L/min (ANR). The front-mounted gauge provides a local pressure indication.
| Parameter | CR2000 |
|---|---|
| Main port Rc(G) | 1/4″ |
| Pressure gauge port | 1/8″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Body material | Aluminum alloy |

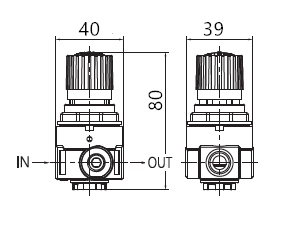

The regulator outline is 40mm wide at the front, 39mm in the side view and 80mm high. Follow the IN and OUT markings when connecting the air circuit.
The attached Pneumatic Components Catalogue includes CR2000 regulators and related air preparation components.
