The Counting Relay JDM9 Series covers 72×72mm panel counters for both simple up-counting and reversible counting. JDM9-4 and JDM9-4A are 4-digit counters for contact or PNP sensor input, while JDM9-6 extends the range to 6 digits with forward/backward counting and configurable relay output modes.

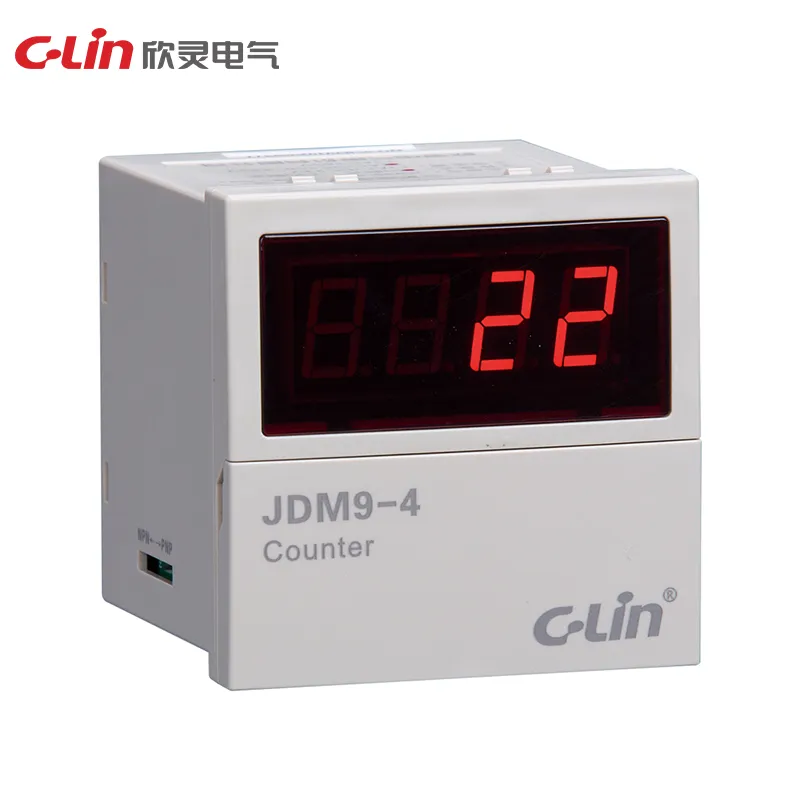

JDM9-4
| Working power supply | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
|---|
| Working mode | positive counting, 4-digit LED display |
|---|
| Counting speed | 100 times/second |
|---|
| Counting range | 1-9999 |
|---|
| Input signal | contact signal, PNP normally open photoelectric/proximity switch |
|---|
| Output mode | N or C standard |
|---|
| Power failure memory | 10 years |
|---|
| Contact form | a set of normally open and normally closed contacts |
|---|
| Contact capacity | 3A AC250V (resistive) |
|---|
| Dimensions | 72×72×81mm |
|---|
| Opening size | 68×68mm |
|---|
| Installation method | panel type |
|---|
| Rated working voltage Ue/rated working current Ie | AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|
| Operating power | AC/DC 24V;AC220V;AC/DC 100-240V;AC380V |
|---|
| Operating Mode | Positive counting / Positive count, 4-digit LED display |
|---|
| Counting speed | 10, 30, 100, 300 counts/sec. / 100 counts / sec |
|---|
| Counting Range | 1-9999 |
|---|
| Input signal | Contact signals, normally open photoelectric / proximity switches / Contact signal, PNP normally open photoelectric/proximity switches |
|---|
| Output mode | N 、 C |
|---|
| Temperature range | -5°-40°C |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5KV |
|---|
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|
| Dimensions | 72×72×78mm / 72×72×81mm |
|---|
| Opening dimensions | 68×68mm / 68×68mm |
|---|
| Installation | panel mounted |
|---|

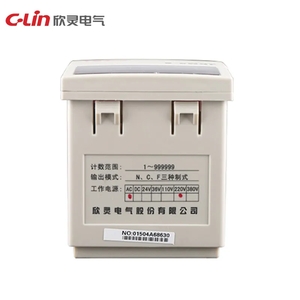

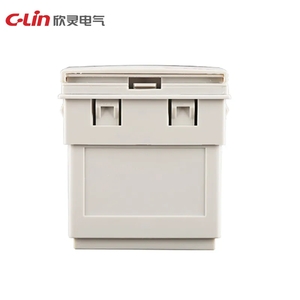

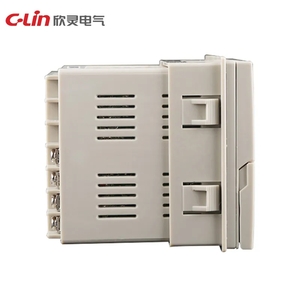

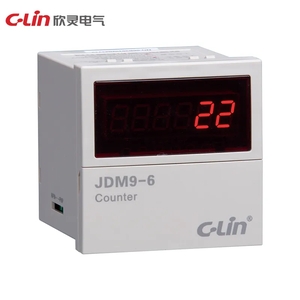

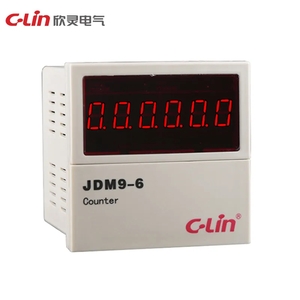

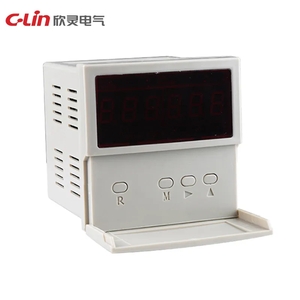

JDM9-6
| Working power supply | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
|---|
| Working mode | forward counting, backward counting |
|---|
| Counting speed | high frequency 1000 times/second; low frequency 30 times/second |
|---|
| Counting range | (1-999999)×1,×10,×100 times |
|---|
| Input signal | contact signal, PNP normally open photoelectric/proximity switch |
|---|
| Output mode | N, C, F, X, R multi-standard |
|---|
| Power failure memory | 10 years |
|---|
| Contact form | a group of normally open and normally closed contacts |
|---|
| Contact capacity | 3A AC250V (resistive) |
|---|
| Dimensions | 72×72×81mm |
|---|
| Opening size | 68×68mm |
|---|
| Installation method | panel type |
|---|
| Remarks | T standard needs to be customized |
|---|
| Rated working voltage Ue/rated working current Ie | AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|
| Operating power | AC/DC 24V;AC220V;AC/DC 100-240V;AC380V |
|---|
| Operating Mode | Positive counting, reverse counting |
|---|
| Counting speed | High frequency 1000 times/second; Low frequency 30 times/second |
|---|
| Counting Range | (1-999999)×1、×10、×100 |
|---|
| Input signal | Contact signal, PNP normally open photoelectric/proximity switches |
|---|
| Output mode | N、C、F、X、R |
|---|
| Temperature range | -5°-40°C |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5KV |
|---|
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|
| Opening dimensions | 68×68mm |
|---|
| Installation | panel mounted |
|---|

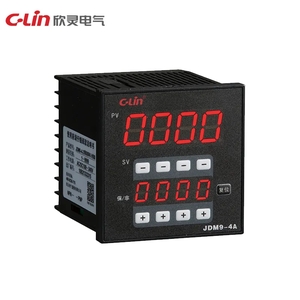

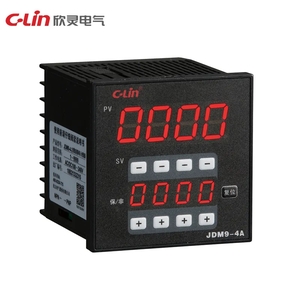

JDM9-4A
| Operating Power Supply | AC/DC 24V; AC220V; AC/DC 100-240V; AC380V |
|---|
| Operating Modes | Up Counting |
|---|
| Counting Speed | 10, 30, 100, 300 times/second |
|---|
| Counting Range | 1-9999 |
|---|
| Input Signal | Contact Signal, Normally Open (NO) Photoelectric / Proximity Switch |
|---|
| Output Mode | N, C Modes |
|---|
| Power Failure Memory | Configurable |
|---|
| Contact Form | 1 Set of Normally Open (NO) & Normally Closed (NC) Contacts; Two sets available upon customization |
|---|
| Dimensions | 72×72×78mm |
|---|
| Panel Cutout Size | 68×68mm |
|---|
| Mounting Method | Panel Mount |
|---|
