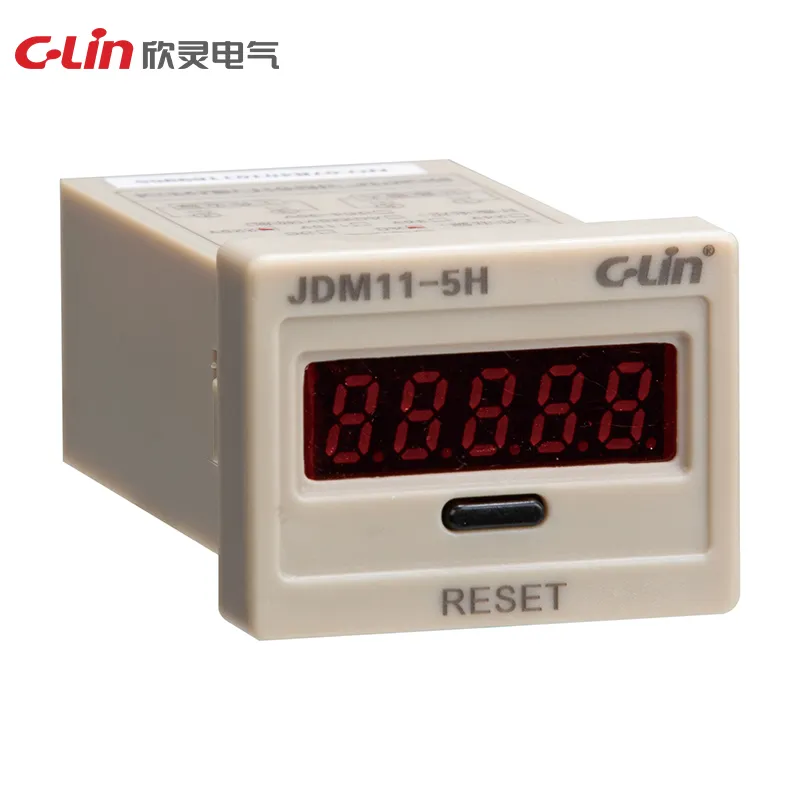

The Counting Relay JDM11 Series is a compact positive counter for simple machine-counting and panel display tasks. JDM11-5H provides a 1-99999 counting range, 30 counts/sec speed, contact or DC4-30V voltage input options, 10-year power-failure memory and a 38.5×27.5mm panel cutout.
| Model / specification | JDM11-5H |
|---|---|
| Power supply | DC24V; AC220V |
| Working mode | positive counting |
| Counting speed | 30 times/second |
| Counting range | 1-99999 |
| Input signal | No voltage type: contact signal |
| Voltage type | voltage signal (DC4-30V) |
| Power failure memory | 10 years |
| Dimensions | 46.5×35×92mm |
| Opening size | 38.5×27.5mm |
| Installation method | panel type |
| Remarks | Contact and voltage signal counting, if you need proximity/photoelectric switch counting, please select HHJ3-A |
| Non-voltage type | contact signal |
| Operating power | DC24V;AC220V |
| Operating Mode | Positive counting |
| Counting speed | 30 counts/sec. |
| Counting Range | 1-99999 |
| Input signal | Non-voltage type: contact signal Voltage type: voltage signal (DC4-30V) |
| Blackout memory | 10 years |
| Temperature range | -5°-40°C |
| Opening dimensions | 38.5×27.5mm |
| Installation | panel mounted |
