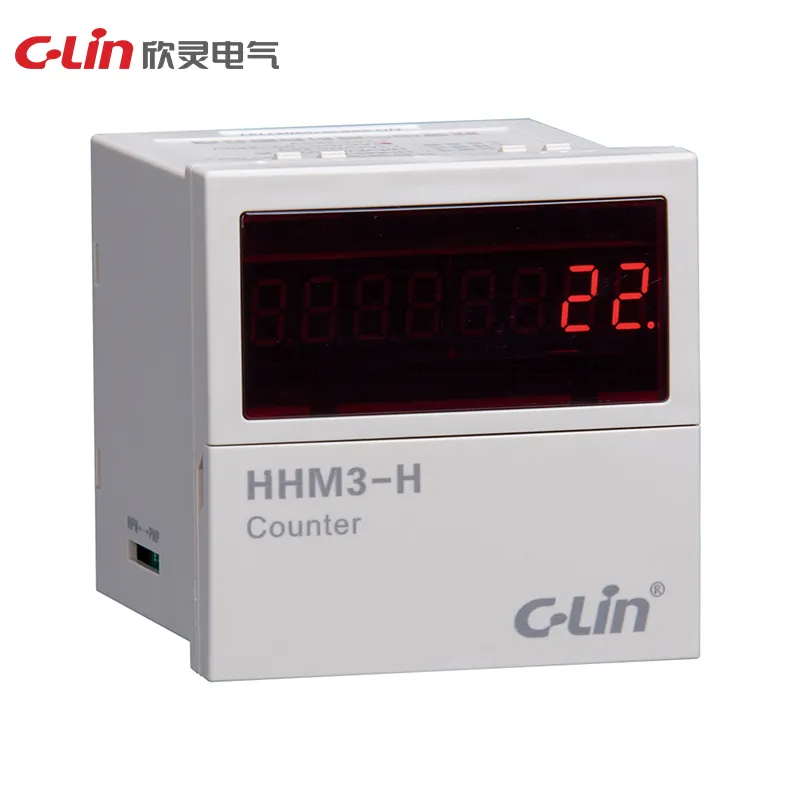

The Counting Relay HHM3 Series is a 72×72mm panel counter for high-speed reversible counting applications. HHM3-H accepts rotary encoder, meter-wheel and PNP sensor inputs, supports B/C reversible counting, reaches 5000 counts/sec in high-speed mode and retains count data for up to 10 years during power loss.
| Model / specification | HHM3-H |
|---|---|
| Working power supply | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
| Working mode | reversible B counting, reversible C counting |
| Counting speed | high frequency 5000 times/second; low frequency 30 times/second |
| Counting range | 1-99999999 |
| Value coefficient | 0.001-9.9999 |
| Input signal | rotary encoder, meter wheel, PNP normally open photoelectric switch/proximity switch |
| Output mode | N, C, F, X, R, T multi-standard |
| Power failure memory | 10 years |
| Contact form | a group of normally open and normally closed contacts, and a group of normally open contacts |
| Dimensions | 72×72×81mm |
| Opening size | 68×68mm |
| Installation method | panel type |
| Remarks | High-speed counting: 5000 times/second, equipped with encoder and meter wheel, the motor can count up in forward rotation and count down in reverse rotation |
| Operating power | AC/DC24V;AC220V;AC/DC100-240V;AC380V |
| Operating Mode | Reversible B Count, Reversible C Count |
| Counting speed | High frequency 5000 times/second; Low frequency 30 times/second |
| Counting Range | 1-99999999 |
| Coefficient of measurement | 0.001-9.9999 |
| Input signal | Rotary encoders, metre wheels, PNP normally open photoelectric switches / proximity switches |
| Blackout memory | 10 years |
| Output mode | N、C、F 、X、R、T |
| Contact form | One set of normally open and normally closed contacts, and one set of normally open contacts |
| Temperature range | -5°-40°C |
| Opening dimensions | 68×68mm |
| Installation | Panel mounted |
