HHM1 Series counting relays are panel counters for forward or reverse pulse counting from contact signals, meter wheels and PNP photoelectric or proximity sensors. The models share the same supply, input and relay-output platform, while differing by counting range, speed, coefficient setting, output mode and front size.
Common Parameters
| Parameter | Specification |
|---|
| Operating Power | DC24V, AC220V or AC380V |
| Counting Mode | Forward counting and reverse counting |
| Input Signal | Contact signal, meter wheel, PNP normally open photoelectric switch or proximity switch |
| Power-Failure Memory | 10 years |
| Contact Form | One normally open and one normally closed contact |
| Contact Capacity | 3A AC250V resistive load |
| Ambient Temperature | -5 to 40 deg C |
| Installation Method | Panel mounting |

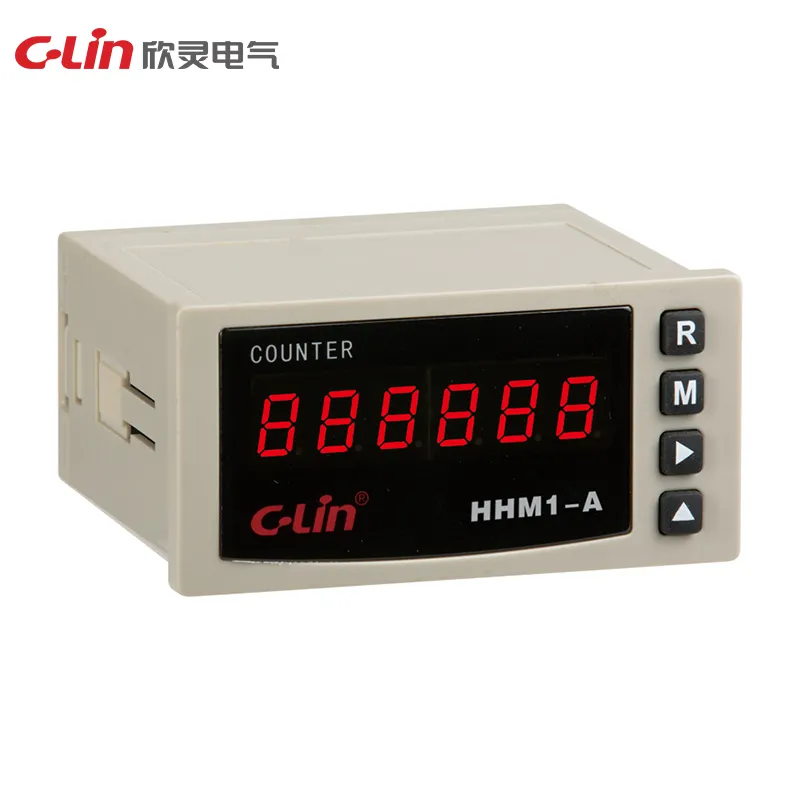

HHM1-A
| Parameter | Specification |
|---|
| Counting Speed | 1000 counts/sec high frequency; 30 counts/sec low frequency |
| Counting Range | 1-999999 |
| Measurement Coefficient | 0.001-9.999 |
| Output Mode | N, C, F, R, X |
| Dimensions | 96 x 48 x 114 mm |
| Panel Cutout | 92 x 45 mm |

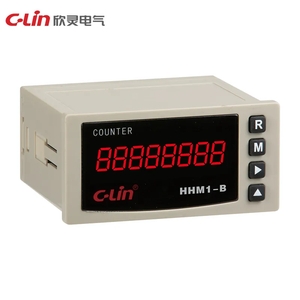

HHM1-B
| Parameter | Specification |
|---|
| Counting Speed | 3000 counts/sec high frequency; 30 counts/sec low frequency |
| Counting Range | 1-99999999 |
| Measurement Coefficient | 0.0001-9.9999 |
| Output Mode | N, C, F, R, X |
| Dimensions | 96 x 48 x 114 mm |
| Panel Cutout | 92 x 45 mm |

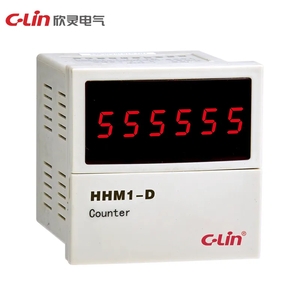

HHM1-D
| Parameter | Specification |
|---|
| Counting Speed | 1000 counts/sec high frequency; 30 counts/sec low frequency |
| Counting Range | 1-99999999 |
| Measurement Coefficient | 0.001-9.999 |
| Output Mode | N, C, F, R, X |
| Dimensions | 72 x 72 x 81 mm |
| Panel Cutout | 68 x 68 mm |

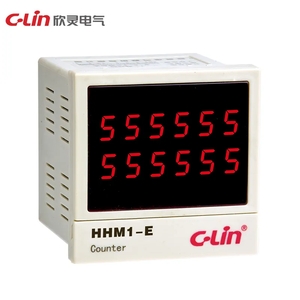

HHM1-E
| Parameter | Specification |
|---|
| Counting Speed | 1000 counts/sec high frequency; 30 counts/sec low frequency |
| Counting Range | 1-999999 |
| Measurement Coefficient | 0.001-9.999 |
| Output Mode | N, C, F |
| Dimensions | 72 x 72 x 81 mm |
| Panel Cutout | 68 x 68 mm |
