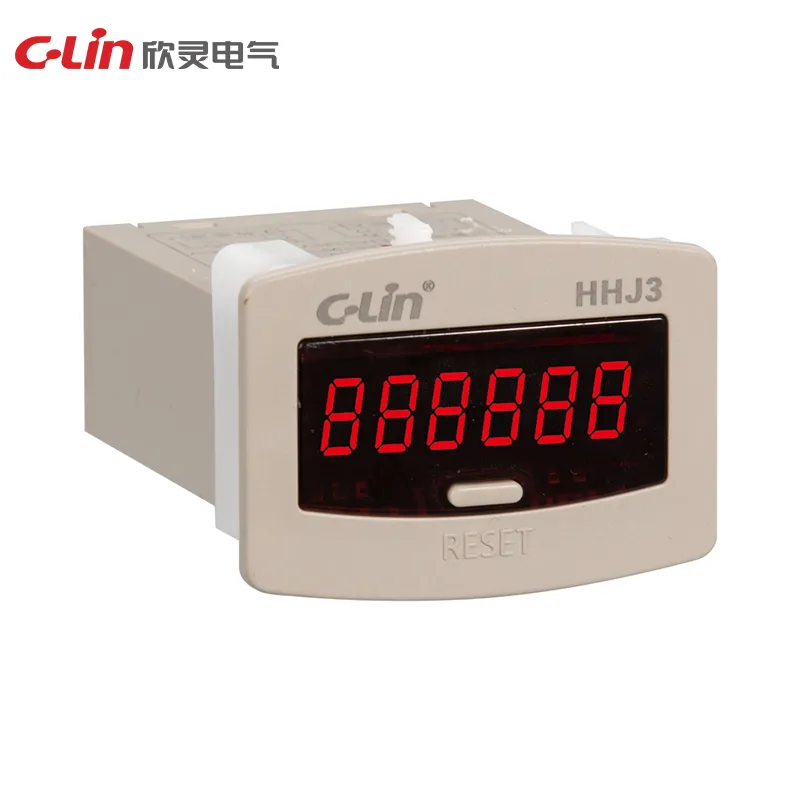

The Counting Relay HHJ3 Series is a 6-digit panel counter for contact, level and sensor-based counting. HHJ3 is used for contact or customized level-signal input, while HHJ3A adds NPN normally open photoelectric or proximity switch input for sensor counting applications.
Common Parameters
| Working mode | positive counting, 6-digit LED display |
|---|
| Counting speed | 10, 30, 1000 times/second adjustable |
|---|
| Counting range | 1-999999 |
|---|
| Power failure memory | 10 years |
|---|
| Dimensions | 58×42×82mm |
|---|
| Opening size | 50×25mm |
|---|
| Installation method | panel type |
|---|
| a) Voltage-free type | suitable for switch and contact signal input. |
|---|
| b) Voltage type (to be customised) | suitable for level DC4V~30V, AC110V or AC220V voltage signal input. |
|---|
| a)A—10 | 10 times/sec, suitable for no voltage type (switch signal, contact signal). |
|---|
| b)A—30 | 30 times/sec, applicable to voltage-free type/voltage type (switch signal, contact signal, level signal). |
|---|
| c)A-1000 | 1000 times/sec, applicable to voltage type (level signal). |
|---|
| Operating power | AC/DC100~240V, AC/DC24V 50/60Hz. |
|---|
| Counting range | 1 ~ 999999 |
|---|
| Counting Signal | a) Voltage-free type: suitable for switch and contact signal input. b) Voltage type (to be customised): suitable for level DC4V~30V, AC110V or AC220V voltage signal input. |
|---|
| Counting speed | a)A—10 :10 times/sec, suitable for no voltage type (switch signal, contact signal). b)A—30: 30 times/sec, applicable to voltage-free type/voltage type (switch signal, contact signal, level signal). c)A-1000: 1000 times/sec, applicable to voltage type (level signal). |
|---|
| Counting mode | Additive counting |
|---|
| Reset mode | Panel button switch to reset |
|---|
| Memory of power failure | 10 years |
|---|
| Installation | Panel type |
|---|
| Pollution level | 3 levels |
|---|
| Protection level | IP40 |
|---|
| Relative humidity | ≤90% |
|---|
| Ambient temperature | -5°C~+40°C |
|---|
| Altitude | ≤2000m |
|---|
HHJ3
| Working power supply | AC/DC24V; AC/DC100~240V |
|---|
| Function description | HHJ3 replaces JDM11-6H |
|---|
| Input signal | contact signal (no voltage type); level signal (voltage type DC4~30V needs to be customized) |
|---|
| Remarks | Only contact or level signal counting is possible. If photoelectric switch/proximity switch counting is required, please select HHJ3-A model |
|---|

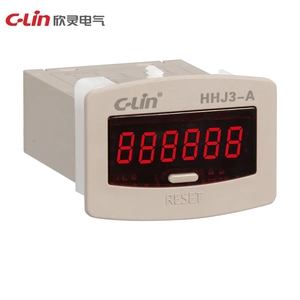

HHJ3A
| Power supply | AC/DC24V; AC/DC100~240V |
|---|
| Input signal | contact signal, NPN normally open photoelectric/proximity switch |
|---|
| Remarks | Contact and NPN normally open photoelectric switch/proximity switch counting |
|---|
