The Counting Relay HHJ1 Series is a panel-mounted counter range for machine counting, batch counting and sensor-based pulse counting. HHJ1 is a 4-digit positive counter, while HHJ1-B and HHJ1-F add 5-digit forward/backward counting, faster high-frequency input and extended output modes for more flexible control circuits.
Common Parameters
| Input signals | Contact signal, level signal and sensor signal from photoelectric switch, proximity switch or Hall switch, depending on model |
|---|
| Output modes | N, C, F, R and X output modes |
|---|
| Contact capacity | 3A AC250V resistive load |
|---|
| Contact rating | AC-15, Ue AC250V, Ie 3A |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5kV |
|---|
| Opening size | 45×45mm |
|---|
| Installation | Panel mounting; rail or chassis mounting available for HHJ1 |
|---|
| Operating temperature | -5°C to +40°C |
|---|
| Altitude | ≤2000m |
|---|
| Humidity | ≤90%RH |
|---|

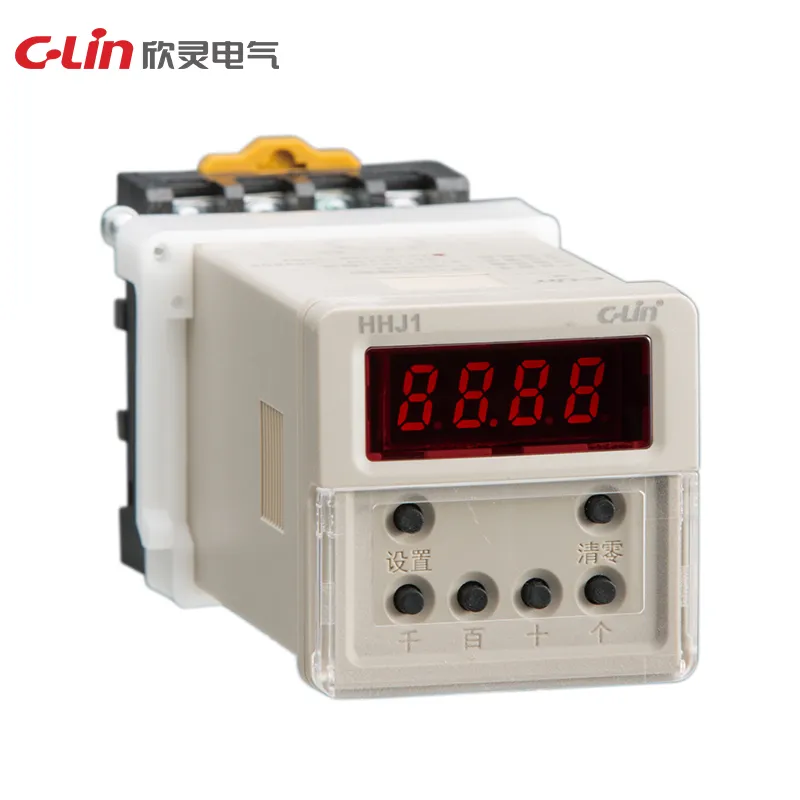

HHJ1
| Working power | AC380V, AC/DC100-240V, AC/DC24V, 50/60Hz |
|---|
| Working mode | Positive counting, 4-digit LED display |
|---|
| Counting range | 1-9999, with ×1, ×10 and ×100 magnification |
|---|
| Counting speed | Low frequency up to 10 counts/sec; high frequency up to 100 counts/sec with 50% duty cycle |
|---|
| Input details | Contact input, DC4-30V positive pulse level input and sensor input |
|---|
| Power-failure memory | 10 years |
|---|
| Dimensions | 48×48×115mm |
|---|

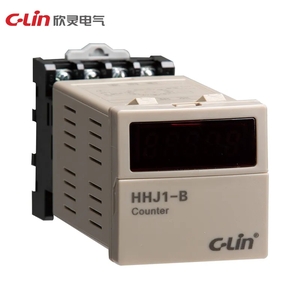

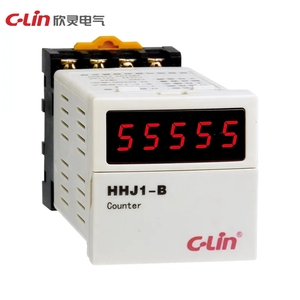

HHJ1-B
| Working power | DC24V; AC24V, AC220V, AC380V, 50/60Hz |
|---|
| Working mode | Forward counting and backward counting |
|---|
| Counting range | 1-99999, with ×1, ×10 and ×100 magnification |
|---|
| Counting speed | Low frequency up to 30 counts/sec; high frequency up to 1000 counts/sec with 50% duty cycle |
|---|
| Input details | Relay contact, travel switch, DC4-30V pulse level, photoelectric switch, proximity switch and Hall switch inputs |
|---|
| Power-failure memory | 10 years |
|---|
| Contact form | One normally open and normally closed contact group |
|---|
| Dimensions | 48×48×115mm or 48×48×90mm |
|---|

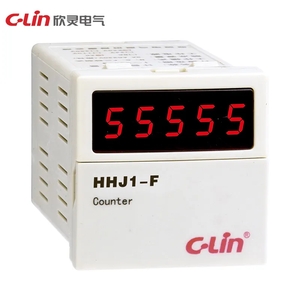

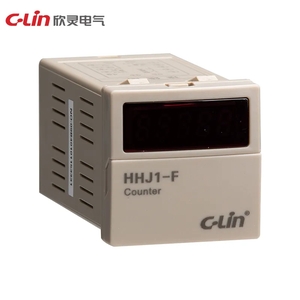

HHJ1-F
| Working power | DC24V; AC24V, AC220V, AC380V, 50/60Hz |
|---|
| Working mode | Forward counting and backward counting |
|---|
| Counting range | 1-99999 with measurement coefficient 0.001-9.999 |
|---|
| Counting speed | Low frequency up to 30 counts/sec; high frequency up to 1000 counts/sec with 50% duty cycle |
|---|
| Input details | Relay contact, travel switch, DC4-30V pulse level, photoelectric switch, proximity switch and Hall switch inputs |
|---|
| Power-failure memory | Not specified |
|---|
| Contact form | One normally open and normally closed contact group |
|---|
| Dimensions | 48×48×115mm or 48×48×90mm |
|---|
