The Counting Relay DH48 Series covers two related 48×48mm panel devices. DH48S is used for power-on delay timing with delayed or instantaneous contact output, while DH48J is a 4-digit LED counter for contact-signal counting with selectable memory and output modes.

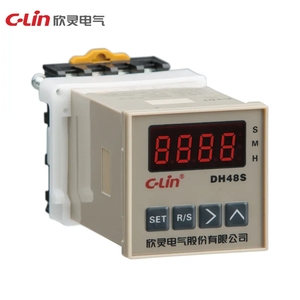

DH48S
| Regular type | 2 sets of time-delay transitions |
|---|
| Instantaneous type | 1 set of time-delay transitions, 1 set of instantaneous transitions |
|---|
| Rated working voltage Ue/rated working current Ie | AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|
| Operating power | AC380V, 220V, 110V,36V,24V,50Hz, permissible voltage fluctuation range is (85%~110%) Ue |
|---|
| Operating Mode | Power-on delay |
|---|
| Counting range | 0.01s~99.99s;1s~99m99s;1m~99h99m |
|---|
| Repetition error | Er<1% when the delay range is greater than 1s; Dr<50ms when the delay range is less than 1s. |
|---|
| Number of contacts | 1 set of delayed transitions / Regular type: 2 sets of time-delay transitions Instantaneous type: 1 set of time-delay transitions, 1 set of instantaneous transitions / 2 sets of time-delay transitions |
|---|
| Contact capacity | 3A AC250V (resistive) |
|---|
| Temperature range | -5°-40°C |
|---|
| Ith | 5A |
|---|
| Ui | 400V |
|---|
| Uimp | 2.5KV |
|---|
| Ue/Ui | Rated working voltage Ue/rated working current Ie:AC-15 Ue:AC250V,Ie:3A for each category of use. |
|---|

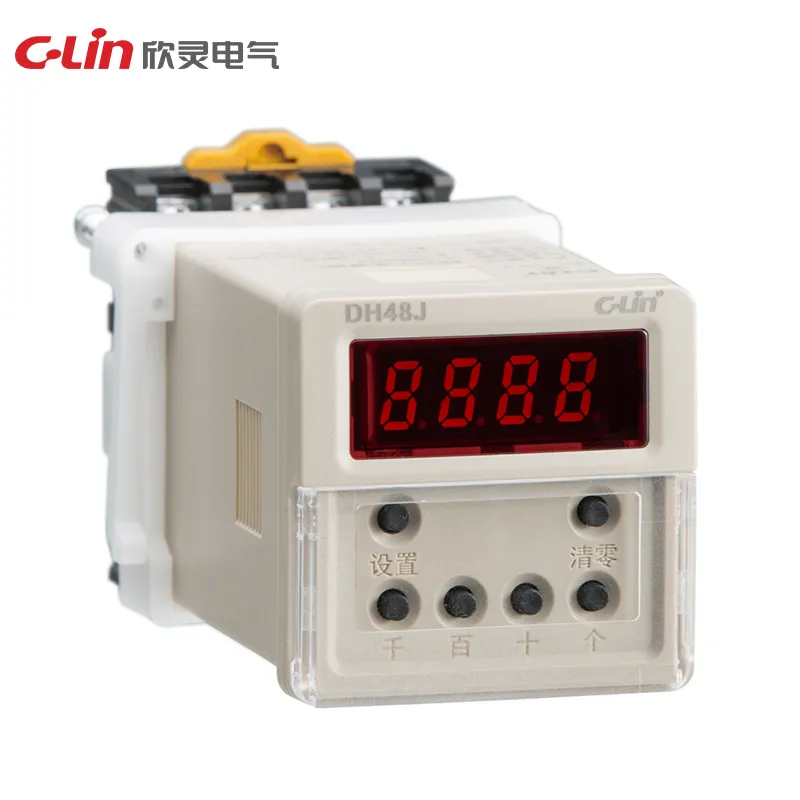

DH48J
| Working power supply | AC/DC24V; AC/DC100~240V; AC380V |
|---|
| Working mode | positive counting, 4-digit LED display |
|---|
| Counting speed | high frequency 100 times/second; low frequency 30 times/second |
|---|
| Counting range | (1-9999)×1, ×10, ×100 magnification |
|---|
| Input signal | contact signal counting |
|---|
| Output mode | N, C, F, R, X format |
|---|
| Power failure memory | memory can be set |
|---|
| Dimensions | 48×48×105mm |
|---|
| Opening size | 45×45mm |
|---|
| Installation method | panel type |
|---|
| Remarks | only contact signal counting is possible. If photoelectric switch/proximity switch counting is required, please choose HHJ1 model |
|---|
| Working mode | Positive counting, 4-digit LED display |
|---|
| Counting speed | High frequency 100 times/second; low frequency 30 times/second |
|---|
| Input signal | Contact signal counting |
|---|
| Power failure memory | Memory can be set |
|---|
| Installation method | Panel type |
|---|
| Remarks | Only contact signal counting is possible. If photoelectric switch/proximity switch counting is required, please choose HHJ1 model |
|---|
