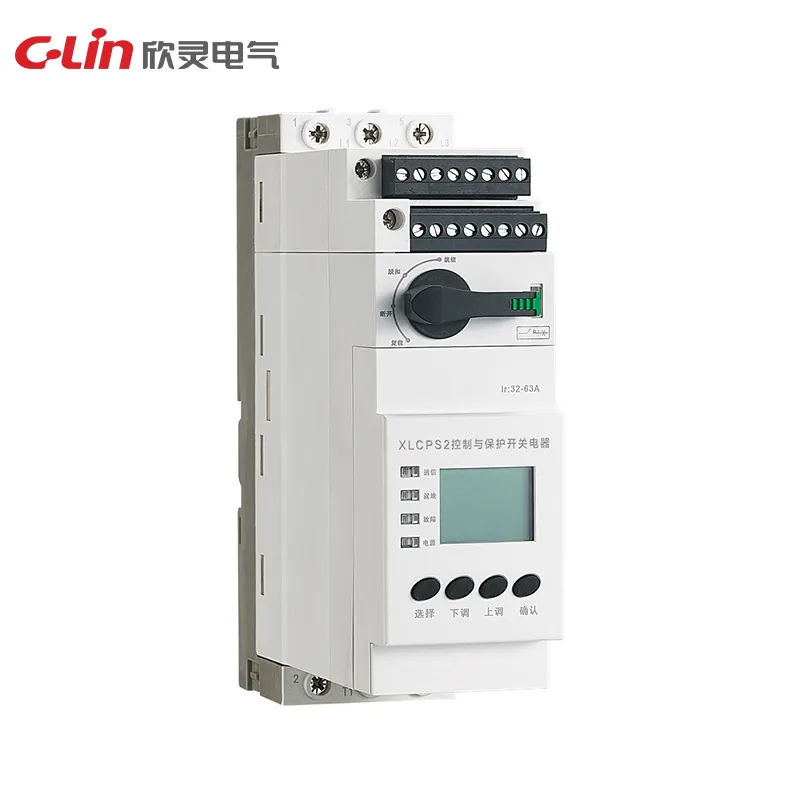

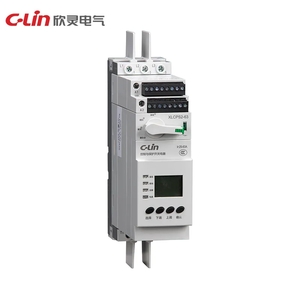

XLCPS2 Series control and protection switches are built for compact feeder and motor-control circuits that need switching, protection and high short-circuit performance in one device. The 63A frame supports AC400V and AC690V systems with AC-43 and AC-44 utilization categories.
| Frame Grade Current | 63A |
|---|---|
| Rated Working Voltage Ue | AC400V, AC690V |
| Use Category | AC-43, AC-44 |
| Rated Frequency | 50Hz |
| Poles | 3P |
| Rated Working Systems | Eight-hour, uninterrupted, intermittent |
| Rated Service Short-Circuit Breaking Capacity Ics | 50kA at AC400V; 4kA at AC690V |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Electrical Life | AC-43: 100 × 10,000 cycles |
| Mechanical Life | 1000 × 10,000 cycles |
| Conventional Heating Current Ith | 12A, 32A, 63A |
| Rated Operating Current Ie | 1.2A, 2.4A, 6A, 12A, 18A, 32A, 45A, 63A |
| Breaking Action Time | ≤2ms |
| Installation Method | Vertical screw installation |
| Dimensions | 184 × 55 × 158mm |
