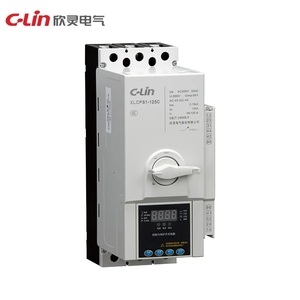

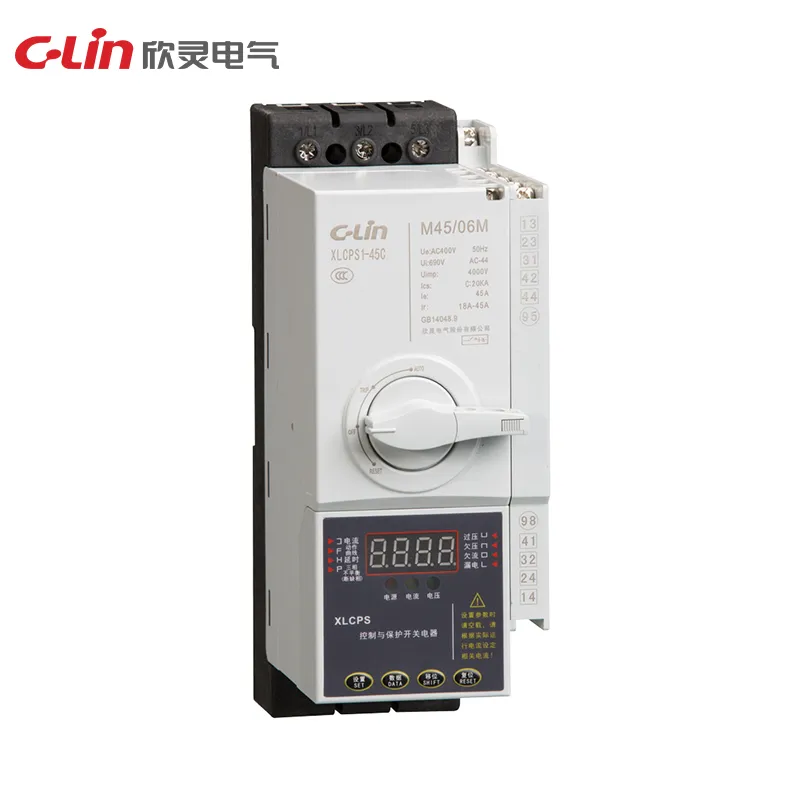

XLCPS1 Series control and protection switches combine switching, overload protection and short-circuit protection for motor feeders and distribution circuits. The series covers 45A and 125A frame sizes, selectable breaking capacities and optional functional modules for fire control, leakage protection, isolation and communication.
| Rated Working Voltage Ue | AC400V, AC690V |
|---|---|
| Control Power Supply Voltage Us | AC230V, AC400V |
| Frame Grade Rated Current Inm | 45A, 125A |
| Rated Working Current Ie | 1A, 3A, 6A, 12A, 16A, 25A, 32A, 45A, 63A, 80A, 100A, 125A |
| Poles | 3P |
| Ambient Temperature | -5 to +40°C |
| Installation Environment | Altitude up to 2000m; avoid moisture and corrosive gas |
| Overload Protection Delay | Distribution protection, motor protection |
| Breaking Capacity | C: 15kA; Y: 35kA; H: 50kA |
| Auxiliary Contact Options | 06: 3NO + 2NC + 1 fault tripping + 1 fault alarm; 09: 4NO + 3NC + 1 fault tripping + 1 fault alarm |
| Derived Functions | F fire control, L leakage protection, G isolation, T communication |
| Installation Method | 45 frame: vertical screw or 35mm standard rail; 125 frame: vertical screw |
| Dimensions | 45 frame 3P: 205 max × 145 max × 77mm; 125 frame 3P: 246 max × 185 max × 103.5mm |
