CLW2-25 25A Modular Cam Switches

CLW2-25 Modular Cam Switch Mechanical Versions

Description

CLW2-25 cam switches combine a 25A conventional thermal-current rating with modular rotary contact programs. Detent, spring-return, illuminated and key-operated versions provide different operating actions and mounting arrangements for control circuits, instrument selection, distribution equipment and motor switching.

Select the operating positions, contact schedule, section count, handle and panel wording together. Standard detent mechanisms support up to eleven sections; spring-return and illuminated arrangements support up to ten. Eight or fewer sections are recommended. The standard indexing steps are 30°, 45°, 60° and 90°.

Ordering Fields and Mechanical Options

Field Code / selection Meaning
Design family CLW2 Modular cam switch
Thermal current 25 Ith25A
Mechanical function Omitted Conventional version
C Single-hole mounting
CP Single-hole mounting with label, default label arrangement
D Illuminated version
M1 Large mounting plate; 48×48mm fixing-hole spacing for 20A and 25A versions
P Label version, default label arrangement
S Three-hole mounting
U Single-hole mounting without front plate
UY1 Single-hole mounting without front plate, key-operated handle
G1 G1 handle arrangement
G2 G2 handle arrangement
Y1 Key-operated handle
Y1P Key-operated handle with label
Position program Example: 6KC Step angle and starting/ending positions; this example gives −60°, 0°, 60°
Contact program Example: 202 Contact states at each operating position; special programs require a defined contact diagram
Sections Generic ordering range: 1–12; example: 3 Observe the CLW2-25 mechanism limits: detent≤11; return/illuminated≤10; preferably≤8
Handle A, A1, AD, B, C, C1, G1, G2 Choose the shape for the mounting version; the illustrated ordering example uses Ar
Handle color K / C / R Black / blue / red
Panel print Example: B14; special print: P Omitting the print code retains the standard wording for the contact schedule

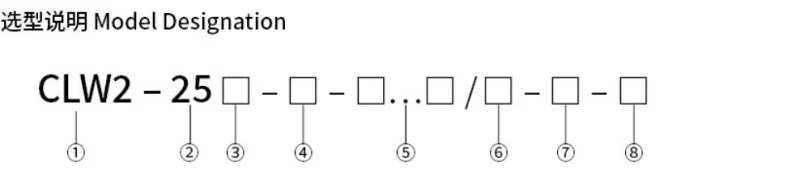

CLW2-25 eight-field ordering-code layout
Ordering fields and separator positions for the complete configuration.
CLW2-25 eight operating-handle shapes
A, A1, AD, B, C, C1, G1 and G2 handle outlines.

Detent Position Codes

The first character selects the indexing step: 3=30°, 4=45°, 6=60° and 9=90°. The next two letters identify the start and end positions on the appropriate circle, clockwise. A is the 0° reference; O is a position letter. A continuous-rotation program repeats the start letter as its end letter. Contact logic and section count can restrict the available travel.

Example Step Position sequence
3KC 30° K, O, A, B, C
4OB 45° O, A, B
6KE 60° K, A, C, E
9GC 90° G, A, C
3JJ 30° Twelve positions over 360°, starting at −90°, without an end stop
CLW2-25 positioning circles for rotary travel codes
Use the circle matching the selected indexing angle.

Spring-Return Programs

Arrows show spring-return directions; commas separate positions without a return arrow between them. Y means available; Y* limits the program to three sections or fewer.

Return code Angles and return directions Availability
A1 0° ← 30° Y*
A2 0° ← 45° Y
A3 −45° ← 45° Y
A4 −45° ← 0° Y
A5 0° ← 90° Y
B1 −30° → 0° ← 30° Y*
B2 −45° → 0° ← 45° Y
B3 −60° → −30° → 0° ← 30° ← 60° Y*
B4 −90°, −45°, 0°, 45° ← 90° Y
B5 −90°, −45°, 0° ← 45° Y
B6 −90° → −60° → −30° → 0° ← 30° ← 60° ← 90° Y*
B7 −90° → −45°, 0°, 45°, 90°, 135° Y
B8 −90° → −45°, 0°, 45°, 90° Y
B9 −45° → 0°, 45°, 90°, 135° Y
B10 −45° → 0°, 45°, 90°, 135°, 180° Y
B11 −45° → 0° ← 45° ← 90° Y
BA −90° → −45° → 0° ← 45° ← 90° Y
BA1 −45° → 0° → 45° ← 90° ← 135° Y
BC −45° → 0° ← 45° Y
D4 0° ← 45° ← 90° Y
Z1 −135° → −90°, 0° ← 45° Y
Z2 −45° → 0°, 90° ← 135° Y
ZA −90° → −45°, 0°, 45° ← 90° Y
ZB −90° → −45°, 0°, 45° Y
ZC −45°, 0°, 45° ← 90° Y
ZD −90°, 0° ← 45° Y
ZE 0°, 45° ← 90° Y
ZF −45°, 0° ← 45° Y
ZG −45° → 0°, 45° Y
ZK −45° → 0°, 45°, 90° Y
ZK1 −45° → 0°, 45°, 90°, 135° Y
W −120° → −90°, 0° ← 30° Y*
WA −90°, 0° ← 30° Y*
WB −30° → 0°, 90° Y*
WC 0°, 90° ← 120° Y*
WR −120° → −90°, 0°, 90° ← 120° Y*
WS −90°, 0°, 90° ← 120° Y*
WT −120° → −90°, 0°, 90° Y*
WU −90°, −30° → 0° ← 30° Y*
WV −90°, 0° ← 30°, 90° Y*

Electrical and Environmental Ratings

Group Parameter Value
Electrical and mechanical Referenced standard GB/T14048.5
Conventional thermal current 25A
Rated insulation voltage 690VAC
Impulse withstand voltage 4kV
Frequency 50Hz technical rating; 50/60Hz application range
Mechanical life 500000 operations
Electrical life AC300000; DC200000 operations
Operating frequency 300 operations/hour
Shock resistance 50g, 11ms, half-sine waveform
Vibration resistance 10–500Hz, 5g
Operating conditions Ambient temperature −25°C to +55°C
Humidity ≤90%RH
Pollution degree 3
Installation category III
Storage/transport temperature −40°C to +80°C
Protection IP65 at the working face

Application voltage limits are 380VAC and 220VDC. Use the operating current for the required utilization category; Ith25A is the thermal-current value.

Utilization category 24V 48V 110V 220V 380V
AC-15 — — — 8A 4A
DC-13 — — 1A 0.35A —

A dash denotes an unspecified rating.

Mounting and Dimensions

Dimensions below are in mm; n is the number of contact sections. Detent and return depths are separate where both are specified. The illustrated block pitch is 11.5mm.

Version Handle / front dimensions Front projection Rear depth Panel thickness Mounting
CLW2-25 A/A1/B/C/C1; 48×48 29 Detent24+11.5n; return39.3+11.5n 1–3 Four Ø4.5 holes, 36±0.20 square; center Ø10
CLW2-25P A/A1/B/C/C1; 48×65 label plate
CLW2-25D A/A1/B/C/C1; 48×65 illuminated plate 39.3+11.5n, illustrated depth Four Ø4.5 holes, 36±0.20 square; center Ø10; lamp opening 40mm +0.20/0 ×15.8mm +0.15/0, offset32.1±0.15
CLW2-25M1 AD only; 64×64 29 Detent24.5+11.5n; return39.8+11.5n Four Ø4.5 holes, 48±0.20 square; center Ø10
CLW2-25G1 G1; 48×48 34.7 Detent20.5+11.5n; return35.8+11.5n 36±0.20 square fixing; center Ø10
CLW2-25G2 G2; 64×64 43 Detent24.5+11.5n; return39.8+11.5n Four Ø4.5 holes, 48±0.20 square; center Ø10
CLW2-25S A/A1/B/C/C1; 48×48 29 39.3+11.5n, illustrated depth Center Ø10 and two Ø4.5 holes, 30±0.20 spacing
CLW2-25C A/A1/B/C/C1; 48×48 27 Detent47.5+11.5n; return62.8+11.5n 1–4 Keyed Ø22.3mm +0.40/0; keyed height24.1mm +0.40/0; key width3.2mm +0.20/0; R0.8
CLW2-25CP A/A1/B/C/C1; 48×65 label plate
CLW2-25U A/C; no plate; Ø46.5 base, 23 handle half-height 27.3
CLW2-25Y1 Key; 48×48 15.3
CLW2-25Y1P Key; 48×65 label plate
CLW2-25UY1 Key; no plate; Ø46.5 base, 23 half-height
CLW2-25 conventional label illuminated switch dimensions
Conventional, label and illuminated arrangements.
CLW2-25 M1 G1 G2 mounting dimensions
Large-panel and G1/G2 handle mounting arrangements.
CLW2-25 S C CP mounting dimensions
Three-hole and single-hole plate versions.
CLW2-25 U Y1 Y1P mounting dimensions
Plate-free handle and key-operated plate versions.
CLW2-25 UY1 mounting dimensions
Plate-free key-operated version.

On/Off and Changeover Programs

Each section adds two contact pairs. In the following table, the two pair columns identify the contacts added by that section. For a selected section count, include the pairs in every row from section 1 through that count. An on/off program opens all pairs at 0 and closes both groups at 1. Changeover closes the first pair group at position 1 and the second at position 2; center-off adds an all-open position 0 between them.

Sections On/off Independent two-position Bridged two-position Independent center-off Bridged center-off Added first-group pair Added second-group pair
1 02/1 11/1 11J/1 101/1 101J/1 1–2 3–4
2 04/2 22/2 22J/2 202/2 202J/2 5–6 7–8
3 06/3 33/3 33J/3 303/3 303J/3 9–10 11–12
4 08/4 44/4 44J/4 404/4 404J/4 13–14 15–16
5 0A/5 55/5 55J/5 505/5 505J/5 17–18 19–20
6 0C/6 66/6 66J/6 606/6 606J/6 21–22 23–24
7 0E/7 77/7 77J/7 707/7 707J/7 25–26 27–28
8 0G/8 88/8 88J/8 808/8 808J/8 29–30 31–32
9 0I/9 99/9 99J/9 909/9 909J/9 33–34 35–36
10 0K/10 AA/10 AAJ/10 A0A/10 A0AJ/10 37–38 39–40

Bridged changeover versions add even-terminal links 2–4, 6–8, 10–12 and the corresponding even-terminal pair on each subsequent section.

Complete example Function Angles Panel marks
CLW2-25-4AB-06/3 Three-section on/off 0°, 45° 0, 1
CLW2-25-9OB-33/3 Three-section independent changeover −45°, 45° 1, 2
CLW2-25-6OB-33J/3 Three-section bridged changeover −30°, 30° 1, 2
CLW2-25-4OB-303/3 Three-section independent center-off −45°, 0°, 45° 1, 0, 2
CLW2-25-4OB-404J/4 Four-section bridged center-off −45°, 0°, 45° 1, 0, 2
CLW2-25 on off and independent changeover programs
On/off and independent changeover contact schedules.

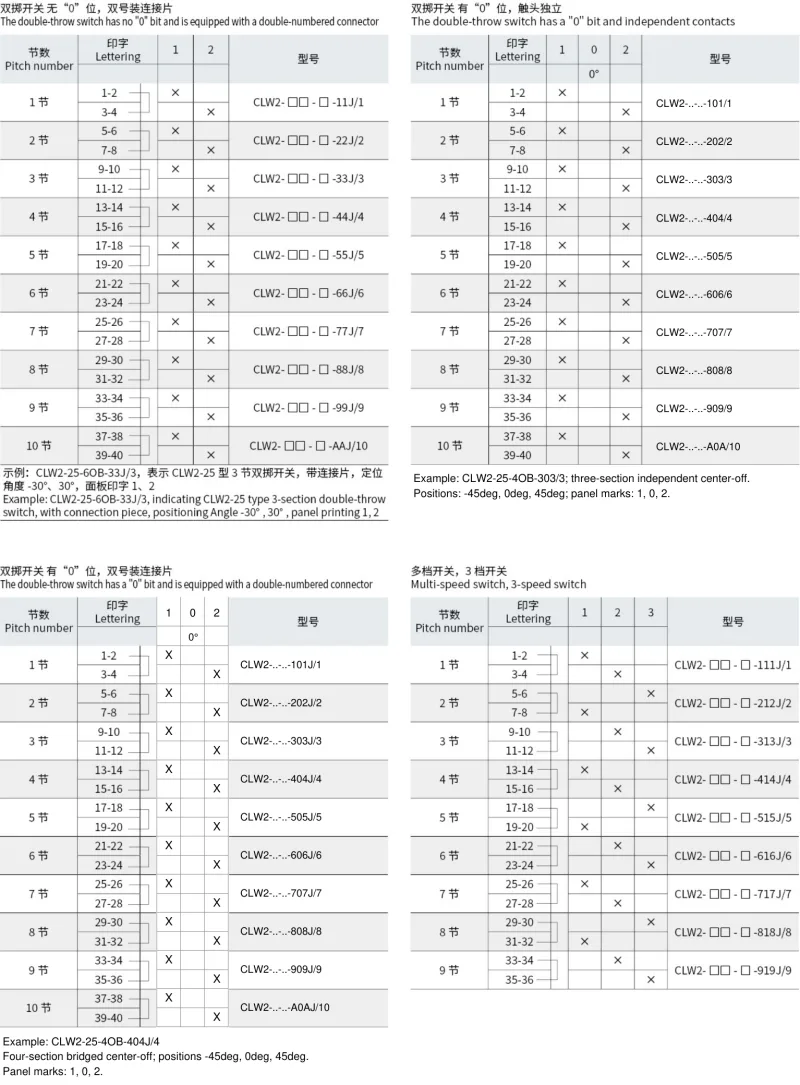

CLW2-25 bridged and center-off contact programs
Bridged changeover and center-off terminal connections.

Three-, Four- and Five-Position Programs

Choose the program and section count below. In the contact map that follows, use only pairs within that program's terminal range. Each fitted pair closes at the listed position and remains open at the other positions. Retain the terminal bridges in the matching connection drawing.

Positions Program Sections Terminal-pair range
3 111J/1 1 1–2 through 3–4
212J/2 2 1–2 through 7–8
313J/3 3 1–2 through 11–12
414J/4 4 1–2 through 15–16
515J/5 5 1–2 through 19–20
616J/6 6 1–2 through 23–24
717J/7 7 1–2 through 27–28
818J/8 8 1–2 through 31–32
919J/9 9 1–2 through 35–36
4 1111J/2 2 1–2 through 7–8
2222J/4 4 1–2 through 15–16
3333J/6 6 1–2 through 23–24
4444J/8 8 1–2 through 31–32
5555J/10 10 1–2 through 39–40
5 1x5J/3 3 1–2 through 11–12
2x5J/5 5 1–2 through 19–20
3x5J/8 8 1–2 through 31–32
4x5J/10 10 1–2 through 39–40
Terminal pair 3-position: closed position 4-position: closed position 5-position: closed position
1–2 1 1 1
3–4 2 2 5
5–6 3 3 2
7–8 1 4 3
9–10 2 1 4
11–12 3 2 2
13–14 1 3 3
15–16 2 4 4
17–18 3 1 1
19–20 1 2 5
21–22 2 3 1
23–24 3 4 5
25–26 1 1 2
27–28 2 2 3
29–30 3 3 4
31–32 1 4 2
33–34 2 1 3
35–36 3 2 4
37–38 Not fitted 3 1
39–40 Not fitted 4 5
CLW2-25 four and five position contact diagrams
Four- and five-position schedules with their common-terminal links.

Standard and Special Contact Schedules

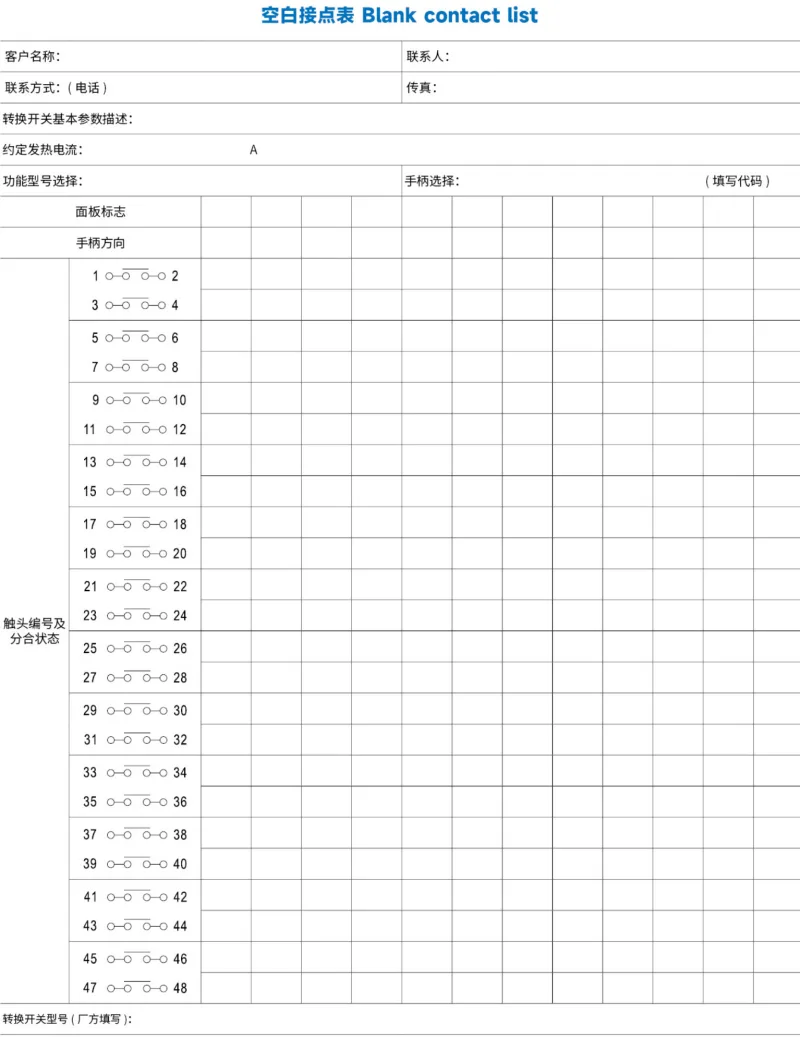

A contact code identifies a defined schedule. A special × suffix requires a separate contact diagram; it does not define the switching pattern by itself.

Program Position 1 closed pairs Position 2 closed pairs Position 3 closed pairs
424/3 1–2, 3–4, 5–6, 7–8 9–10, 11–12 1–2, 3–4, 5–6, 7–8
424×/3, illustrated custom schedule 1–2, 7–8, 11–12 5–6, 11–12 1–2, 3–4, 5–6, 7–8, 9–10

Voltmeter Selection

The following schedules give the closed terminal pairs at each panel position; all unlisted pairs are open. Keep the internal and external links in the corresponding drawing.

Model Measurement arrangement Position, angle → closed pairs
CLW2-25-YH1/3 Three phase-to-neutral voltages; N connection and off position 0, 0° → None
A, 90° → 1–2, 9–10
B, 180° → 5–6, 9–10
C, 270° → 3–4, 9–10
CLW2-25-YH2/3 Three line voltages; off position 0, 0° → None
AB, 90° → 1–2, 7–8
BC, 180° → 1–2, 11–12
CA, 270° → 5–6, 11–12
CLW2-25-YH3/3 Three line voltages; no N; off position 0, 0° → None
AB, 90° → 1–2, 7–8
BC, 180° → 5–6, 11–12
CA, 270° → 3–4, 9–10
CLW2-25-YH4/2 Three line-voltage selections; no off position; A/B/C panel marks A, −90° → 1–2, 7–8
B, 0° → 1–2, 3–4
C, 90° → 3–4, 5–6
CLW2-25-YH12/2 Three line voltages; no N; off position 0, 0° → None
AB, 90° → 3–4, 5–6
BC, 180° → 5–6, 7–8
CA, 270° → 1–2, 7–8
CLW2-25-YH13/2 Three phase-to-neutral voltages; N connection; no off position; panel references A72/B100 A, 90° → 1–2, 7–8
B, 180° → 3–4, 7–8
C, 270° → 5–6, 7–8
CLW2-25-YH22/3 Three line voltages; no N; off position; panel references A75/B103 0, 0° → None
AB, 90° → 1–2, 7–8
BC, 180° → 5–6, 11–12
CA, 270° → 3–4, 9–10
CLW2-25-YH5/4 Three line and three phase-to-neutral voltages; N connection and off position CA, −135° → 5–6, 11–12
BC, −90° → 1–2, 15–16
AB, −45° → 3–4, 11–12
0, 0° → None
AN, 45° → 7–8, 9–10
BN, 90° → 3–4, 13–14
CN, 135° → 1–2, 9–10
CLW2-25-YH6/4 Three line voltages from each of two supplies; off position Supply 1 CA, −135° → 3–4, 11–12
Supply 1 BC, −90° → 7–8, 15–16
Supply 1 AB, −45° → 3–4, 15–16
0, 0° → None
Supply 2 AB, 45° → 1–2, 9–10
Supply 2 BC, 90° → 5–6, 13–14
Supply 2 CA, 135° → 1–2, 13–14
CLW2-25-YH8/4 Three line voltages and one phase-to-neutral voltage; N connection and off position CA, −135° → 5–6, 11–12
BC, −90° → 1–2, 15–16
AB, −45° → 3–4, 11–12
0, 0° → None
AN, 45° → 7–8, 9–10

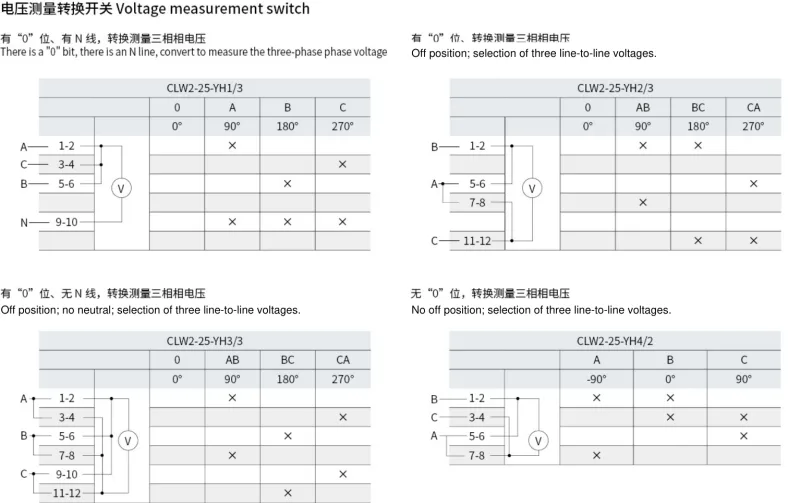

CLW2-25 YH1 YH2 YH3 YH4 voltmeter circuits
Four voltmeter-selector programs and their connection links.
CLW2-25 YH12 YH13 YH22 YH5 YH6 YH8 voltmeter circuits
Additional voltmeter programs, including two-supply line-voltage selection.

Ammeter Selection

Retain the current-transformer connections and shorting contacts for the selected program. An ammeter position marked 0 can retain closed CT shorting contacts.

Model Arrangement Position, angle → closed pairs
CLW2-25-LH1/2 Two CTs; no N; 0/A/B/C selection 0, 0° → 1–2, 5–6
A, 90° → 3–4, 5–6
B, 180° → 3–4, 7–8
C, 270° → 1–2, 7–8
CLW2-25-LH2/4 Three CTs and N; N/A/B/C selection N, 0° → 1–2, 3–4, 5–6, 15–16
A, 90° → 1–2, 5–6, 7–8, 11–12
B, 180° → 1–2, 3–4, 7–8, 13–14
C, 270° → 3–4, 5–6, 7–8, 9–10
CLW2-25-LH3/4 Three CTs; no N; 0/A/B/C selection 0, 0° → 1–2, 5–6, 7–8
A, 90° → 1–2, 7–8, 13–14
B, 180° → 5–6, 7–8, 9–10
C, 270° → 1–2, 5–6, 15–16

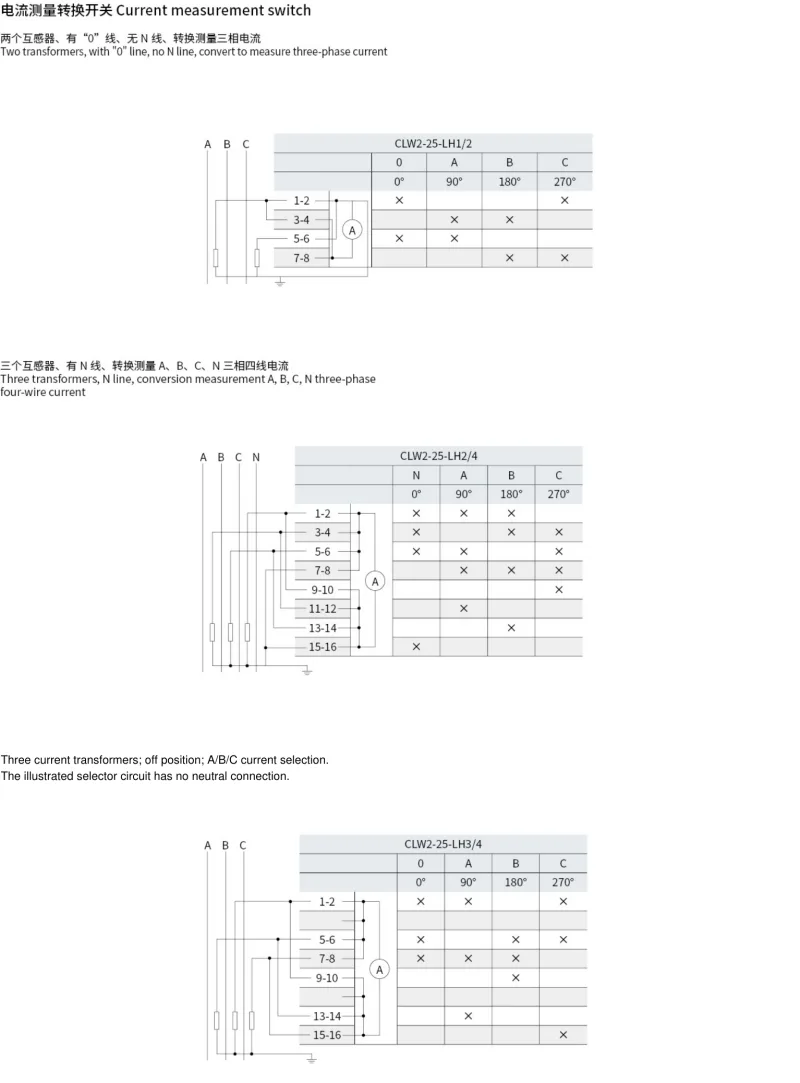

CLW2-25 LH1 LH2 LH3 ammeter selector connections
Ammeter-selector wiring and current-transformer connections.

Distribution Closing and Tripping

These six stages retain the operating history as well as the angle. The two 0° stages and two −90° stages have different contact states.

Stage Meaning Handle direction Angle
T After trip ← −90°
PC Pre-close ↑ 0°
C Close ↗ 45°, returning
CA After close ↑ 0°
PT Pre-trip ← −90°
TR Trip ↙ −135°, returning
Model Closed pairs at each stage Replacement reference
CLW2-25-ZJ/1a.4.6a.40.20/7 T: 2–4, 11–10, 15–14, 20–18
PC: 1–3, 9–10, 13–14, 17–18
C: 5–8, 9–12, 13–16, 17–19
CA: 1–3, 9–10, 13–16, 17–19
PT: 2–4, 11–10, 13–14, 17–18
TR: 6–7, 11–10, 15–14, 20–18 		CLW2-25-Z-1a.4.6a.40.20/F8
CLW2-25-Z/49.6781/8 T: 3–4, 15–16, 23–24, 31–32
PC: 1–2, 9–10, 21–22, 29–30
C: 5–6, 13–14, 25–26, 27–28
CA: 1–2, 9–10, 25–26, 27–28
PT: 3–4, 15–16, 21–22, 29–30
TR: 7–8, 15–16, 17–18, 23–24, 31–32 		CLW2-25-Z-1a.4.6a.40.20/F8
CLW2-25-Z/1a.4.20/4 T: 3–4, 13–14
PC: 1–2, 11–12
C: 5–6, 9–10
CA: 1–2, 9–10
PT: 3–4, 11–12
TR: 7–8, 13–14 		CLW2-25-Z-1a.20/F8
CLW2-25-Z/1a.4.6a.40.20/5 T: 3–4, 11–12, 13–14, 19–20
PC: 1–2, 9–10, 13–14
C: 5–6, 9–10, 15–16, 17–18
CA: 1–2, 9–10, 15–16, 17–18
PT: 3–4, 11–12, 13–14
TR: 7–8, 11–12, 13–14, 19–20 		CLW2-25-Z-1a.4.6a.40.20/F8
CLW2-25-ZJ/1a.4.6a.20/6 T: 2–4, 11–10, 16–14
PC: 1–3, 9–10, 13–14
C: 5–8, 9–12, 13–15
CA: 1–3, 9–10, 13–15
PT: 2–4, 11–10, 13–14
TR: 6–7, 11–10, 16–14 		CLW2-25-Z-1a.4.6a.20/F8
CLW2-25 distribution closing tripping six stage programs
Distribution-control contact schedules and internal links.

Capacitor-Cabinet Stage Selection

Model Function Positions and angles
CLW2-25-3OI-21-9/6 Eight-stage main cabinet Auto−30°; 0–8 from 0° to 240°, 30° steps
CLW2-25-3OG-21-7/5 Six-stage main cabinet Auto−30°; 0–6 from 0° to 180°, 30° steps
CLW2-25-3OK-21-AC/7 Ten-stage main cabinet Auto−30°; 0–10 from 0° to 300°, 30° steps
CLW2-25-3JF-0-8/4 Eight-stage auxiliary cabinet 0–8 from −90° to 150°, 30° steps
CLW2-25-3JD-0-6/3 Six-stage auxiliary cabinet 0–6 from −90° to 90°, 30° steps
CLW2-25-3JH-0-A/5 Ten-stage auxiliary cabinet 0–10 from −90° to 210°, 30° steps

O in 3OI, 3OG and 3OK is a position letter identifying −30°. All main-cabinet pairs are open in Auto. None denotes a fitted pair that remains open; Not fitted is outside that program's contact count.

Contact pair Main 8-stage: closed stages Main 6-stage: closed stages Main 10-stage: closed stages
1–2 1–8 1–6 1–10
3–4 0 0 0
5–6 0 0 0
7–8 1–8 1–6 1–10
9–10 2–8 2–6 2–10
11–12 3–8 3–6 3–10
13–14 4–8 4–6 4–10
15–16 5–8 5–6 5–10
17–18 6–8 6 6–10
19–20 7–8 None 7–10
21–22 8 Not fitted 8–10
23–24 None Not fitted 9–10
25–26 Not fitted Not fitted 10
27–28 Not fitted Not fitted 10
Contact pair Auxiliary 8-stage: closed stages Auxiliary 6-stage: closed stages Auxiliary 10-stage: closed stages
1–2 1–8 1–6 1–10
3–4 2–8 2–6 2–10
5–6 3–8 3–6 3–10
7–8 4–8 4–6 4–10
9–10 5–8 5–6 5–10
11–12 6–8 6 6–10
13–14 7–8 Not fitted 7–10
15–16 8 Not fitted 8–10
17–18 Not fitted Not fitted 9–10
19–20 Not fitted Not fitted 10

All auxiliary-cabinet contacts are open at stage 0. The ten-stage main program closes both 25–26 and 27–28 at stage 10.

CLW2-25 capacitor main auxiliary cabinet six eight ten stage programs
Main- and auxiliary-cabinet stage-selector contact schedules.

Motor-Control Application Programs

Use code Application
Q Direct starting of a squirrel-cage motor
N Forward/reverse starting
S Two-speed motor starting and speed selection
XS Star/delta starting

The motor-use ordering fields identify thermal current, use code and motor power in kW, followed by the program's section and option fields. In these examples, 3 denotes 3kW and 1.2 denotes 1.2kW.

Model Application Position, angle → closed pairs
CLW2-25-Q3/2 Direct starting; switching off during operation OFF, 0° → None
ON, 45° → 1–2, 3–4, 5–6
CLW2-25-N1.2/3 Starting, reversing and reverse-current braking 1, −45° → 3–4, 5–6, 9–10, 11–12
0, 0° → None
2, 45° → 1–2, 7–8, 9–10, 11–12
CLW2-25-S3/4 Two-speed motor starting and speed selection 1, −45° → 1–2, 5–6, 7–8, 11–12, 13–14
0, 0° → None
2, 45° → 1–2, 3–4, 5–6, 9–10, 13–14, 15–16
CLW2-25 motor switching panels and terminal circuits
Q, N and S motor-control panel and connection examples.

Panel Printing Options

A print code specifies the wording and its physical layout. The English equivalents below identify the labels; the illustrations retain their locations and return arrows. Special printing uses P. Omission retains the standard printing associated with the contact program.

Code group Layout angle Content
A1–A22 30° Worded operating and metering plates
B1–B59 45° Worded operating, distribution and metering plates
C1–C18 60° Worded operating plates
D1–D22 90° Worded operating and metering plates
E1–E8 22.5° reference layouts Numeric and Auto/Stop/Manual plates
F1–F17 30° Numeric plates
G1–G29 45° Numeric plates
H1–H14 60° Numeric plates
I1–I11 90° Numeric plates

The E-series entries are printing references; they do not establish a standard 22.5° CLW2-25 indexing mechanism.

Print code English wording / symbols
A1 / B1 Raise / 0 / Lower
A2 / B2 Start / 0 / Stop
A3 / B3 Trip / Stop / Close
A4 / B4 Trip / 0 / Close
A5 / B5 Off / 0 / On
A6 / B6 Remote / Stop / Local
A7 / B7 Increase speed / 0 / Decrease speed
A8 / B8 Trip / Disconnect / Close
A9 / B9 Open / 0 / Close
A10 / B10 Close / 0 / Trip
A11 / B11 Trip / 0 / Close
A12 OFF / ON
A13 Trip / 0 / Close
A14 Auto / 0 / Manual
A15 Raise voltage / Stop / Lower voltage
A16 On / Stop / Off
A17 Close / 0 / Trip
A18 Decrease speed / Stop / Increase speed
A19 AB, BC, CA, 0, A, B, C
A20 Auto / Stop / Manual / 2–6
A21 Auto / Stop / Manual / 2–8
A22 Auto / Stop / Manual / 2–10
B12 Remote / Local / Trip / Close, arranged as illustrated
B13 Remote / After trip / After close / Trip / Close
B14 / B15 / B16 Pre-close / After close / Close / Pre-trip / After trip / Trip; three illustrated layouts
B17 Stop / Start
B18 On / Off
B19 Manual / Auto
B20 Insert / Withdraw
B21 Working / Test
B22 Disconnect / Connect
B23 Local / Remote
B24 Switch cabinet / Operator station
B25 Withdraw / Insert
B26 Manual / Auto
B27 Remote / Local
B28 Disconnect / Connect
B29 Auto / Standby
B30 Stop / Start
B31 Field / Remote
B32 Remote / Field
B33 Manual / Remote control
B34 Withdraw / Insert
B35 Interlock / Manual
B36 On / Off
B37 Test / Run
B38 Disconnect / Remote
B39 1 / 2 / 3 / OFF
B40 Trip / 0 / Close
B41 Auto / Stop / Manual
B42 Trip / 0 / Close
B43 Run / Stop / Test
B44 Increase excitation / Stop / Decrease excitation
B45 Manual / Disconnect / Auto
B46 Decrease speed / Disconnect / Increase speed
B47 Raise voltage / Stop / Lower voltage
B48 Local / Stop / Remote
B49 Manual / Stop / Auto
B50 Parallel / 0 / Separate
B51 Local / 0 / Remote
B52 Local / Disconnect / Remote
B53 Decrease / 0 / Increase
B54 Low voltage / High voltage
B55 Local / 0 / Remote control
B56 Parallel / 0 / Separate
B57 Working / Stop / Standby
B58 0 and two sets of UAB / UBC / UCA
B59 0, UAB / UBC / UCA and UA / UB / UC
C1 Manual / Auto
C2 Remote / Local
C3 Local / Remote
C4 Trip / Close
C5 Off / On
C6 Auto / Manual
C7 Manual / Auto
C8 Parallel / Release
C9 Auto / Manual
C10 Local / Remote
C11 Remote / Local
C12 Trip / Disconnect / Close
C13 Decrease speed / Disconnect / Increase speed
C14 Manual / Stop / Auto
C15 Auto / Stop / Manual
C16 Local / Release / Remote
C17 Manual / Reset / Auto
C18 Remote / Local
D1 Manual / Auto
D2 Local / Remote
D3 Auto / Manual
D4 Remote / Local
D5 Trip / Close
D6 On / Off
D7 Field / Remote
D8 Close / Trip
D9 Release / Parallel
D10 Test / Run
D11 Disabled / Enabled
D12 Trip / Close
D13 Field / Remote
D14 Withdraw / Insert
D15 Interlock / Release
D16 IA / IB / IC
D17 UAB / UBC / UCA
D18 UA / UB / UC
D19 0, UA / UB / UC
D20 0, UAB / UBC / UCA
D21 0, IA / IB / IC
D22 0, IAB / IBC / ICA
E1 0–12
E2 0–13
E3 Auto / Stop / Manual / 2–11
E4 Auto / Stop / Manual / 2–12
E5 Auto / Stop / Manual / 2–13
E6 Auto / Stop / Manual / 2–14
E7 0–15
E8 0–16
CLW2-25 A B worded panel layouts
30° A-series and 45° B-series panel-print references.
CLW2-25 C D E panel-print references
60° C-series, 90° D-series and 22.5° E-series print layouts.
Numeric print code Printed numbers / return marks
F1 / G1 0 ← 1
F2 / G2 1 ← 2
F3 / G3 1 → 0 ← 2
F4 / G4 1 → 2 ← 3
F5 0, 1
F6 1, 2
F7 0, 1, 2
F8 1, 0, 2
F9 1, 2, 3
F10 2, 1, 0, 1, 2
F11 1–5
F12 0–4
F13 0–5
F14 3, 2, 1, 0, 1, 2, 3
F15 0–7
F16 0–8
F17 0–11
G5 / G6 0, 1; distinct layouts
G7 1, 0
G8 / G9 1, 2; distinct layouts
G10 0, 1, 2
G11 1, 0, 2
G12 / G13 1, 2, 3; distinct layouts
G14 1, 0, 1, 2
G15 / G16 1–4; distinct layouts
G17 0–4
G18 2, 1, 0, 1, 2
G19 / G20 1–5; distinct layouts
G21 0–5
G22 1–6
G23 2, 1, 0, 1, 2, 3
G24 0–6
G25 1–7
G26 0–7
G27 1–8
G28 0–7, circular layout
G29 1–8, circular layout
H1 0, 1
H2 / H3 / H4 1, 2; distinct layouts
H5 0, 1
H6 1, 0, 2
H7 1, 2, 3
H8 0, 1, 2
H9 0–3
H10 1–4
H11 1–5
H12 2, 1, 0, 1, 2
H13 1–6
H14 0–5
I1 0, 1
I2 1, 2
I3 0, 1
I4 1, 2
I5 1, 2
I6 0, 1, 2
I7 1, 0, 2
I8 1, 2, 3
I9 0–3
I10 1–4
I11 0–3
CLW2-25 F G H I numeric panel library
Numeric print layouts with their individual angular arrangements.

Custom Contact Specification

Define a custom switch by thermal current, mechanical function, handle code, panel wording, handle directions and the open/closed state of each required terminal pair at every position. The blank worksheet provides pairs 1–2 through 47–48 as a general twelve-section specification grid; the selected CLW2-25 mechanism must remain within its own section limit.

Cam switch custom contact schedule worksheet
Worksheet for specifying the complete operating and contact sequence.

Small-Load Use and Contact Protection

The standard minimum applicable load is 24VDC, 10mA. Smaller signals require a suitable small-load contact configuration. Contacts used on general loads should not subsequently be reused for smaller signals, because contact-surface changes can reduce low-current reliability. Use suitable CR suppression and contact protection where bounce, noise or pulse currents affect the circuit.

Cam switch small-load and standard-load operating regions
Small-load reference regions, including the illustrated 5mW and 800mW boundaries.

These products are intended for industrial controls. High-reliability infrastructure, safety-critical transport or medical systems, severe outdoor or contaminated environments, fire or explosion hazards, military uses and large engineering projects require a specifically designed and expressly confirmed configuration.

Documents
