CLS70 LED warning beacons provide rotating, steady, flashing or strobe light in a 70mm body. Choose red, yellow, green, blue or white indication, with no sound, an intermittent beep or police-siren sound. Screw, magnetic and L-shaped bracket options suit different mounting arrangements.
SMD LEDs illuminate a PC lens above an ABS base. High-brightness LED components have a typical life reference above 50,000 hours, separately from complete-assembly service life. The beacon body is 86.6mm high; the mounting bracket and fixing hardware are selected for the installation.
| Field | Code | Selection |
|---|---|---|
| Series | CLS | Single-color tower light |
| Size | 70 | 70mm body diameter |
| Color | R | Red |
| Y | Yellow | |
| G | Green | |
| B | Blue | |
| W | White | |
| Sound | Omitted | No sound |
| A | Intermittent beep | |
| C | Police-siren sound | |
| Light mode | X | Rotating-light mode |
| T | Steady | |
| W | Flashing | |
| B | Strobe | |
| Supply | J | 12VAC/DC |
| B | 24VAC/DC | |
| M | 220VAC | |
| Function | Omitted | Regular version; IP43 single-light protection |
| F | IP65 version | |
| K | Anti-interference version | |
| Mount | Omitted | Fixed screw installation |
| F | Magnetic mounting; specify its configuration separately | |
| E | L-shaped bracket | |
| Cable length | L02 | 0.2m |
| L1–L5 | L1 indicates1m; length is not limited to L5 | |
| Connection | Omitted | Free cable ends |
| M… | M-type connector; specify its complete configuration | |
| D… | DT-type connector; specify its complete configuration | |
| A… | AMP-type connector; specify its complete configuration | |
| S… | SM-type connector; specify its complete configuration | |
| Cable material | Omitted | PVC sheathed cable |
| U | PUR sheathed cable | |
| VP | Shielded PVC sheathed cable | |
| UP | Shielded PUR sheathed cable |
CLS70-R/CXB-EL02 selects a red beacon with siren sound, rotating-light mode, 24VAC/DC supply, an L-shaped bracket and 0.2m cable. B identifies strobe in the light-mode position and 24VAC/DC in the supply position; the code's position determines its meaning.
All eight common models below have a red lens, X rotating-light operation and 0.2m cable. Other colors and light modes are selected through the ordering options.
| Model | Sound | Supply | Mount |
|---|---|---|---|
| CLS70-R/XB-L02 | No sound | 24VAC/DC | Screw |
| CLS70-R/XM-L02 | 220VAC | ||
| CLS70-R/CXB-L02 | Police-siren sound | 24VAC/DC | |
| CLS70-R/CXM-L02 | 220VAC | ||
| CLS70-R/XB-EL02 | No sound | 24VAC/DC | L-shaped bracket |
| CLS70-R/XM-EL02 | 220VAC | ||
| CLS70-R/CXB-EL02 | Police-siren sound | 24VAC/DC | |
| CLS70-R/CXM-EL02 | 220VAC |
| Version | Rating condition | Maximum current | Power reference |
|---|---|---|---|
| CLS70 without sound | 12VDC | 43mA | 0.6W |
| 24VDC | 91mA | 2.2W | |
| 220VAC | 76mA | 1W | |
| CLS70-C siren | 12VDC | 50mA | 0.6W |
| 24VDC | 97mA | 2.4W | |
| 220VAC | 160mA | 2.7W |
Current and power references are separately stated values. The A intermittent-beep option is included in the ordering guide; its separate electrical and sound-level ratings are not specified here.
| LED bead color | Bead voltage |
|---|---|
| Red | 1.8–2.2V |
| Yellow | |
| Green | 2.8–3.4V |
| Blue | |
| White |
LED bead voltage describes the component, separately from the beacon's supply.
| Parameter | Specification |
|---|---|
| Maximum sound level | CLS70-C siren version: 90dB; measurement distance unspecified |
| Flashing frequency reference | 55–65 flashes/min; nominal60 flashes/min |
| Body diameter / height | 70mm / 86.6mm |
| Lens / base | PC / ABS |
| Cord specification | UL1007 |
| Installation screws | White plated finish |
| Ambient temperature | −30°C to +50°C |
| Relative humidity | ≤85% |
| Protection | Regular single light: IP43; F function option: IP65 |
| Altitude | ≤2000m |
The flashing-frequency reference does not specify rotating-light speed or the pulse sequence of the strobe version.
| Compliance reference | Standard | Document reference |
|---|---|---|
| CE | EN61058 | Document number not specified |

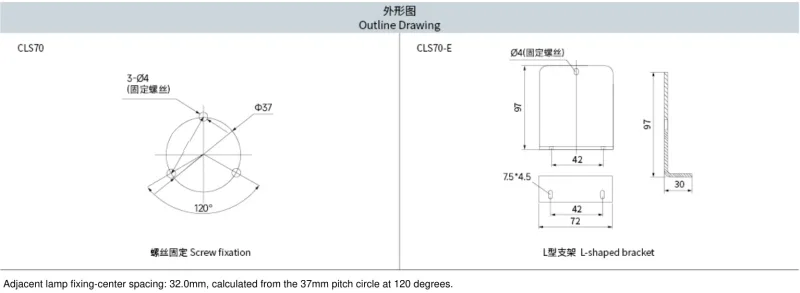

Mounting brackets are purchased separately. Dimensions below are in mm. The 86.6mm body height includes the lower 32.5mm base section.
| Configuration / reference | Dimensions in mm |
|---|---|
| CLS70 screw mounting | BodyØ70×86.6; lower base section32.5; three Ø4 fixing points onØ37 at120°; calculated adjacent-center spacing32.0 |
| CLS70 with E mount / CLS70-E L-bracket | Same beacon body; bracket envelope97; vertical section97×72; projection30; Ø4 fixing reference; slots7.5×4.5 on42 centers |
Disconnect power before installation, wiring, work on the beacon or maintenance. Check the selected model and rated supply, secure the fixing hardware, exclude conductive dust and liquid, and protect wiring from impact and abrasion. Seek qualified service for complex faults and high-voltage components.
These beacons are intended for industrial signaling. High-reliability infrastructure, personal-safety functions, harsh environments, fire or explosion hazards, military uses and aerospace projects require a specifically designed and expressly confirmed configuration.
