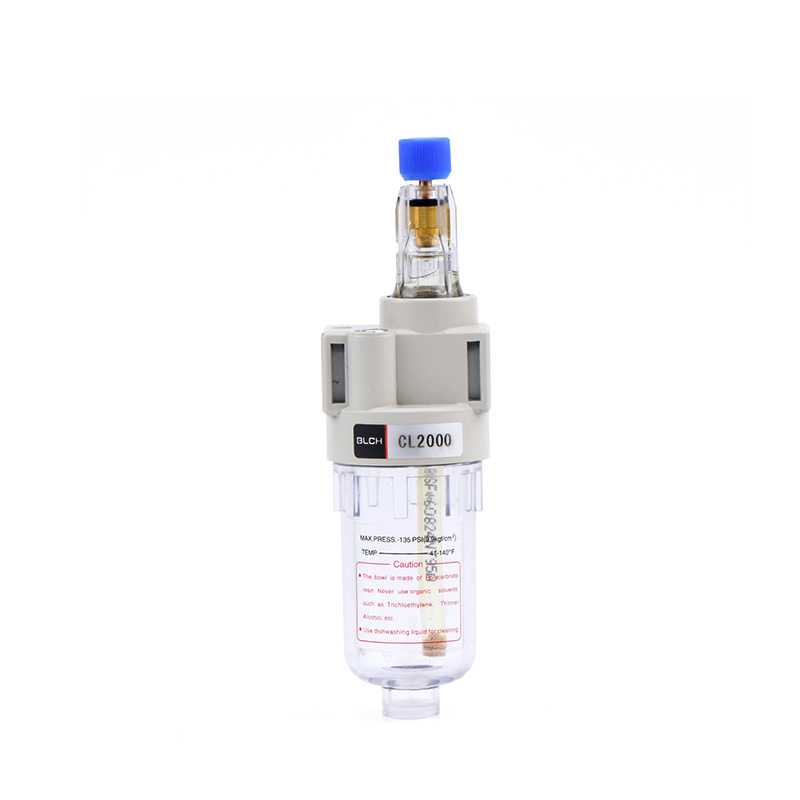

CL2000 is a compact air lubricator with a 1/4″ connection and a maximum flow of 650L/min (ANR). It introduces oil mist into compressed air for components requiring lubrication. The aluminum alloy body carries a transparent polycarbonate bowl without an external guard, allowing the oil level to be viewed.
| Parameter | CL2000 |
|---|---|
| Port Rc(G) | 1/4″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Recommended lubricant | Turbine No.1 oil, ISO VG32 |
| Body material | Aluminum alloy |
| Bowl material | Polycarbonate (PC) |
| Bowl guard | Without guard |

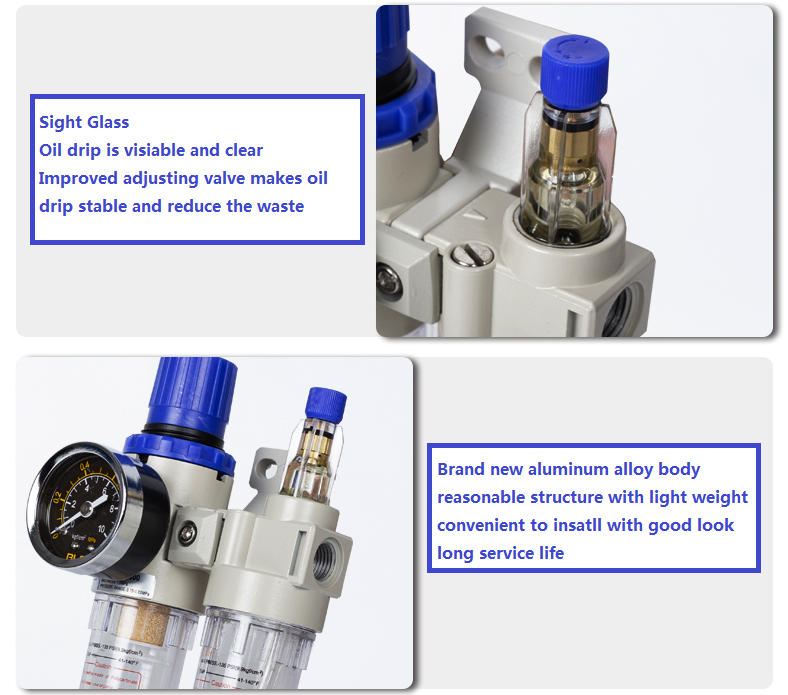

The clear sight dome allows the oil drip to be observed while the feed is adjusted. The illustration shows the lubricator beside a separate air preparation component; this series covers the CL2000 lubricator.
The CL2000 catalogue outline shows a 40mm width, 39mm side dimension and 138mm overall height. The attached Pneumatic Components Catalogue includes the lubricator drawing and connection layout.
