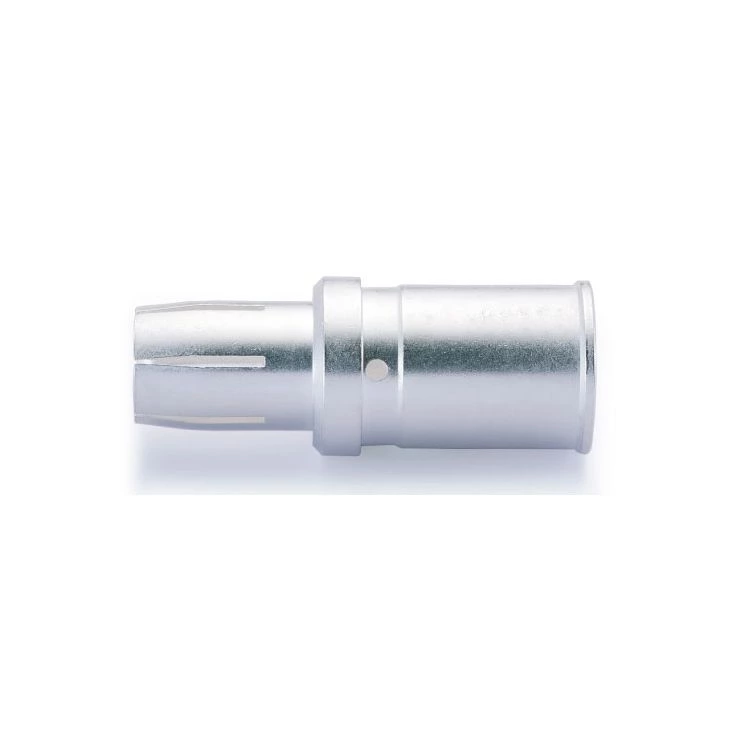

CH200 contacts terminate power conductors in the corresponding HM 200A crimp-contact positions. CHSM200 identifies a male pin and CHSF200 a female socket. Choose the contact barrel for the conductor cross-section.
| Conductor cross-section | Male contact | Female contact | Stripping length |
|---|---|---|---|
| 25mm² | CHSM200-25 | CHSF200-25 | 22.5mm |
| 35mm² | CHSM200-35 | CHSF200-35 | 22.5mm |
| 50mm² | CHSM200-50 | CHSF200-50 | 22.5mm |
| 70mm² | CHSM200-70 | CHSF200-70 | 22.5mm |
| Property | Specification |
|---|---|
| Current class | 200A |
| Contact material | Copper alloy |
| Surface | Silver-plated |
| Contact resistance | ≤0.3mΩ |
| Termination | Crimp |
Match the selected contact to the module's specified contact family and the crimp tool and die for the conductor. Set the finished assembly's operating current according to its module, conductor and temperature conditions.
