CFR2000 combines compressed-air filtration and pressure regulation in a compact unit with a 1/4″ connection. The filter removes solid particles and condensate, while the regulator provides adjustable outlet pressure. A lockable knob helps prevent unintended changes to the setting.
| Parameter | CFR2000 |
|---|---|
| Port Rc(G) | 1/4″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Body material | Aluminum alloy |
| Bowl material | PC |
| Bowl guard | Without |

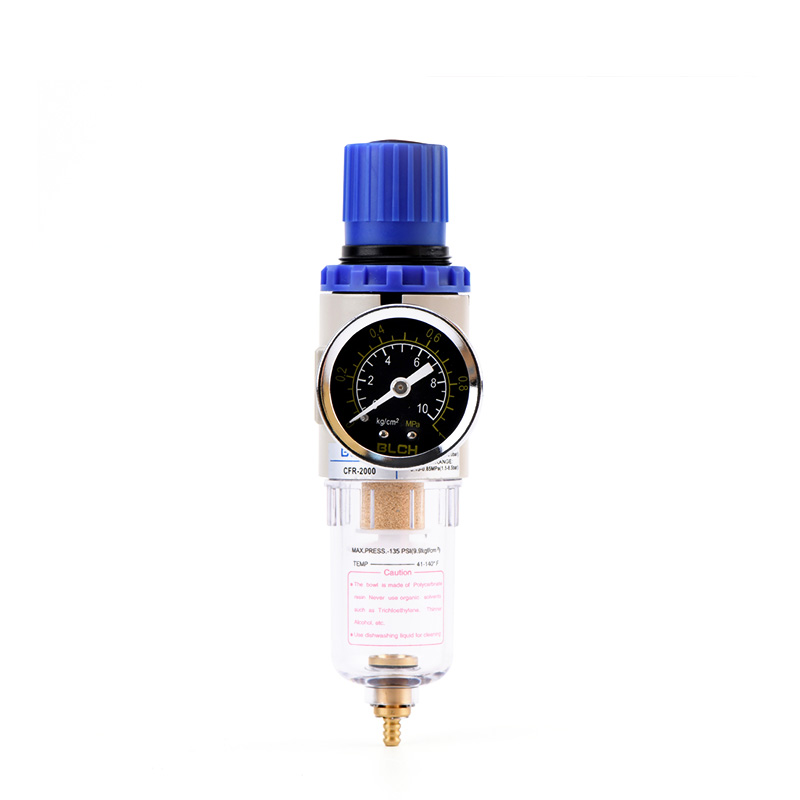

The pressure gauge is mounted on the front of the illustrated unit, with the adjustment knob above and the drain below the bowl. The transparent bowl allows visual inspection of collected condensate and the filter element. A quick-release bayonet bowl supports access for element replacement.
Select CFR2000 when a combined filter and regulator is required. The attached Pneumatic Components Catalogue includes its installation drawing alongside the separate C-series filter, regulator and lubricator components.
