CFC2000 combines a CFR2000 filter-regulator with a CL2000 lubricator in a two-unit air preparation set. Its 1/4″ ports and 650L/min maximum flow rating suit installations that need filtration, pressure adjustment and lubricated air in one assembly.
| Item | CFC2000 specification |
|---|---|
| Filter-regulator | CFR2000 |
| Lubricator | CL2000 |
| Port size Rc(G) | 1/4″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Recommended oil | No. 1 turbine oil, ISO VG32 |
| Body | Aluminum alloy |
| Bowls | Polycarbonate (PC) |
| Bowl guards | Without guards |
The filter-regulator incorporates the pressure adjustment knob and gauge. Transparent bowls allow the collected liquid and lubricating oil to be seen. A drain is fitted beneath the filter bowl, and the lubricator has a transparent sight dome.

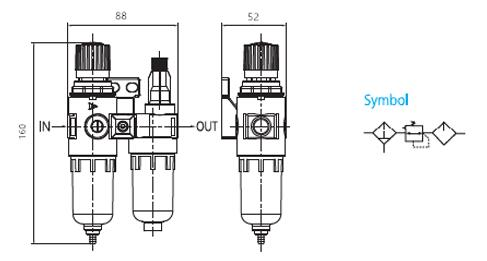

The outline shows an 88mm width, a 160mm vertical dimension and a 52mm side-view dimension. Follow the indicated inlet and outlet direction, and allow access to the adjustment knob and drain.
The attached Pneumatic Components Catalogue covers this product family and the wider pneumatic range.
