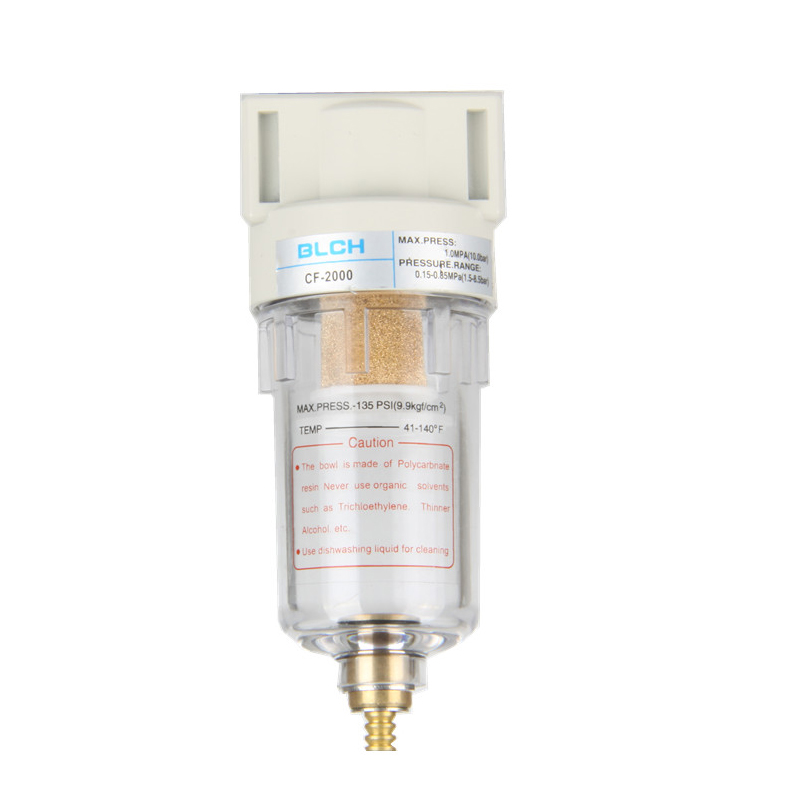

CF2000 is a compact compressed-air filter with a 1/4″ connection and a maximum flow rating of 650L/min (ANR). Its filter element separates solid particles and condensate from the air stream. The transparent PC bowl makes collected condensate and the element visible.
| Parameter | CF2000 |
|---|---|
| Port Rc(G) | 1/4″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Body material | Aluminum alloy |
| Bowl material | PC |
| Bowl guard | Without |

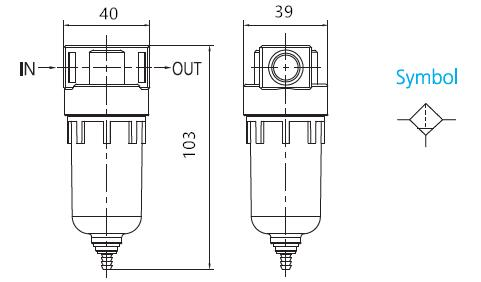

The outline shows a 40mm front width, a 39mm side profile and a 103mm vertical dimension. Air passes through the side inlet and outlet, with the drain located at the bottom. The quick-release bayonet bowl provides access for element replacement.
The attached Pneumatic Components Catalogue includes the CF2000 filter and other C-series air preparation components.
