CDT6-2T Dual On-Delay Timers and Independent Outputs

CDT6-2T Dual On-Delay Timer Range Representative Housings

Series Part Number

Part Number:	CDT6	-	2T	2	10	M
Explanation:	Product Family CDT6 - DIN rail time relay		Series 2T - Two independently adjustable power-on delays	Contact Arrangement 2 - Two changeover contacts with independently set delays	Contact Current Rating 10 - 10A contacts; AC-15 operational current 2.5A at 250VAC 16 - 16A contacts; AC-15 operational current 5A at 250VAC	Power Supply M - 220VAC, 50–60Hz W - 12–240VAC/DC; 50–60Hz for AC A–Z letter combinations - Custom voltage

Description

CDT6-2T Independently Adjustable Dual On-Delay Timers

CDT6-2T provides two independently set power-on delays in one 18mm-wide DIN rail timer. The two changeover outputs can switch at different times after the same supply is applied. This supports staggered load switching to reduce coincident starting demand and can replace two separate timers where their required functions match.

Each delay has a range selector and an adjustment knob. The overall timing range is 0.1s to 10 days, with ON/OFF positions. Choose the 10A or 16A contact version and the required supply; the range includes 220VAC and wide-range 12–240VAC/DC options.

Series Part Number Guide

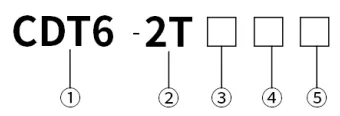

CDT6-2T ordering diagram identifying dual-delay series, two contacts, current rating and supply — Example CDT6-2T210M specifies two independent on-delay outputs, two changeover contacts, the 10A contact version and 220VAC supply.

Field	Codes and meaning
Family	CDT6: DIN rail time relay
Series	2T: dual independently adjustable power-on delay
Contact arrangement	2: two changeover contacts
Contact rating	10: 10A; 16: 16A
Supply	M: 220VAC; W: 12–240VAC/DC; A–Z letter combinations: custom voltage. AC frequency is 50–60Hz.

Common Complete Models

Model	Function	Output contact Ith / Ie	Supply
CDT6-2T210M	Two independently adjustable power-on delays; two changeover contacts	10A / 2.5A	220VAC, 50–60Hz
CDT6-2T216W		16A / 5A	12–240VAC/DC; 50–60Hz for AC

These two common models identify the complete contact/supply selections. The ordering guide also permits the other listed rating, supply and custom choices; use the full specified code when ordering.

Independent Output Timing

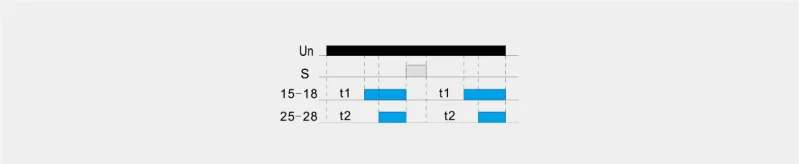

CDT6-2T timing chart with common supply Un, control S and independently delayed outputs 15-18 and 25-28 — After supply Un is applied, output 15–18 closes after t1 and output 25–28 closes after t2. The chart also shows the S input resetting both outputs and restarting their separate delays after release.

Set t1 and t2 independently to determine the two switching times. The example chart shows t2 longer than t1; select the required values for the application. Front-panel R1/R2 indications identify the two relay outputs. The technical table specifies green power and red relay-output indication.

Timing, Electrical and Installation Specifications

Characteristic	Specified value
Function	Two independently set power-on delays
Supply terminals	A1–A2
W supply	12–240VAC/DC; 50–60Hz for AC
W power consumption	0.09–3VA on AC; 0.05–1.7W on DC
M supply	220VAC, 50–60Hz
M power consumption	Maximum 6VA / 1.9W
Supply tolerance	−15% to +10%
Delay range / setting	0.1s to 10 days; front knobs with separate settings for t1 and t2
Range selector positions	Eight time bands plus ON and OFF. Time bands: 0.1–1s, 1–10s, 6–60s, 1–10min, 6–60min, 1–10h, 0.1–1 day and 1–10 days.
Setting accuracy / repeatability	10% / 0.2%
Temperature influence	0.05%/°C referenced to 20°C; equivalent to approximately 0.0278%/°F referenced to 68°F
10A contact version	Two changeover contacts, each 10A at 250VAC/24VDC
16A contact version	Two changeover contacts, each 16A at 250VAC/24VDC
AC-15 operational current at 250VAC	10A contact version: Ie 2.5A; 16A contact version: Ie 5A
Minimum switching power	500mW
Indication	Green power indication; red relay-output indication
Mechanical life	10,000,000 operations
Electrical life, resistive load	100,000 operations
Reset time	Maximum 200ms
Operating temperature	−20°C to +55°C
Storage / transport temperature	−35°C to +75°C
Mounting / orientation	35mm DIN rail; any orientation
Protection / pollution degree	IP20 / 2
Maximum installation altitude	2000m
Conductors / tightening torque	One 2.5mm² conductor or two 1.5mm² conductors; 0.4N·m
Dimensions / weight	90mm high × 18mm wide × 65mm deep; 80g

Connection and Dimension Drawings

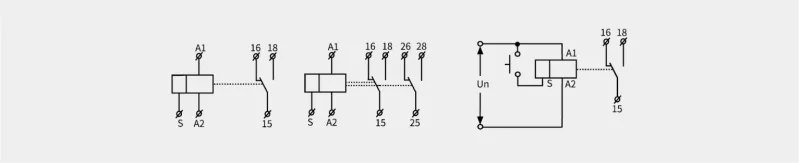

CDT6-2T relay connection symbols showing supply A1/A2, control S and both changeover contact groups — The middle symbol shows both 2T changeovers: 15 common, 16 NC, 18 NO and 25 common, 26 NC, 28 NO. The adjacent views illustrate the first output and supply/control connection. A1/A2 are supply terminals; S is the reset/control input shown in the timing chart.

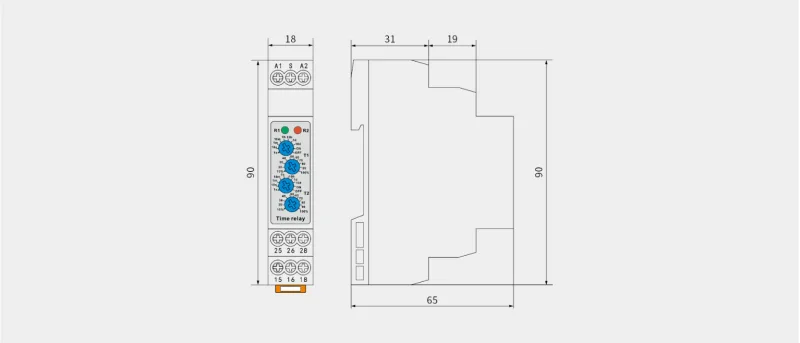

CDT6-2T front and side outline with four adjustment knobs and 90mm by 18mm by 65mm overall dimensions — The module is 18mm wide, 90mm high and 65mm deep. Upper side-profile sections are 31mm and 19mm. The front view shows the two terminal rows and separate range/value knobs for each delay.

The selection document lists CCC with GB/T14048.5 and CE with EN60947-5-1; request certificate document numbers from CNTD as needed. Select the applicable contact duty rating for each controlled load.

The manufacturer requires specially designed equipment and written confirmation for high reliability energy systems, applications involving personal safety or major property risk, harsh or outdoor environments, fire or explosion risks, and military or aerospace use.
