CD Card Edge Sockets

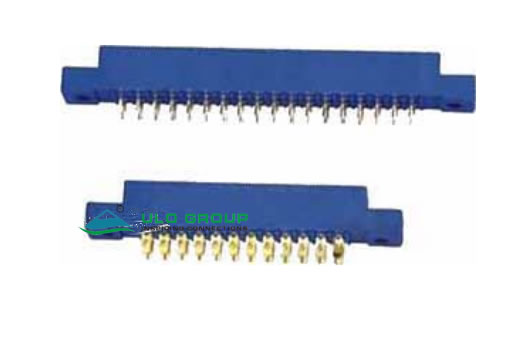

CD452A Solder and Vertical Card Edge Sockets

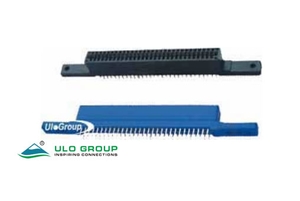

CD448 Black and Blue Card Edge Sockets

Description

Card edge socket selection

CD452A and CD448 have flanged card edge socket bodies with two opposing contact rows. Choose the longitudinal contact pitch and termination style together; the two models have different contact counts and mounting dimensions.

ModelLongitudinal pitchTotal contactsTerminationHousing
ULO-CD452A3.96mm20, 24, 30, 36, 44, 56, 72Solder-eye or vertical PCB terminalPBT
ULO-CD4482.54mm60Vertical PCB terminalThermoplastic

Electrical and material specifications

CharacteristicCD452ACD448
Rated current1AUnspecified
Contact impedance≤30mΩ≤30mΩ
Insulation impedance1000MΩ1000MΩ
Withstand test500VAC for 1 minute500VAC for 1 minute
Operating temperature-20°C to +105°C0°C to +85°C
Storage temperature-20°C to +70°C-20°C to +70°C
Insulating material groupII
Flammability classificationUL94V-0UL94V-0
Contact materialCopper alloyCopper alloy
Continuous operating-voltage ratingUnspecifiedUnspecified

The 500VAC value is a one-minute withstand test. The 1000MΩ insulation value has no separately stated minimum or maximum qualifier.

CD452A ordering

FieldCode or choice
Terminal style009: solder-eye type; 029: vertical PCB type
Total contacts20, 24, 30, 36, 44, 56, 72
CD452A solder or vertical terminal codes and seven contact counts
CD452A ordering sequence specifies terminal style before contact count.

CD452A outline and terminals

The drawing identifies count-dependent longitudinal dimensions A–F but does not provide their numeric table. Use the corresponding count-specific outline when establishing overall length or mounting-hole spacing. The illustrated mounting holes are Ø3.5mm.

FeatureDrawing reference
Contact pitch3.96mm
Body width11.0mm
Body height reference11.8mm
Lower body reference6.4mm
Solder-eye detail2.4mm terminal width; 1.0mm eye-width reference; 2.3mm vertical reference
Vertical PCB terminal detail0.7mm width; 7.1mm projection reference
Section X–X2.0mm, 6.5mm, 0.6mm and 3.9mm section references

The X–X references describe the illustrated section and do not independently specify an allowable mating-board thickness range.

CD452A flanged outline with solder-eye and vertical terminal sections
CD452A A–F length references, mounting holes and two terminal styles.

CD448 ordering

FieldCode or choice
Connector typeS: socket
Contacts60: 60 contacts
Contact plating8: full gold flash; 0: selective gold flash
Housing colourB: black; L: blue
Mounting typeV: vertical
CD448 socket, 60-contact, gold finish, housing colour and vertical mounting codes
CD448 ordering options for the 60-contact vertical socket.

CD448 mounting dimensions

FeatureDimension
Overall length125.7mm
Mounting-hole centre distance116.5mm
Mounting holes2 × Ø3.5mm
Central body length83.0mm
Flange width8.0mm
Body width9.4mm
Body height15.2mm
Flange height reference4.0mm
PCB pin projection4.0mm
Contact pitch2.54mm
PCB terminal-row spacing5.08mm
Terminal cross-section references0.6mm × 0.30mm

The 2.54mm contact pitch runs along the socket; 5.08mm is the transverse spacing between PCB terminal rows.

CD448 overall length, flange holes, 2.54mm pitch and 5.08mm PCB rows
CD448 60-contact socket outline and PCB terminal references.
