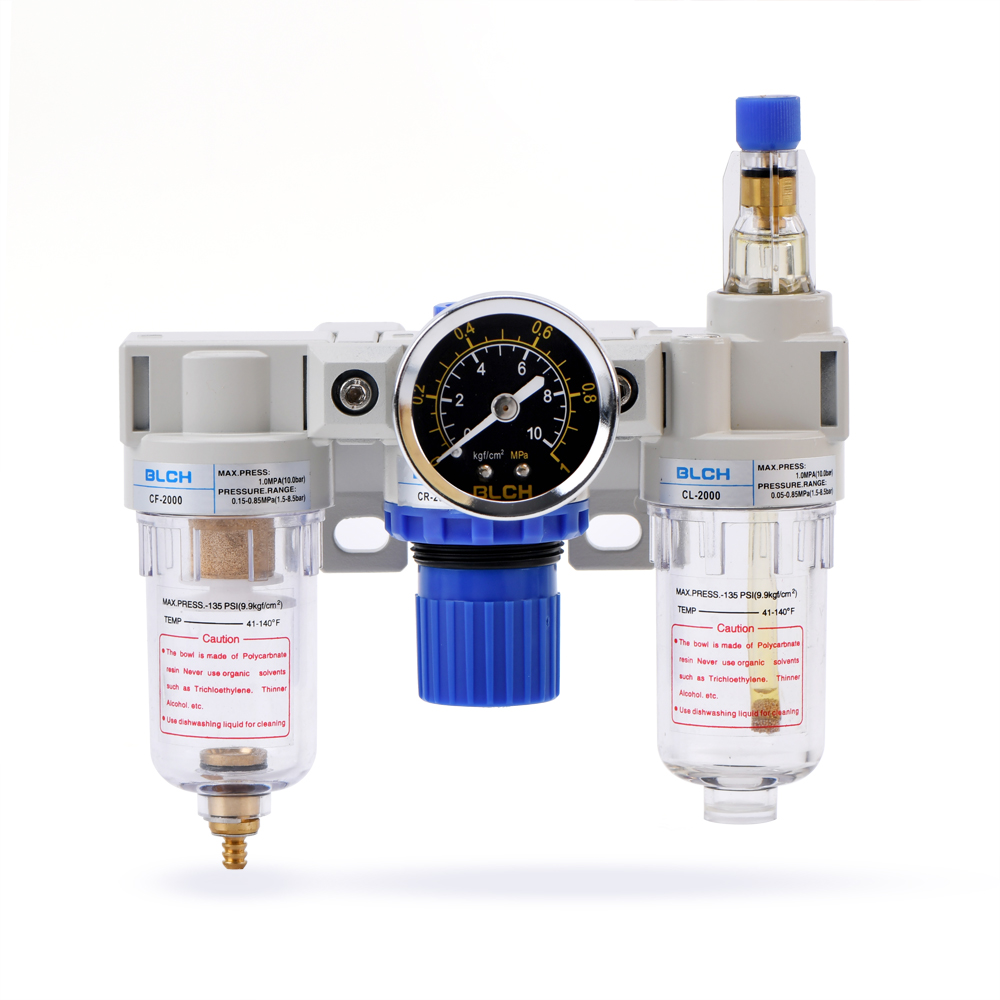

The CC2000 three-unit combination joins a CF2000 air filter, CR2000 pressure regulator and CL2000 lubricator. It provides a 1/4″ connection and a maximum flow of 650L/min (ANR) for compressed-air circuits requiring all three functions.
| Item | CC2000 specification |
|---|---|
| Filter component | CF2000 |
| Regulator component | CR2000 |
| Lubricator component | CL2000 |
| Port size Rc(G) | 1/4″ |
| Maximum flow | 650L/min (ANR) |
| Working pressure | 0.15-0.85MPa |
| Ambient temperature | -5-60°C |
| Recommended oil | No. 1 turbine oil, ISO VG32 |
| Body material | Aluminum alloy |
| Bowl material | Polycarbonate (PC) |
| Bowl guard | Without guard |
The regulator uses a press-in locking mechanism to help keep the pressure setting from moving when the knob is disturbed. A transparent dome allows the lubricator oil dripping to be observed. The filter and lubricator use transparent bowls without external guards.

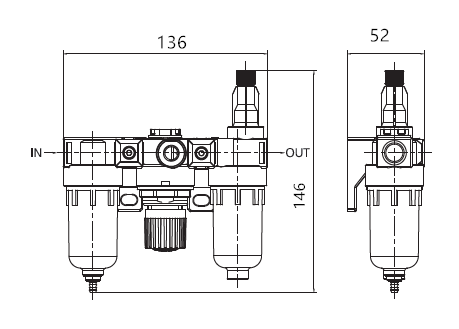

The outline drawing identifies the inlet and outlet direction and shows dimensions of 136mm across the assembly, 146mm vertically and 52mm in the side view. Allow additional access space for adjustment and servicing when arranging the installation.
The attached Pneumatic Components Catalogue covers the wider range of air preparation and pneumatic products.
