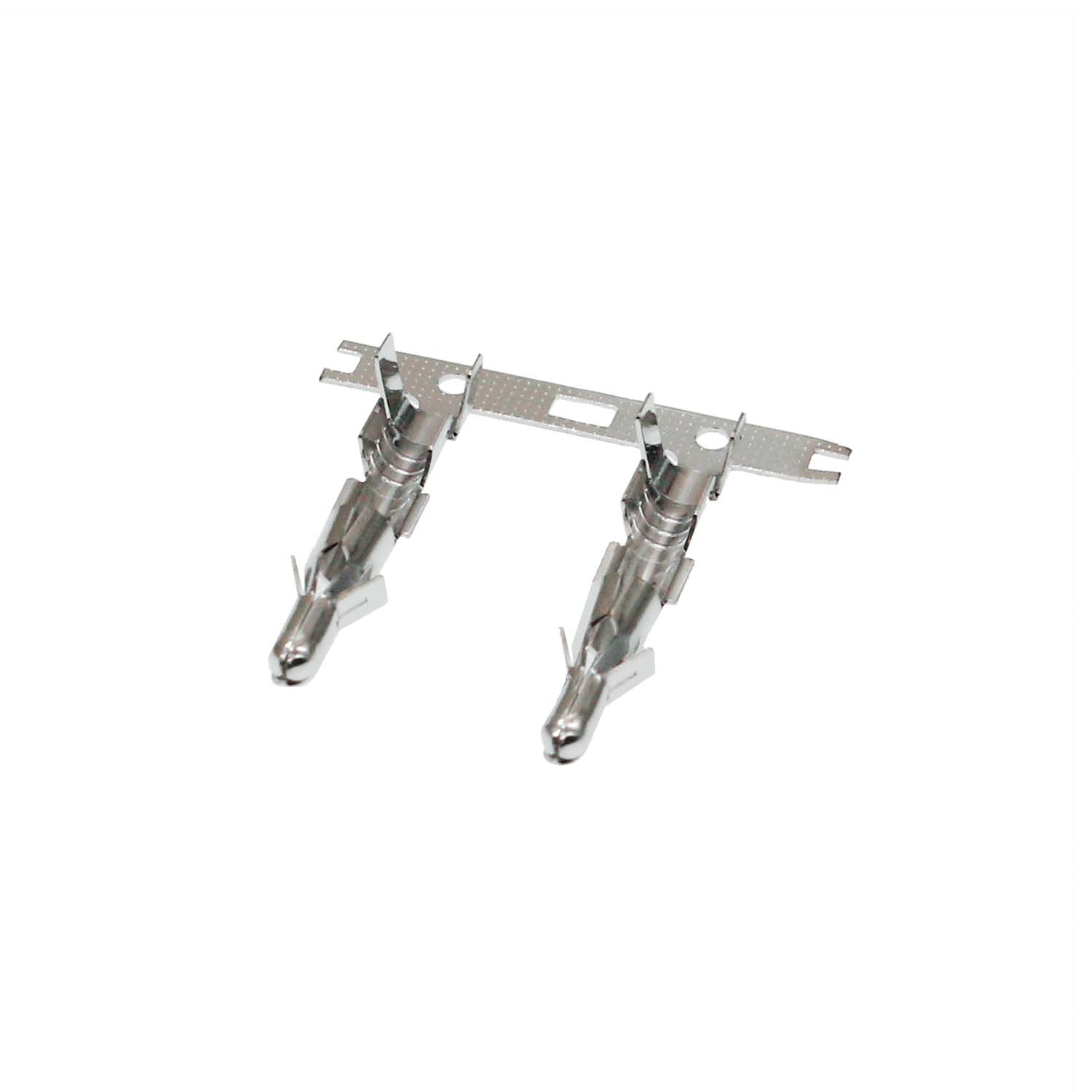

C6701 6.7 mm wire-to-wire terminals provide a reel-packed crimp contact for cable assemblies using 20–14 AWG conductors. The contact uses tin-plated phosphor bronze and carries an 8–12 A current range with 300 VAC/DC maximum voltage.
Match the C6701-TP terminal to the compatible housing and conductor size, then verify the crimp barrel and mating geometry for the final harness.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 6.7 mm |
| Contact material | Tin-plated phosphor bronze |
| Wire range | 20–14 AWG |
| Current range | 8–12 A |
| Maximum voltage | 300 VAC/DC |
| Packaging | Reel |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
