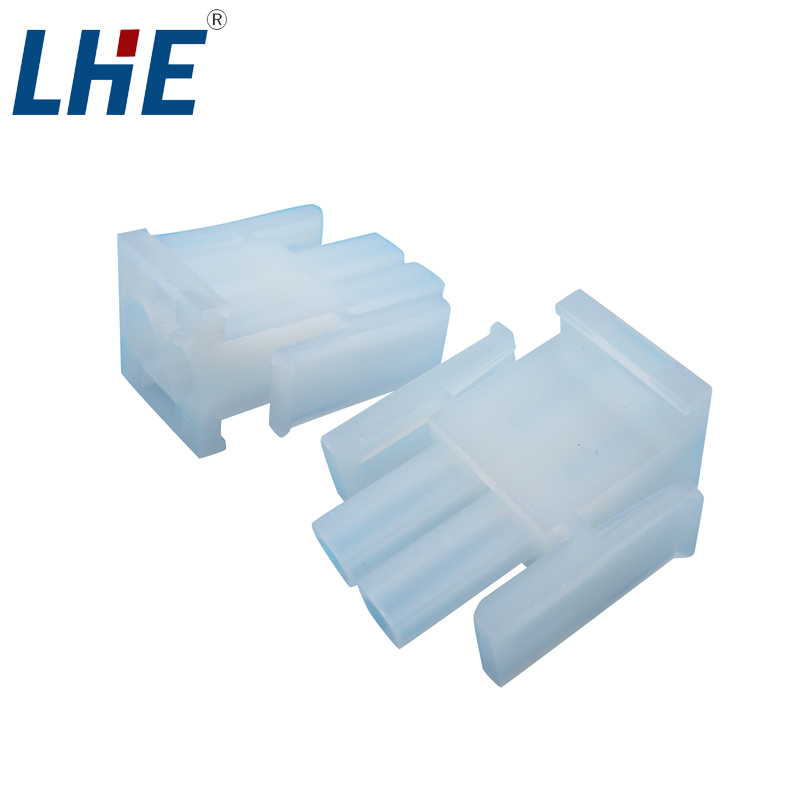

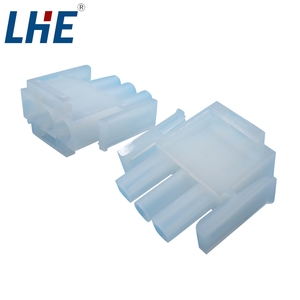

C6351 and C6352 6.35 mm wire-to-wire connectors cover single-, double- and triple-row housings for cable assemblies from 2 to 15 positions. The family uses nylon 66 UL94V-0 housing insulation and includes matching terminal references. Choose the row layout and connector half by circuit density and cable routing.
Select the row count and position layout by the required circuit density, then confirm the C6351 or C6352 mating half and terminal interface for the harness.
| Centerline | 6.35 mm |
|---|---|
| Positions | 2 to 15 |
| Rows | Single, double and triple row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 300 VAC/DC |
| Wire range | 20–14 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
