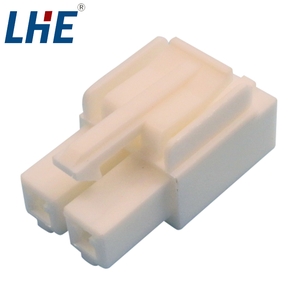

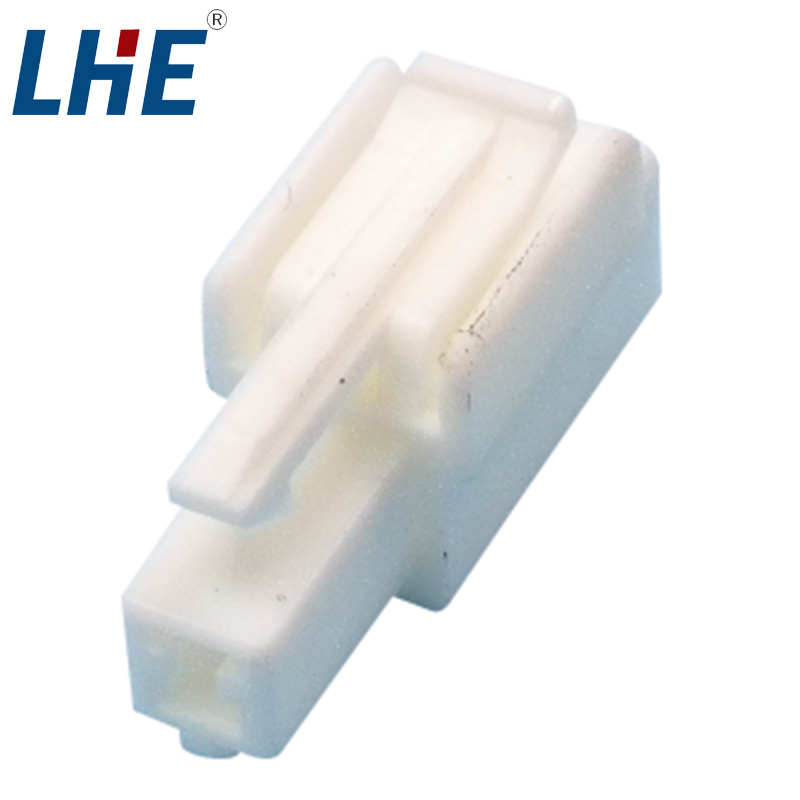

C6203 and C6204 6.2 mm wire-to-wire connectors combine single- and double-row housing formats for cable assemblies from 1 to 9 positions. White and transparent housing variants use nylon 66 UL94V-0 where specified, with matching terminal options for the contact interface.
Choose the row format and position count that fit the cable bundle, then match the C6203 or C6204 terminal where required. Confirm the housing color, orientation and retention details against the selected model drawing.
| Centerline | 6.2 mm |
|---|---|
| Positions | 1 to 9 |
| Rows | Single and double row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 5 A per contact |
| Maximum voltage | 300 VAC/DC |
| Wire range | 18–14 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
