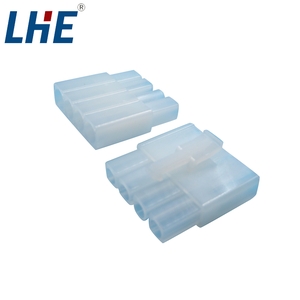

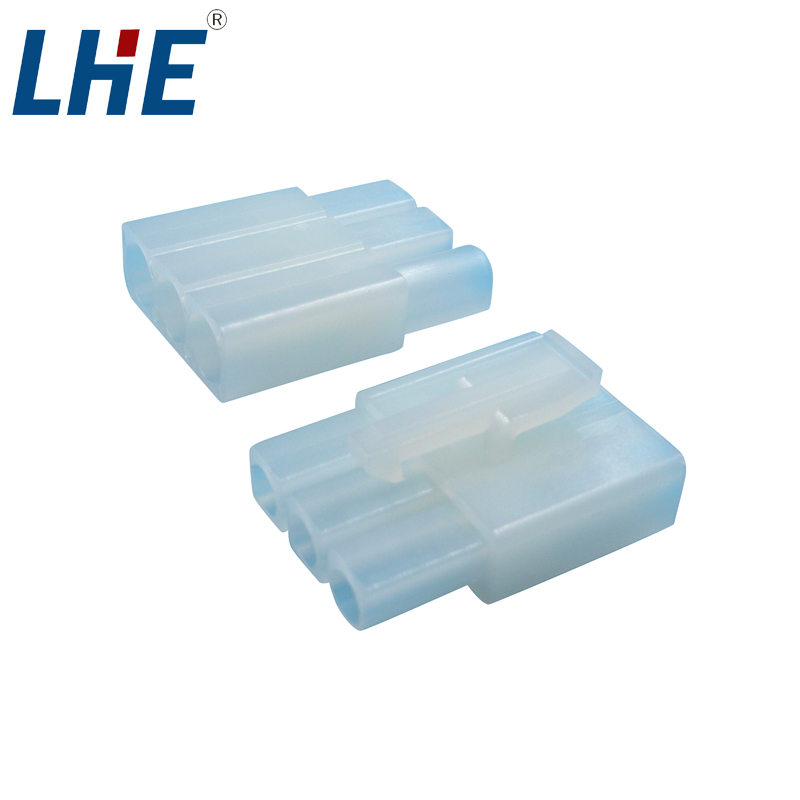

C6201 and C6202 6.2 mm wire-to-wire connectors provide single-row housing options in 2, 3 and 4 positions with matching terminal references. Housing variants are available with nylon 66 UL94V-2 or UL94V-0 insulation, depending on model.
Select the C6201 or C6202 housing by position count and mating half, then pair it with the applicable TP terminal. Confirm the resin grade, cable exit and contact interface for the specific model before production.
| Centerline | 6.2 mm |
|---|---|
| Positions | 2 to 4 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-2 or UL94V-0 |
| Maximum current | 13 A per contact |
| Maximum voltage | 300 VAC/DC |
| Wire range | 26–20 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
