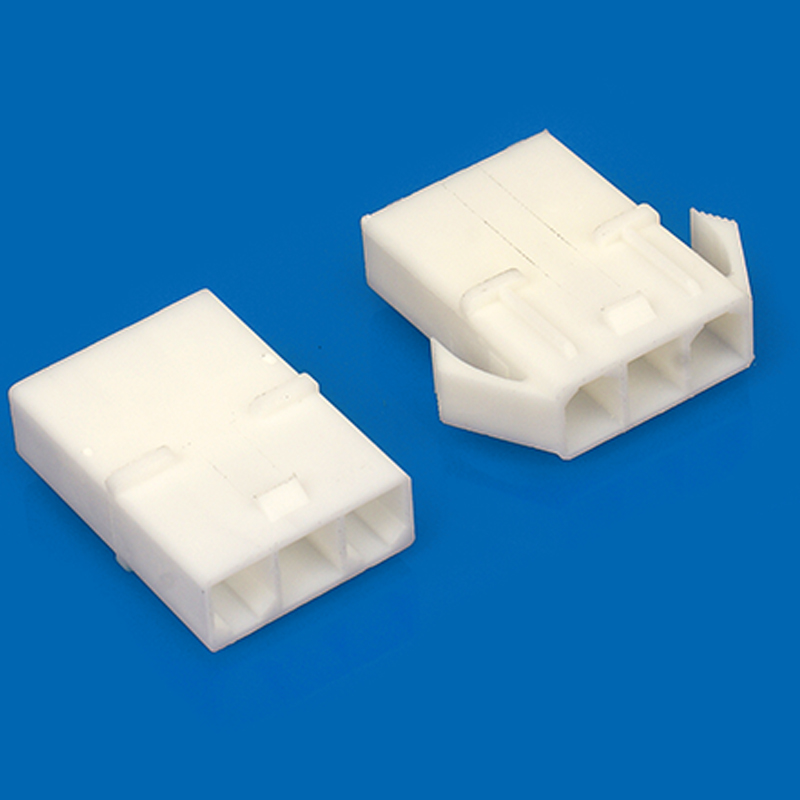

C6001 6.0 mm wire-to-wire connectors provide three-position single-row housings for cable assemblies that need a larger pitch and higher contact rating. The housing variants use white nylon 66 UL94V-0 insulation.

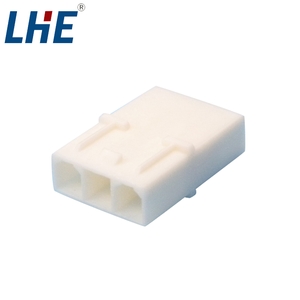

Select the C6001-H03 or C6001-HB03 housing according to the required mating format. Confirm the cable exit, retention features and mating interface for the chosen model before finalizing the harness.
| Centerline | 6.0 mm |
|---|---|
| Positions | 3 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 15 A per contact |
| Maximum voltage | 300 VAC/DC |
| Temperature | -25 °C to 105 °C |
| UL file | E364711 |
