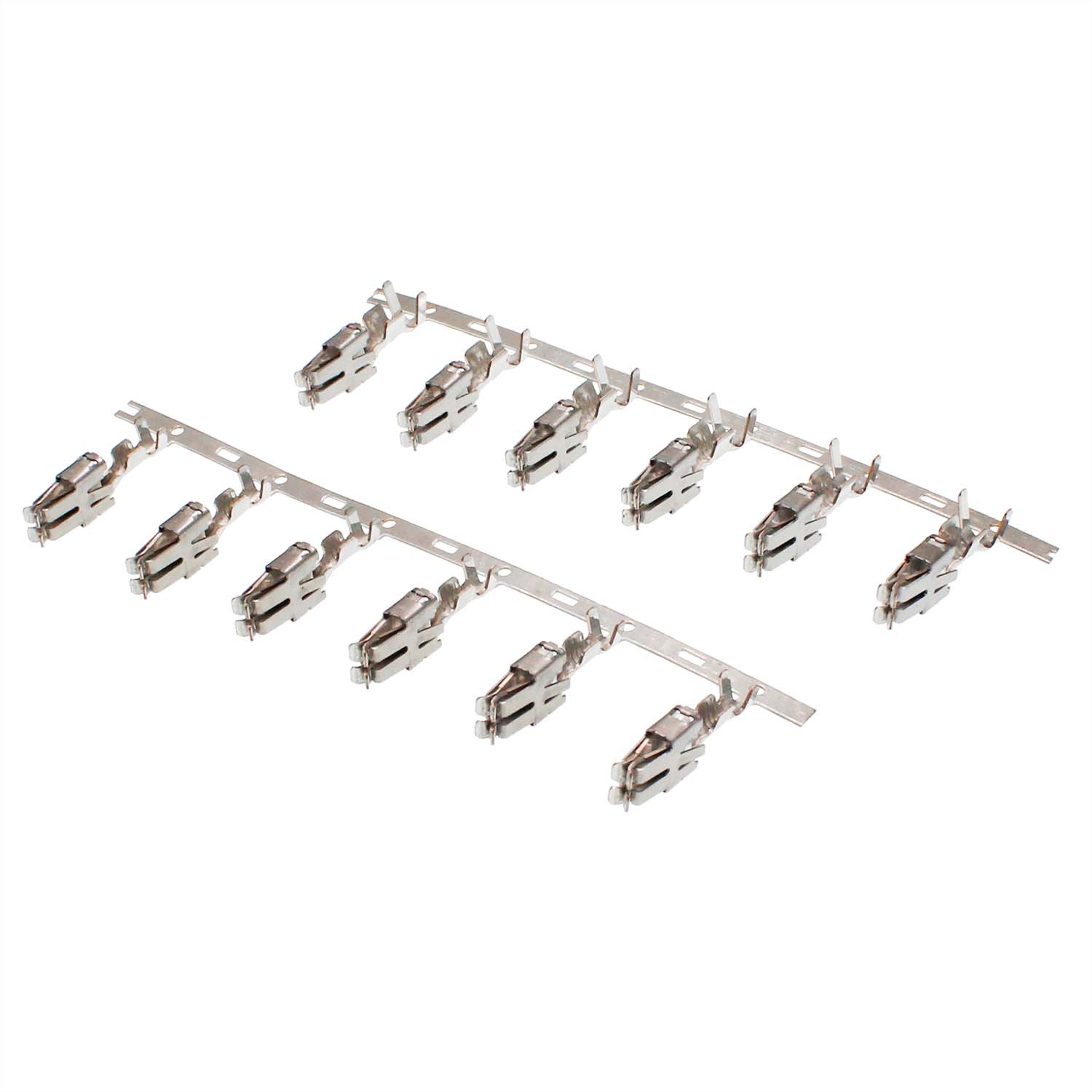

C5001 5.0 mm wire-to-wire terminals provide a reel-packed crimp contact for cable assemblies using 20–14 AWG conductors. Tin-plated phosphor bronze supports the contact interface, with the listed specification giving a 6–16 A current range.
Match the C5001-TP terminal to the compatible housing and conductor size, then verify the crimp and mating dimensions before assembly. Confirm the contact interface and wire preparation for the finished harness.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 5.0 mm |
| Contact material | Tin-plated phosphor bronze |
| Wire range | 20–14 AWG |
| Current range | 6–16 A |
| Maximum voltage | 250 VAC/DC |
| Packaging | Reel |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
