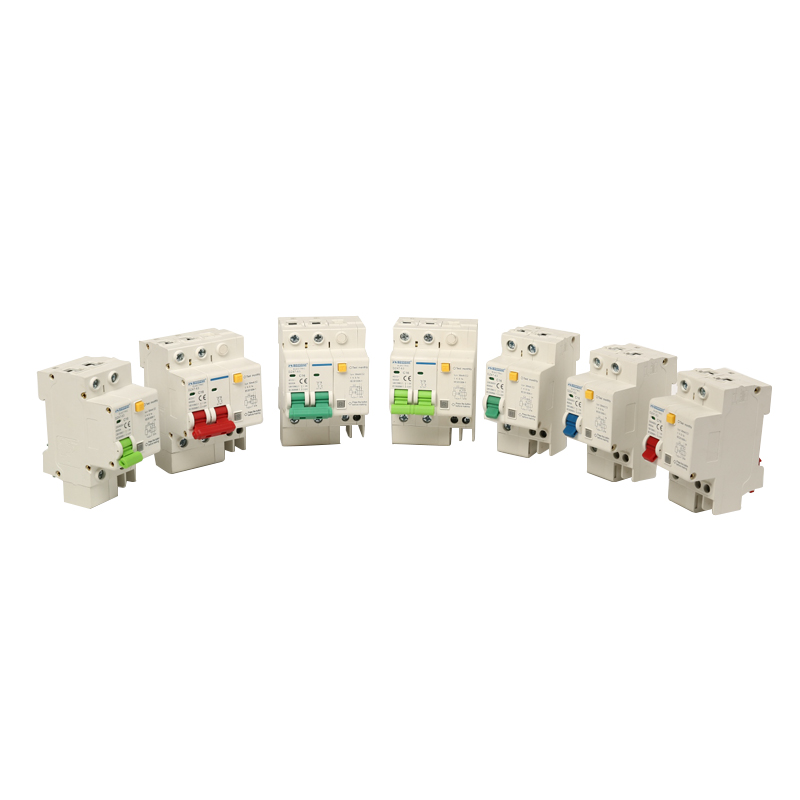

C45LE Leakage Circuit Breaker

The C45LE Leakage Circuit Breaker combines residual current protection with over-current protection for AC 50Hz/60Hz circuits. It can protect lines and motors from overload and short circuit, and can also be used for infrequent line conversion and infrequent motor starting.

Main Technical Parameters

• Type: C45LE.
• Poles: 1P+N, 2P, 3P, 3P+N and 4P.
• Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.
• Rated voltage: 230V for 1P+N/2P, 400V for 3P/3P+N/4P.
• Rated residual action current: 0.03A, 0.05A, 0.1A and 0.3A.
• Conforms with IEC61009.
