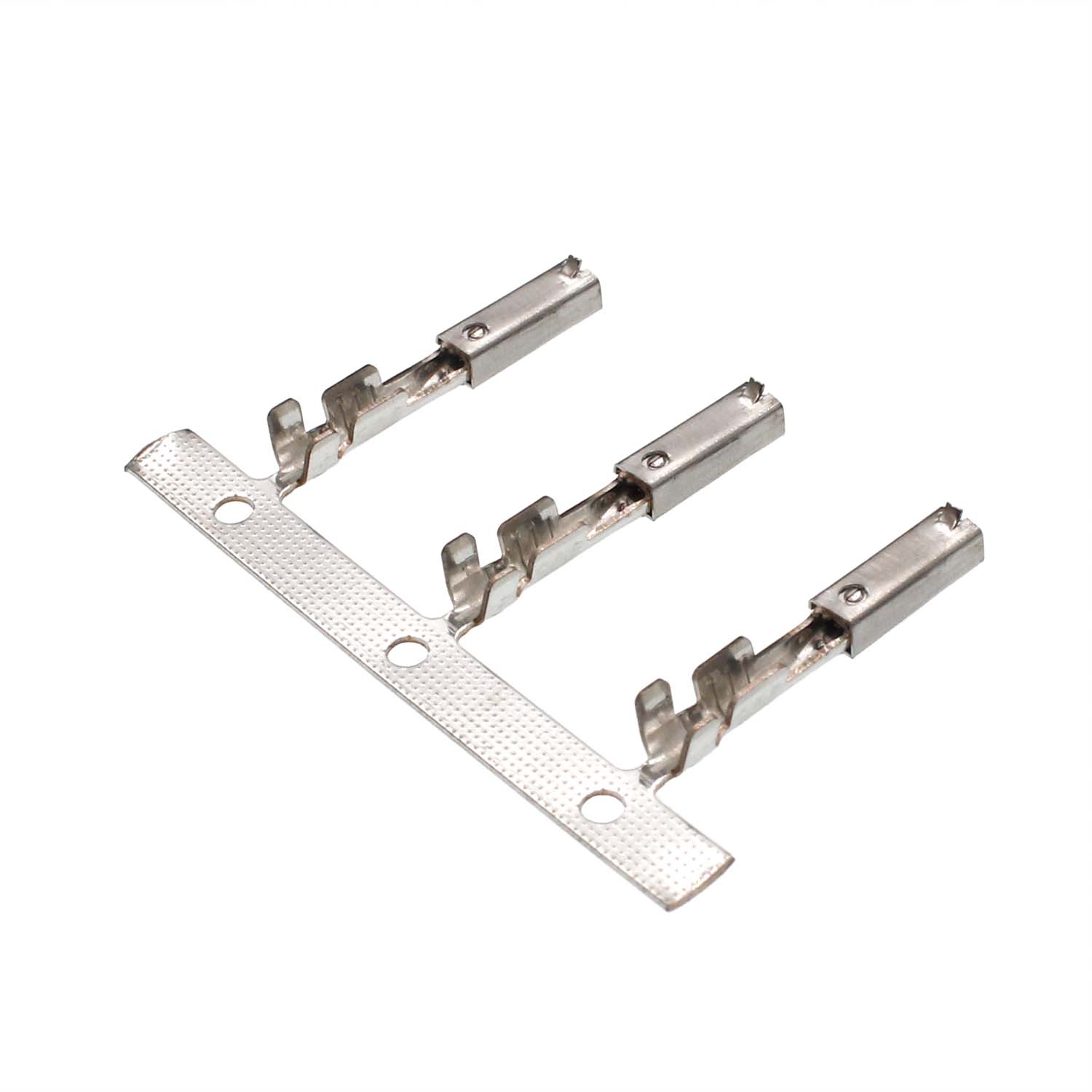

C4507 4.5 mm wire-to-wire terminals provide a reel-packed crimp contact for harnesses using 20–14 AWG conductors. The terminal uses tin-plated phosphor bronze and is rated up to 25 A per contact for the specified connector system.
Use the C4507-TP terminal where the mating housing and wire range match the assembly requirement. Verify the crimp barrel, contact interface and retention geometry on the model drawing before production release.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 4.5 mm |
| Contact material | Tin-plated phosphor bronze |
| Wire range | 20–14 AWG |
| Maximum current | 25 A per contact |
| Packaging | Reel |
| Temperature | -25 °C to 105 °C |
| UL file | E364711 |
