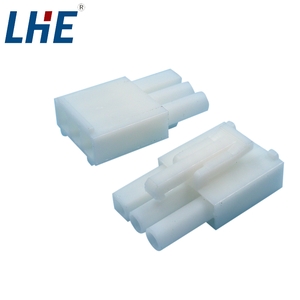

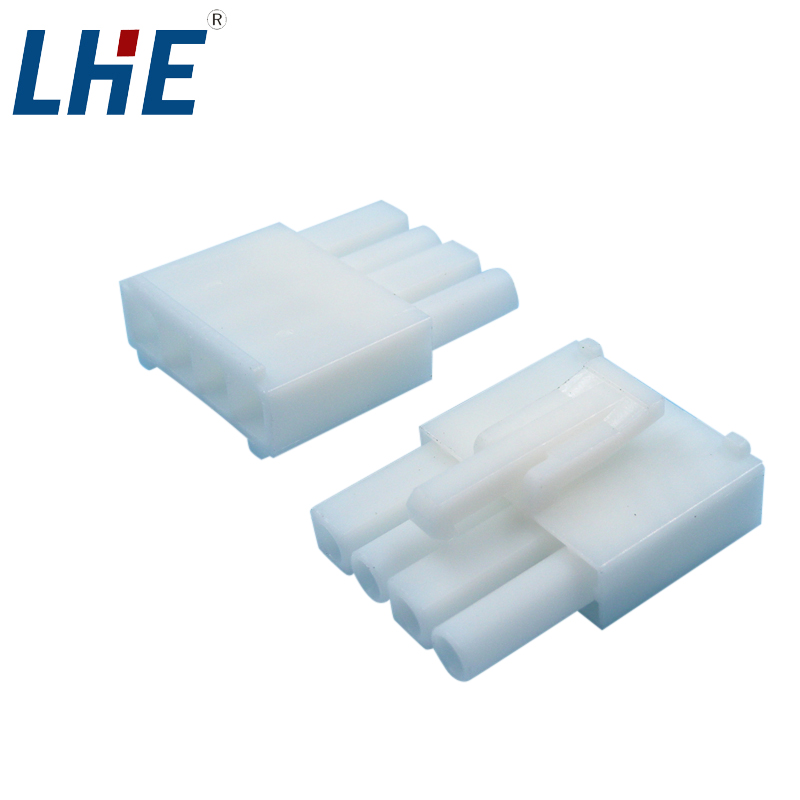

C4501 and C4502 4.5 mm wire-to-wire connectors support single-, double- and triple-row cable assemblies with position choices from 2 to 15. Single-, double- and triple-row housings use nylon 66 UL94V-0 insulation and matching terminal references, with a 10 A per-contact rating.
Select the row configuration and position count that match the required harness density. Confirm the C4501 or C4502 mating half and the terminal interface on the model-specific dimensional information.
| Centerline | 4.5 mm |
|---|---|
| Positions | 2 to 15 |
| Rows | Single, double and triple row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 10 A per contact |
| Maximum voltage | 300 VAC/DC |
| Wire range | 24–20 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
