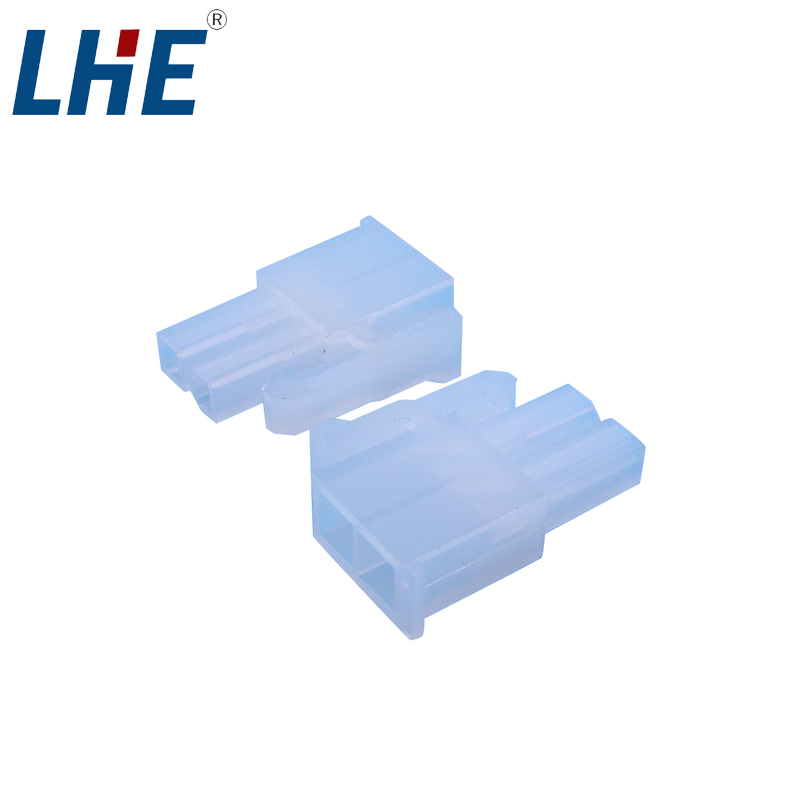

C4201 and C4202 4.2 mm wire-to-wire connectors provide cable-to-cable housing options in single- and double-row formats. Models cover 2 to 28 positions, with C4201 and C4202 housings plus matching terminal references.
Choose the housing by circuit count and row format. Single-row models cover compact interfaces, while double-row options support higher circuit density; verify the required position count and mating orientation on the model drawing.
| Centerline | 4.2 mm |
|---|---|
| Connector system | Wire-to-Wire |
| Positions | 2 to 28 |
| Rows | Single or double row |
| Housing material | Nylon 66 UL94V-0 |
| Model references | C4201 and C4202 housings, C4201-TP and C4202-TP terminals |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Maximum current per contact | 9 A |
| Maximum voltage | 600 VAC/DC |
| Suitable wire range | 28–16 AWG |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
