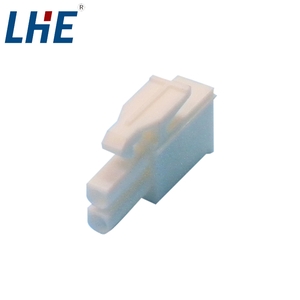

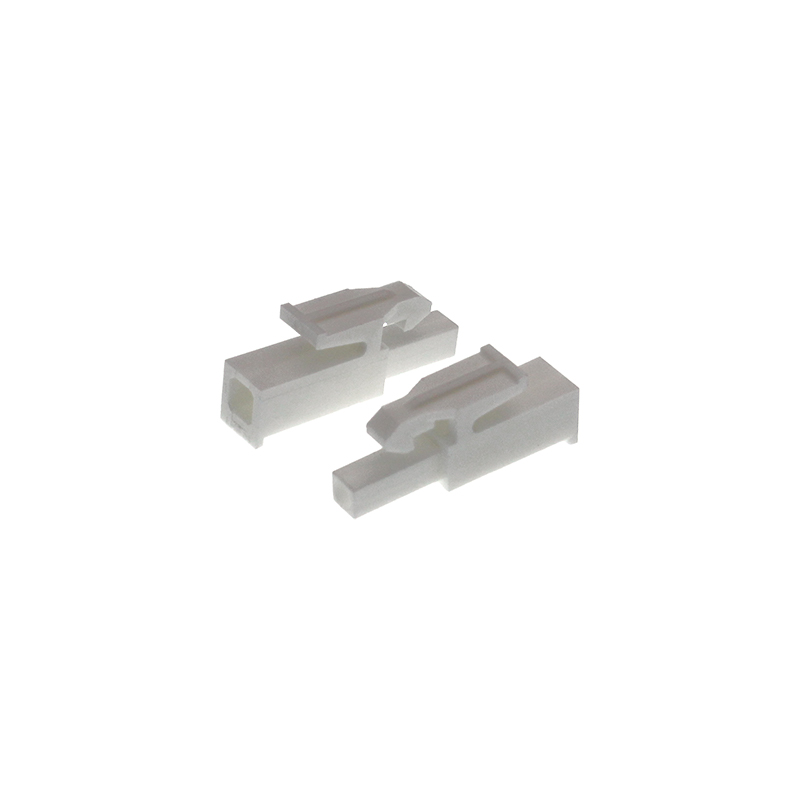

C4141 and C4142 4.14 mm wire-to-wire connectors cover single-, double- and triple-row housing formats for cable assemblies with different circuit densities. The housing range uses nylon 66 UL94V-0 insulation and includes matching terminal references.
Choose the row count and position configuration that fit the harness, then select the C4141 or C4142 mating half and confirm the terminal interface for the chosen layout.
| Centerline | 4.14 mm |
|---|---|
| Rows | Single, double and triple row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 8 A per contact |
| Maximum voltage | 300 VAC/DC |
| Temperature | -25 °C to 105 °C |
| Wire range | 26–18 AWG |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
