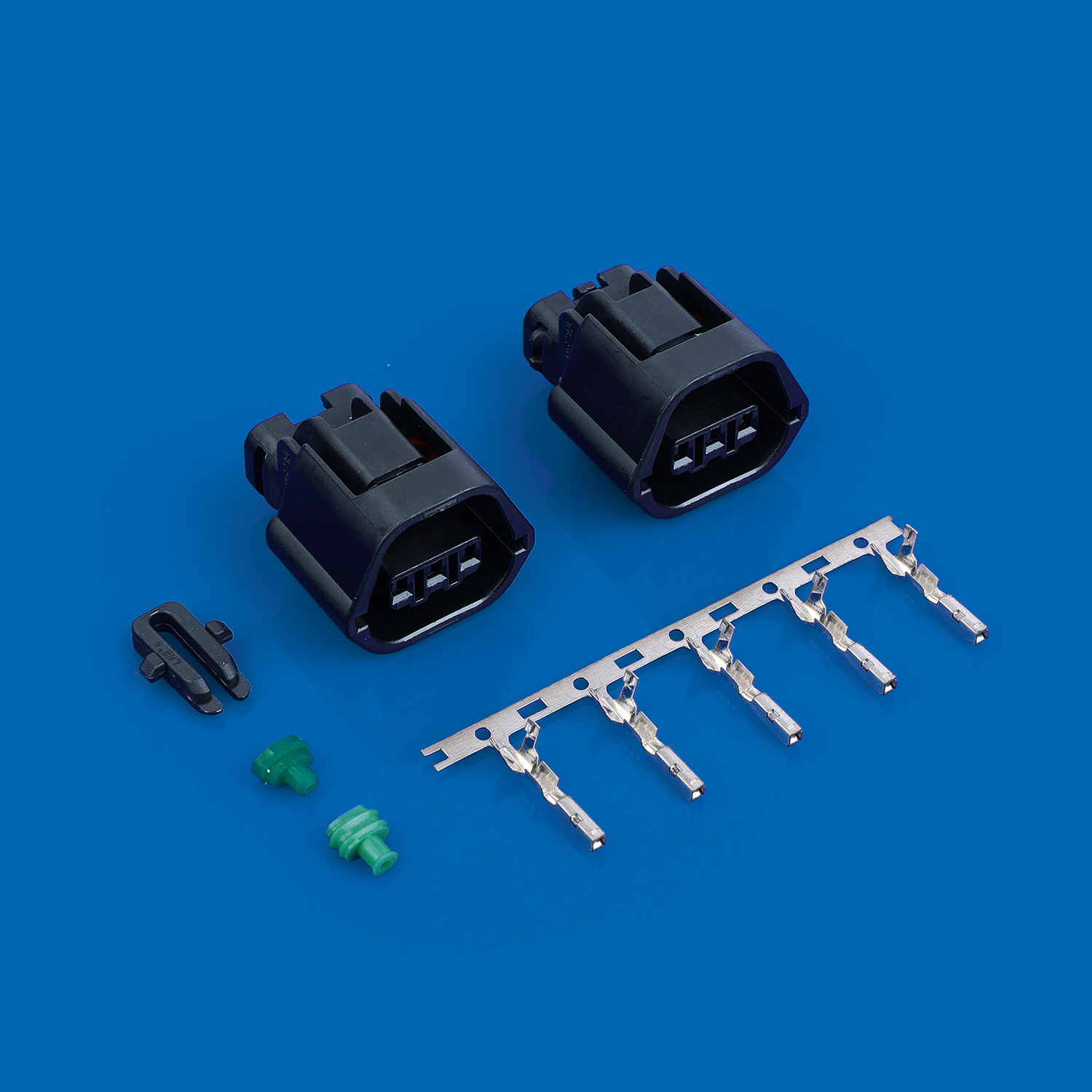

C4101-H03 is a black PBT housing for a three-position automotive connector interface. Its single-row 4.1 mm layout suits compact harness connections that require a defined cable-side housing and compatible crimp-contact system.
Select C4101-H03 for a three-position, single-row connection. Confirm the matching contacts, seals and mating components for the finished harness before release.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 4.1 mm |
| Product role | Housing |
| Positions | 3 |
| Rows | Single row |
| Housing material | Black PBT |
| Maximum current | 3 A per contact |
| Maximum voltage | 12 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Packaging | Bag/Carton |
Use the applicable mating components for the connector system, then verify contact retention, sealing requirements and the final cable assembly dimensions before production.
