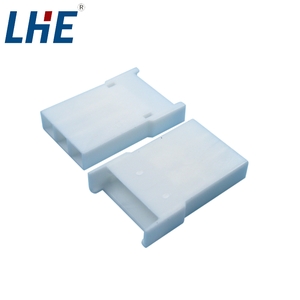

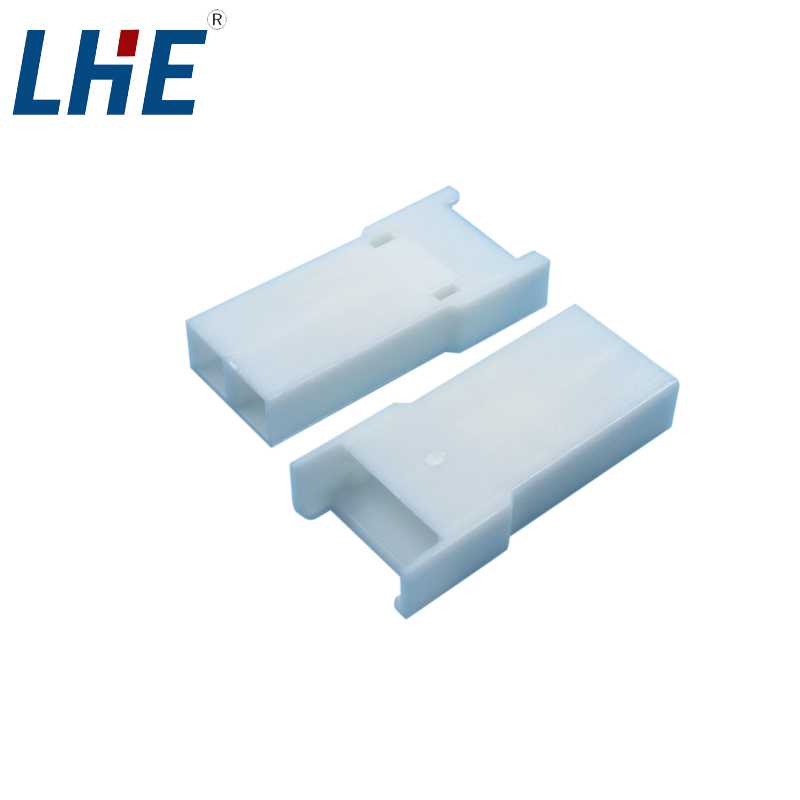

C4001 and C4002 4.0 mm wire-to-wire connectors provide single-row housing choices for 2 to 5 circuit cable assemblies. The family pairs nylon 66 UL94V-0 housings with matching terminal references and keeps the connector selection compact.
Choose the C4001 or C4002 housing by position count and required mating half, then confirm the terminal and wire preparation details for the 4.0 mm assembly.
| Centerline | 4.0 mm |
|---|---|
| Positions | 2 to 5 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 1 A per contact |
| Maximum voltage | 600 VAC/DC |
| Wire range | 28–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
