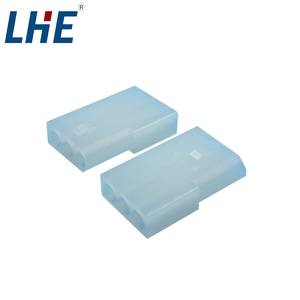

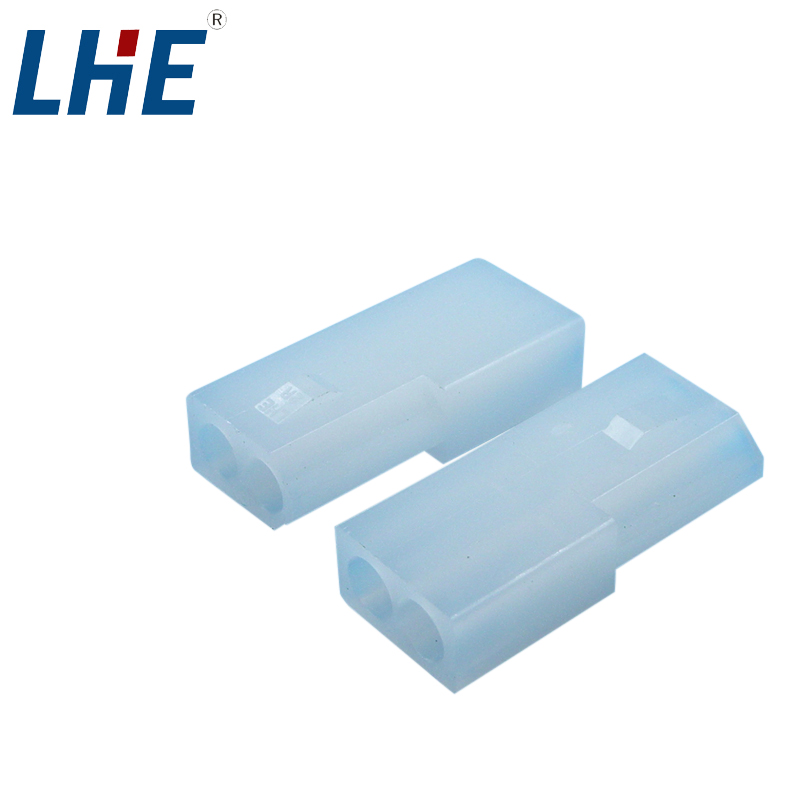

C3681 and C3682 3.68 mm wire-to-wire connectors provide a broad housing range for compact cable assemblies. Single-, double- and triple-row formats support position choices from 2 through 12, allowing the same pitch family to cover different circuit densities.
Choose the row count and position count together to match the required harness layout. The housing family uses nylon 66 UL94V-0 insulation, while the individual model drawing controls mating geometry and retention details.
| Centerline | 3.68 mm |
|---|---|
| Positions | 2, 3, 4, 5, 6, 9 and 12 |
| Rows | Single, double and triple row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 5 A per contact |
| Maximum voltage | 250 VAC/DC |
| Temperature | -25 °C to 105 °C |
| UL file | E364711 |
