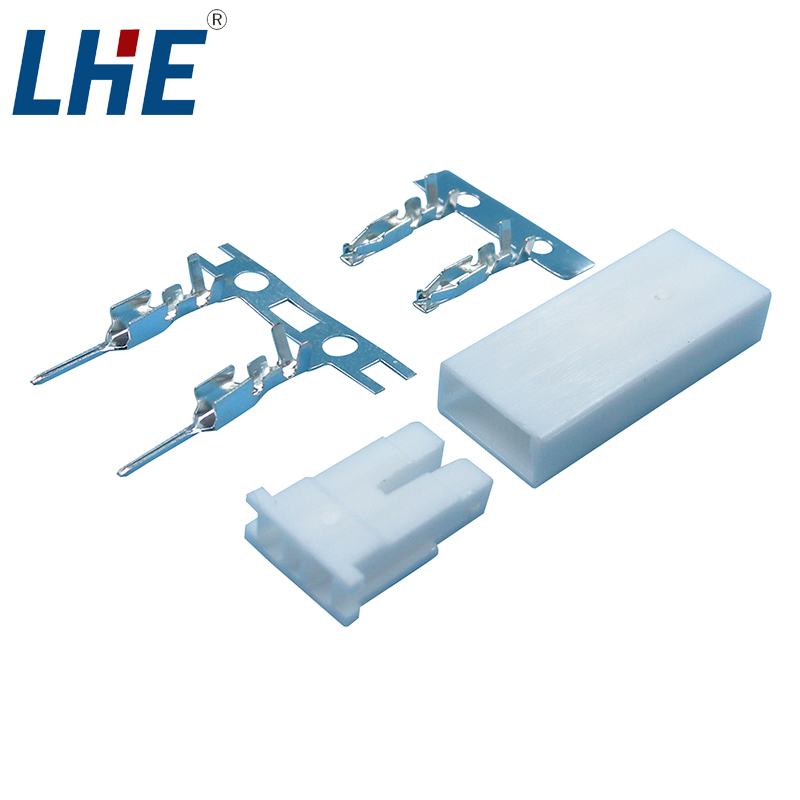

C3501 and C3502 3.5 mm wire-to-wire connectors form a compact two-position family for cable-to-cable assemblies. Housing and terminal variants use a common 3.5 mm connector format, with nylon 66 UL94V-0 insulation specified for the housing products.

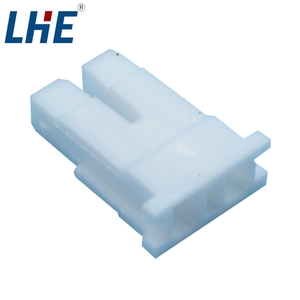

Choose the C3501 or C3502 housing according to the required mating half, then pair it with the corresponding TP terminal. Confirm the contact interface and wire preparation details for the chosen model before assembly.
| Centerline | 3.5 mm |
|---|---|
| Positions | 2 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 1 A per contact |
| Maximum voltage | 1400 VAC/DC |
| Wire range | 28–24 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
