C3501 C3502 3.5 mm Wire-to-Board Headers

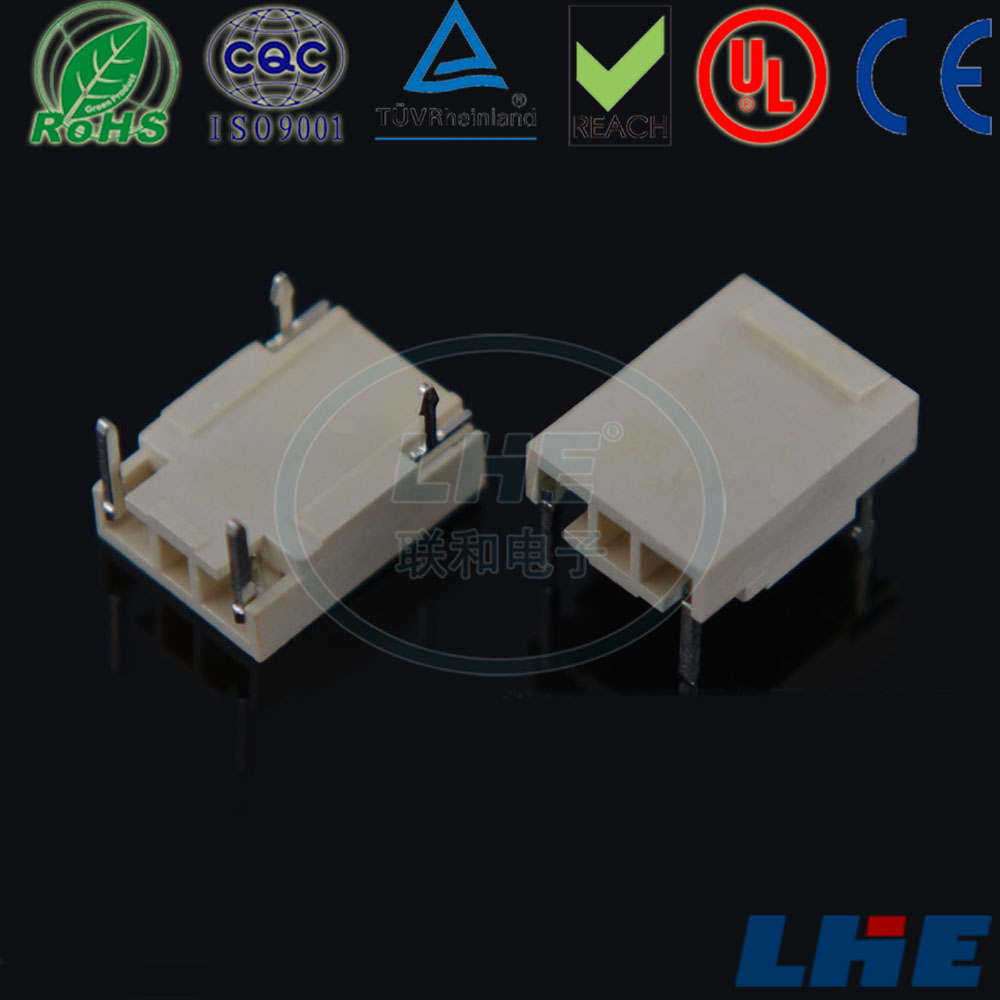

C3501 and C3502 3.5 mm wire-to-board headers provide compact two-circuit board interfaces in vertical and right-angle forms. The headers use Nylon 66 insulation with brass contacts and are specified for 1 A per contact and 1400 VAC/DC maximum voltage.

Header Formats

Choose the Board Entry

Select the vertical or right-angle form to match the PCB layout, then confirm the two-circuit mating housing and mechanical dimensions on the drawing.
