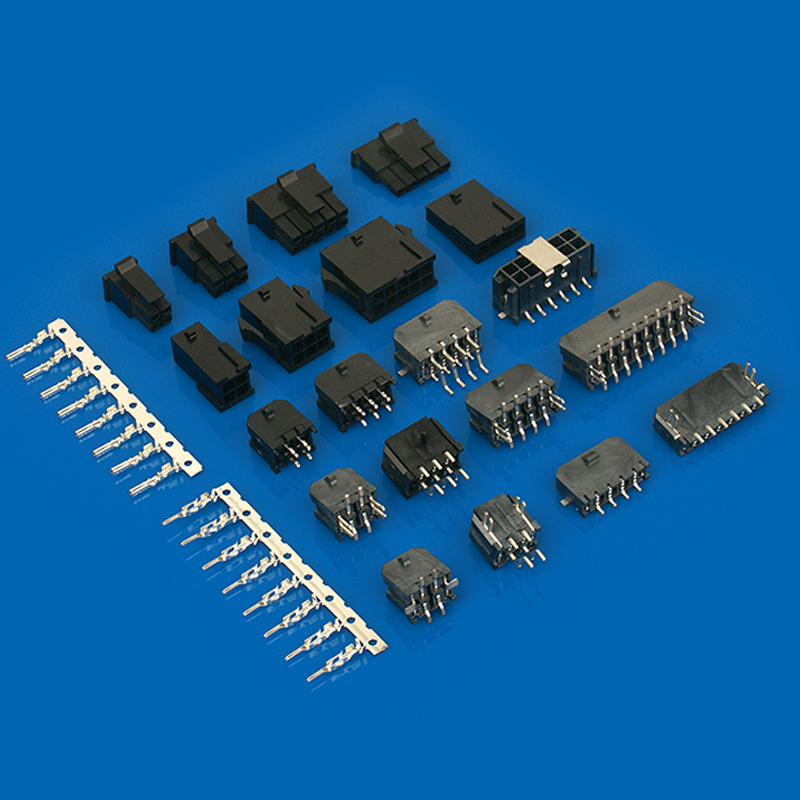

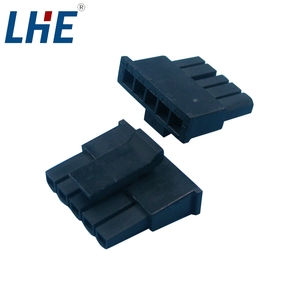

C3001 and C3002 3.0 mm wire-to-wire connectors support cable assemblies that need both single- and double-row housing formats. The housing range spans broad position choices, with nylon 66 UL94V-0 housings and matching terminal references for the contact interface.
Select the row format first, then choose the housing position count for the required circuit density. Choose the C3001 or C3002 mating half and confirm the terminal interface for the selected harness layout.
| Centerline | 3.0 mm |
|---|---|
| Rows | Single and double row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 8.5 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| Wire range | 24–20 AWG |
| UL file | E364711 |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
