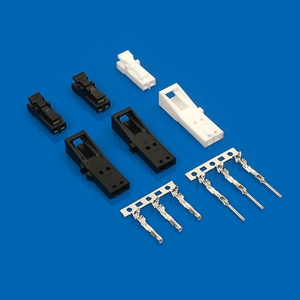

C2541 and C2542 2.54 mm wire-to-wire connectors provide two-position housing and terminal options for compact cable assemblies. Straight, left-angle and right-angle housing formats let the mating orientation follow the harness route.

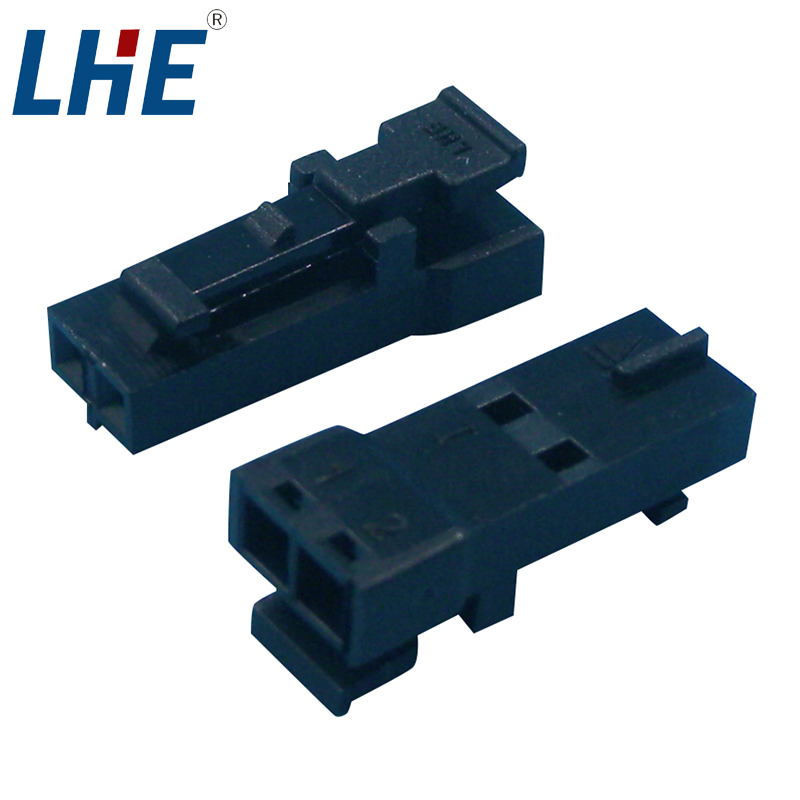

Use the C2541 housing for the required interface, then match the C2542 terminal and confirm the contact path on the applicable drawing. The black housing variants provide a consistent material and color option for the connector assembly.
| Centerline | 2.54 mm |
|---|---|
| Positions | 2 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Wire range | 28–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
