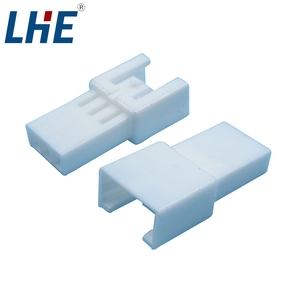

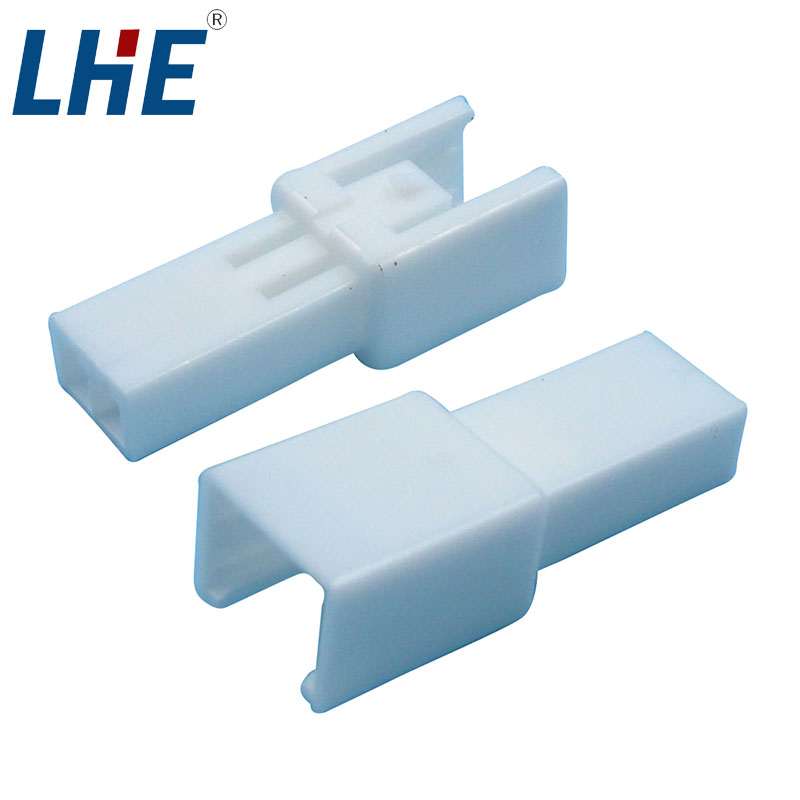

C2507 and C2508 2.5 mm wire-to-wire connectors provide single-row housing options for cable assemblies, with position choices extending from 2 to 15. Matching terminal formats support the contact interface, while each model drawing defines the final crimp and orientation details.
Choose the housing length by circuit count and verify the mating half before specifying the harness. Select the terminal by conductor size and contact geometry for the finished cable assembly.
| Centerline | 2.5 mm |
|---|---|
| Positions | 2 to 15 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Wire range | 30–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
