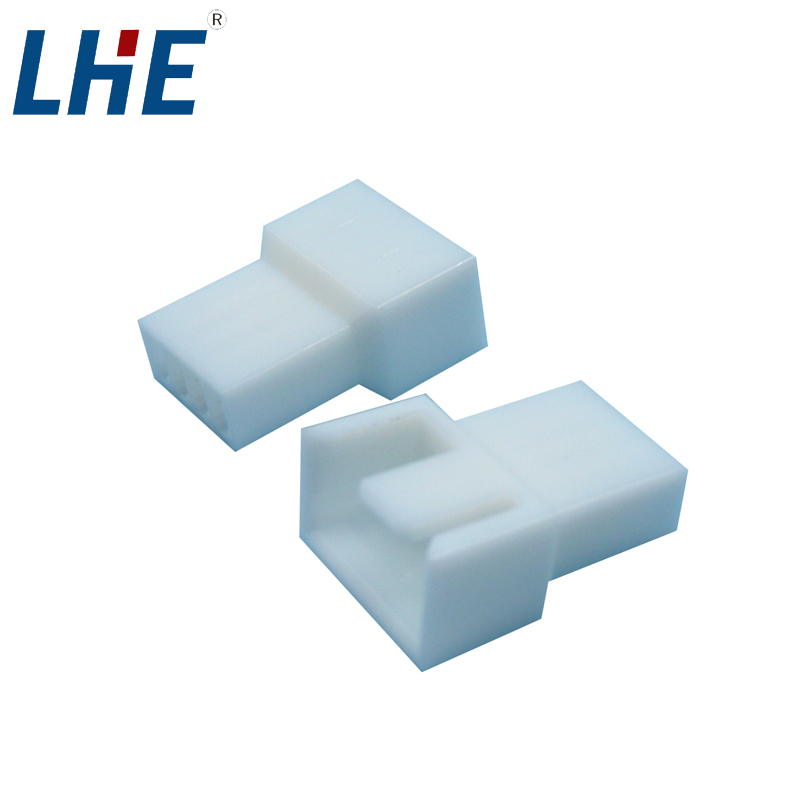

C2505 and C2506 2.5 mm wire-to-wire connectors cover compact single-row cable assemblies in 2, 3 and 4 positions. Nylon 66 UL94V-0 housings are paired with matching terminal choices for cable assemblies, with model ratings of 2 or 3 A per contact.

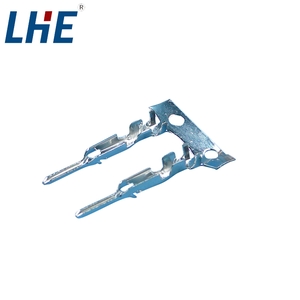

Choose the housing by circuit count, then select the matching TP terminal where a crimp contact is required.
| Centerline | 2.5 mm |
|---|---|
| Positions | 2 to 4 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Contact rating | 2–3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Wire range | 28–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
