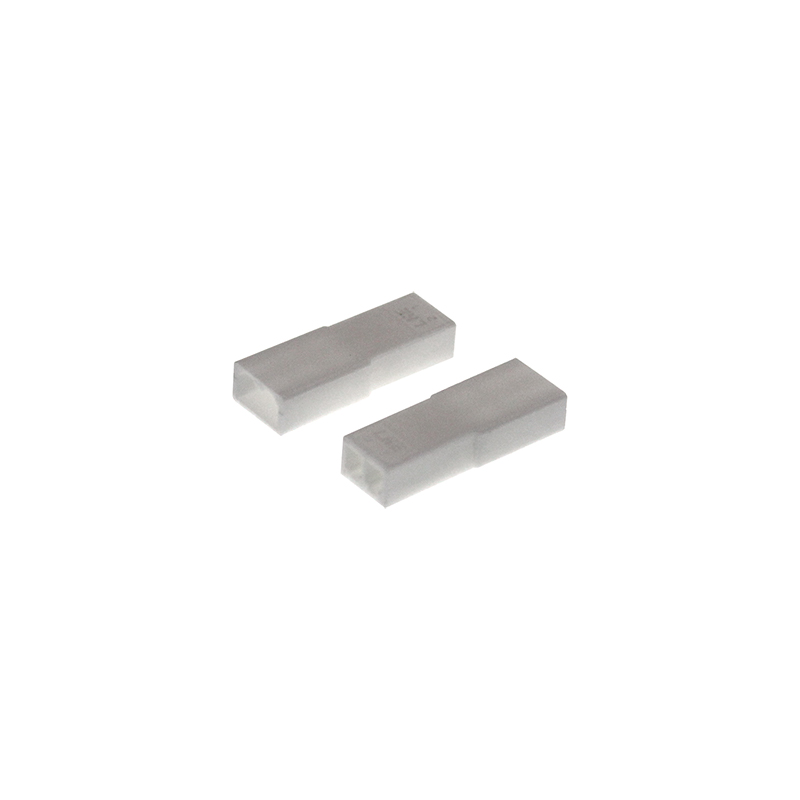

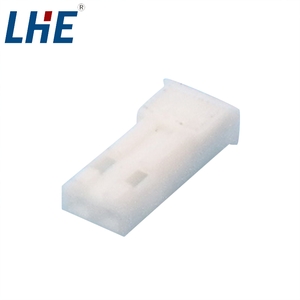

C2503 and C2504 2.5 mm wire-to-wire connectors form a compact two-position cable-to-cable set with housing and terminal choices. The housing uses nylon 66 UL94V-0 insulation, while the matching contact format supports a 3 A per-contact rating.
Select the C2503 or C2504 housing for the required mating half and pair it with the C2504-TP terminal. Confirm contact orientation and crimp dimensions against the model drawing before production.
| Centerline | 2.5 mm |
|---|---|
| Positions | 2 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Wire range | 28–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
