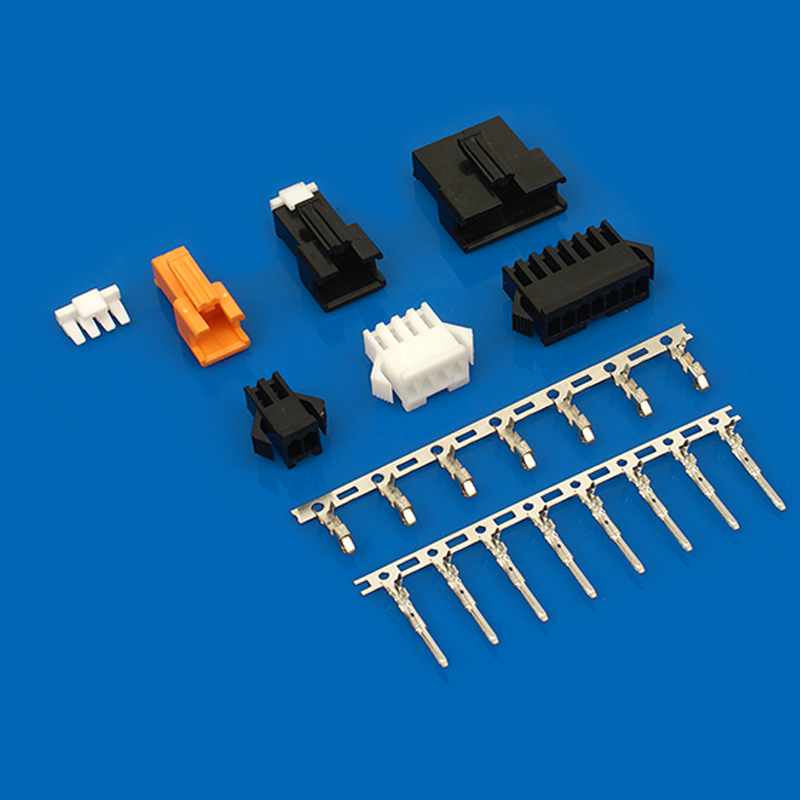

C2501 and C2502 2.5 mm wire-to-wire connectors support compact cable-to-cable assemblies across single- and double-row housing formats. The family combines housing variants from 2 to 24 positions with matching terminal models.
Select the C2501 or C2502 model by the required housing, position count, and row arrangement. Confirm the mating orientation and terminal fit on the applicable model drawing.
| Centerline | 2.5 mm |
|---|---|
| Connector system | Wire-to-Wire |
| Positions | 2 to 24 |
| Rows | Single or double row |
| Housing material | Nylon 66 UL94V-0 |
| Model references | C2501 and C2502 housing and terminal formats |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Maximum current per contact | 3 A |
| Maximum voltage | 250 VAC/DC |
| Suitable wire range | 28–22 AWG |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
