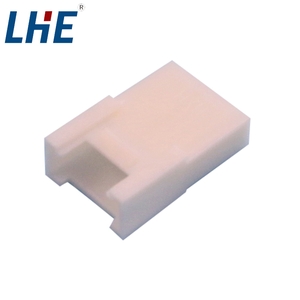

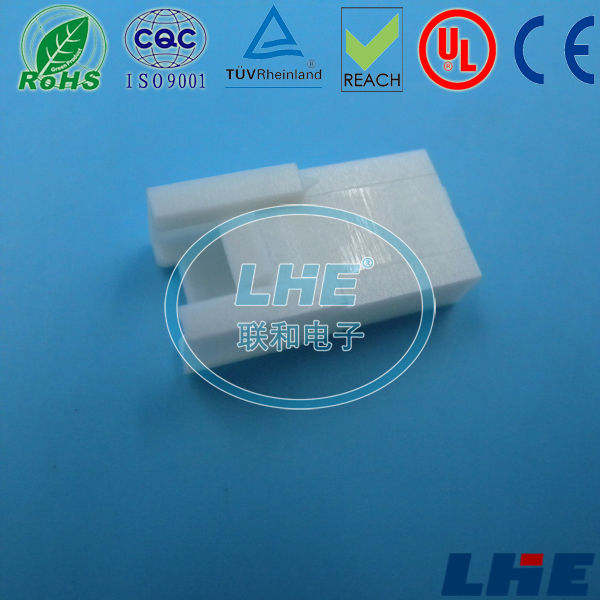

C2004 2.0 mm wire-to-wire connectors provide a single-row housing family for compact cable assemblies, with matching terminal options and model-specific mating orientations. Nylon 66 UL94V-0 insulation is used across the housing variants.
Start with the required C2004 position count, then verify the C2005 terminal and mating orientation where the assembly uses that component. Match the chosen contact format to the wire range shown for the individual model.
| Centerline | 2.0 mm |
|---|---|
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 3 A per contact |
| Maximum voltage | 250 VAC/DC |
| Operating temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Suitable wire range | 28–22 AWG |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
