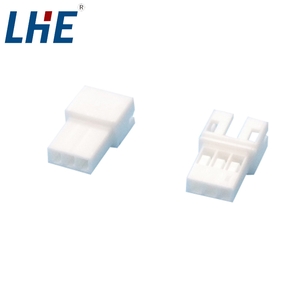

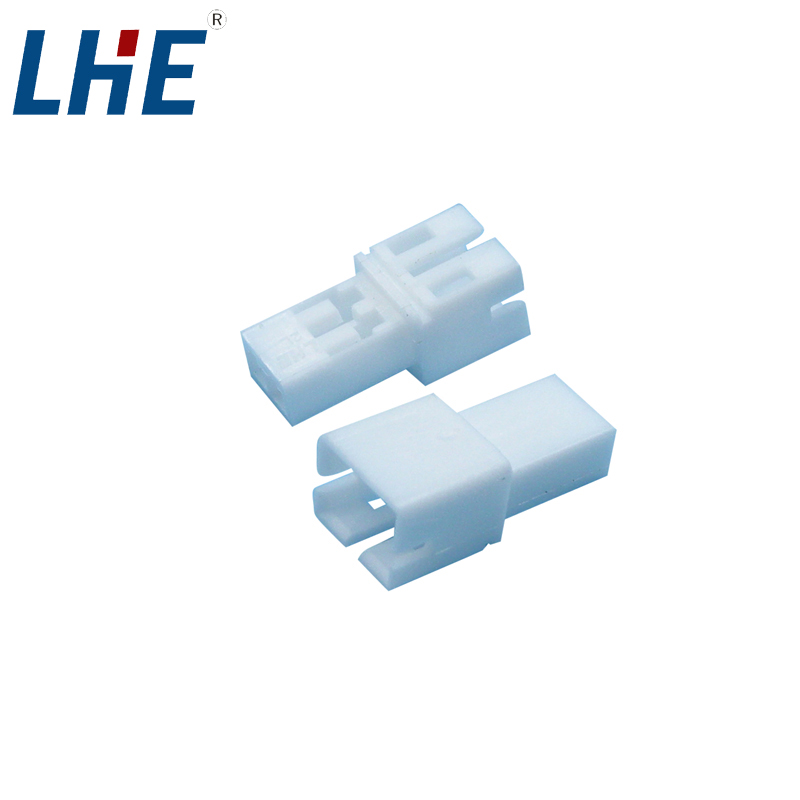

C2003 2.0 mm wire-to-wire connectors combine single-row nylon 66 UL94V-0 housings with a matching crimp-terminal format for compact cable assemblies. Model-specific position choices let the harness designer select the required circuit count without changing the connector family.
Choose the C2003 housing by position count and confirm the mating direction and terminal interface on the applicable model drawing. The matching terminal provides the contact material and plating specified for the cable assembly.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 2.0 mm |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 2 A per contact |
| Maximum voltage | 125 VAC/DC |
| Temperature | -25 °C to 105 °C |
| UL file | E364711 |
| Suitable wire range | 28–24 AWG |
| Contact metal | Phosphor Bronze |
