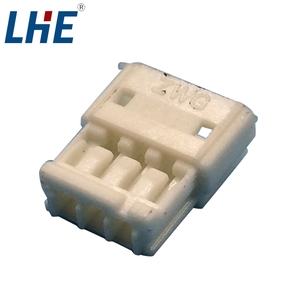

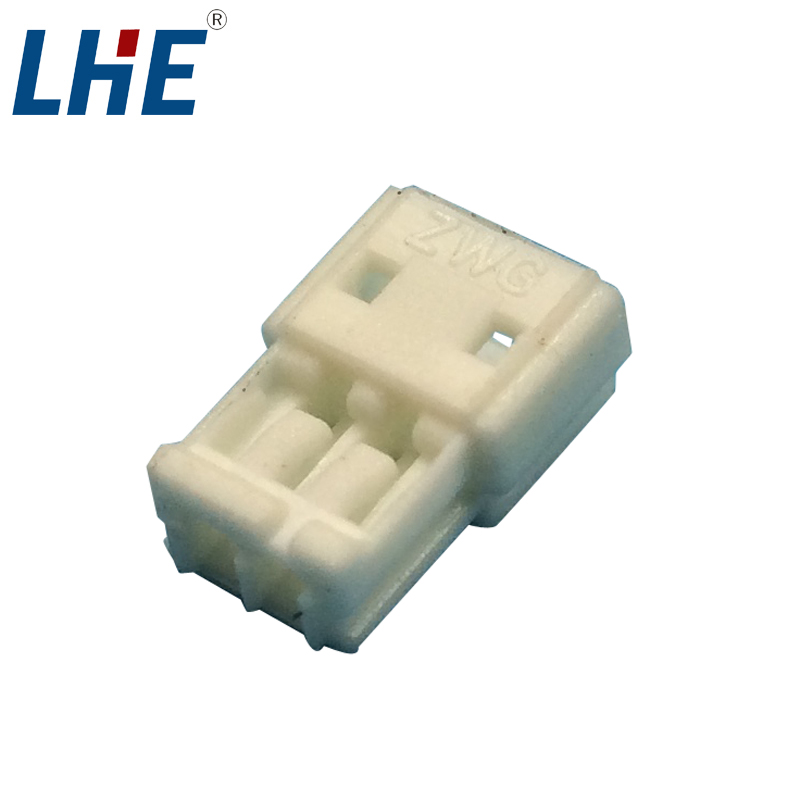

C1501 1.5 mm wire-to-wire connectors support compact cable assemblies with single-row housings and a matching crimp terminal. Position options run from 2 to 7, while nylon 66 UL94V-0 insulation provides a consistent housing material across the family.
Select the housing by the required circuit count, then confirm the corresponding C1501-TP terminal and mating orientation on the model drawing. The single-row layout keeps the connector footprint narrow for routed harnesses.
| Centerline | 1.5 mm |
|---|---|
| Positions | 2 to 7 |
| Rows | Single row |
| Housing resin | Nylon 66 UL94V-0 |
| Maximum current | 1 A per contact |
| Maximum voltage | 50 VAC/DC |
| Wire range | 32–22 AWG |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
