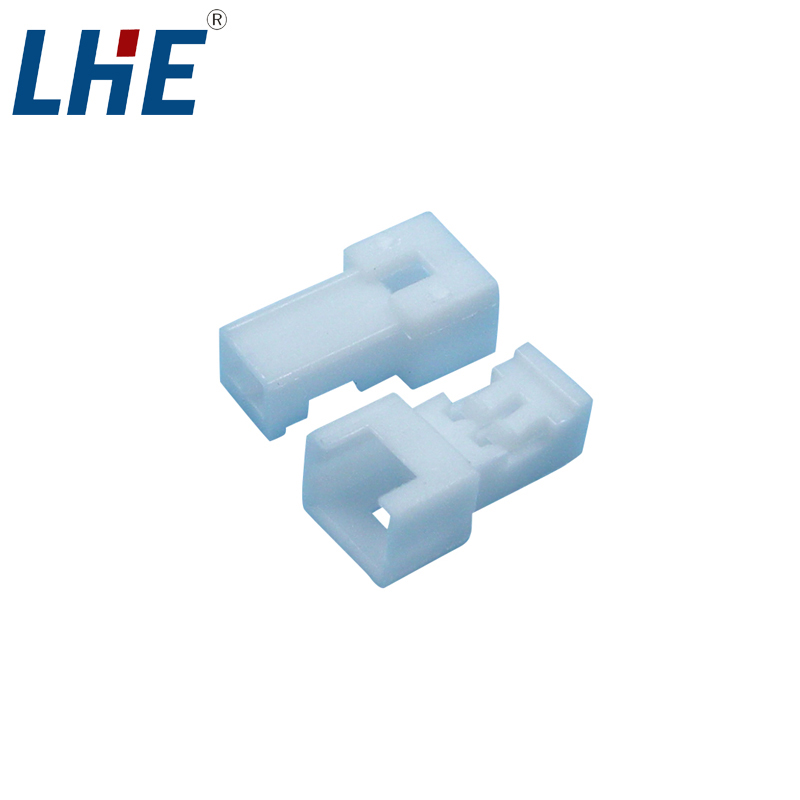

C1251 1.25 mm wire-to-wire connectors provide compact single-row housings for cable-to-cable assemblies. The family includes C1251-H02 through C1251-H15 position variants and the C1251-TP terminal.
Choose the housing by circuit count from 2 to 15 positions. The housings use nylon 66 UL94V-0 insulation; confirm the required position count and terminal arrangement on the applicable model drawing before assembly.
| Centerline | 1.25 mm |
|---|---|
| Connector system | Wire-to-Wire |
| Positions | 2 to 15 |
| Rows | Single row |
| Housing material | Nylon 66 UL94V-0 |
| Model references | C1251-H02 to C1251-H15, C1251-TP |
| UL file | E364711 |
| Operating temperature | -25 °C to 105 °C |
| Maximum current per contact | 1 A |
| Maximum voltage | 125 VAC/DC |
| Suitable wire range | 32–28 AWG |
| Contact plating | Tin Plating |
| Contact metal | Phosphor Bronze |
