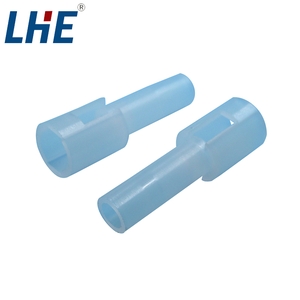

C01581 and C01582 1.58 mm wire-to-wire connectors bring compact housings and matching terminals into one cable-assembly family. The range includes one-position housing variants, tin-plated phosphor bronze contacts and nylon 66 UL94V-0 resin where specified.

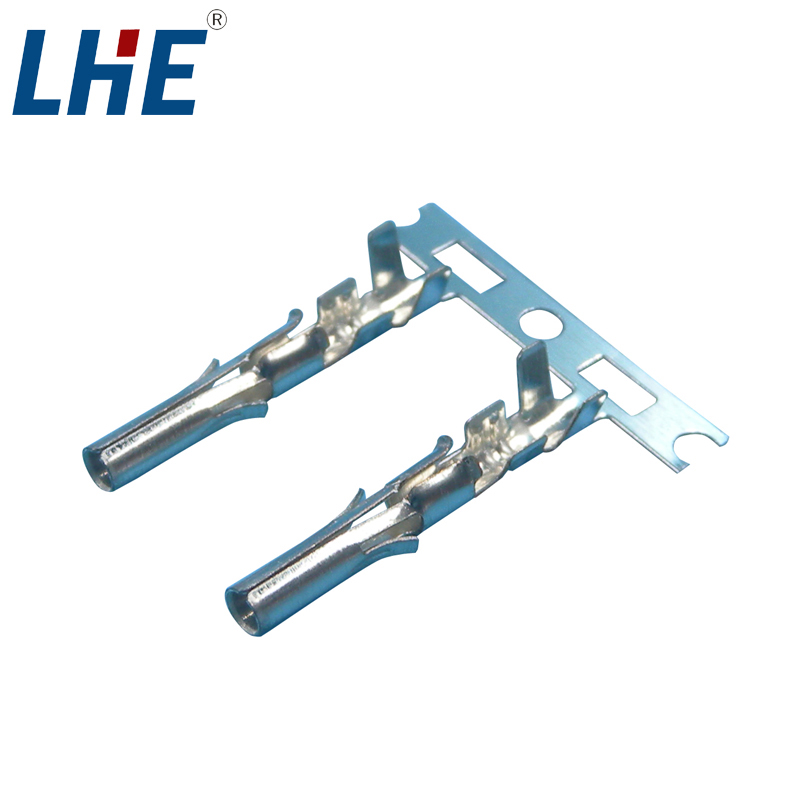

Choose the C01581 or C01582 housing by the required mating format, then pair it with the matching TP terminal. Check the model drawing for the housing orientation and contact interface before releasing a harness design.
| Connector system | Wire-to-wire |
|---|---|
| Centerline | 1.58 mm |
| Positions and rows | 1 position, single row |
| Contact rating | 5 A, 250 VAC/DC maximum |
| Wire range | 24–18 AWG |
| Temperature | -25 °C to 105 °C |
| UL file | E364711 |
